Automatic Tube Laser

1.Professional metal pipe tube laser cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time. 6.500W-4000W wide range power source. 7.Max 30mm cutting thickness.

Product Details

Automatic Tube Laser: Round, rectangle, square, angle, channel and special shaped material

Automatic Tube laser cutting is key strength of Acme Laser as we continue to meet and exceed the demands of our customers fabrication needs with our equipment continued technology advancements, dependability and experience.

I. Main Parts of automatic tube laser



Self-centering Collet Chuck

The collet chucks position and hold your tubes in   place without damaging the materials. The self-centering clamping system with   continuous sensor monitoring adapts to every tube geometry. This means you   benefit from high part precision.

Automatic Tube Laser

Automatic Tube Laser

A Constant View of the Machining Process

With the large window, the machining process of   automatic tube laser is perfectly visible.



Automatic Stepped Rollers

The step rollers support the tubes while also   moving them sideways, and adjust automatically to various diameters.

Automatic Tube Laser

Automatic Tube Laser

Germany PA8000 Control System

The original imported control system is very   stable and reliable. With Acme design of panel surface, it is easy to face   any direction that is convenient for the operator.

3.5 Meters Long Material Unloading Platform

Longer than 2.5 meters standard unloader, this is   very effective for most tube loading. And if necessary, we can add another group   of unloader.

Automatic Tube Laser


II. LASER TUBE CUTTING CAPABILITIES


MATERIAL TYPES

Carbon Steel

A513 tubing, ROPS,    Schedule 30,40,80 pipe

Stainless Steel

300 Series    (301,304,316), 400 Series

Aluminum

Grades 3003, 5052,    6061

MAXIMUM MATERIAL    THICKNESS

Carbon Steel

20mm

Stainless Steel

10mm

Aluminum

8mm

DIMENSIONAL    CAPACITY

Square: Circumscribed Radius less than 110mm

round tubes and    pipes:220mm Radius


III.
features of automatic tube laser


1.  Automatic centering pneumatic chuck made by LGmazak and HAAS.Accuray and quality are guaranteed. Other suppliers buy ready-make electrical chucks which are easy to break in practice.

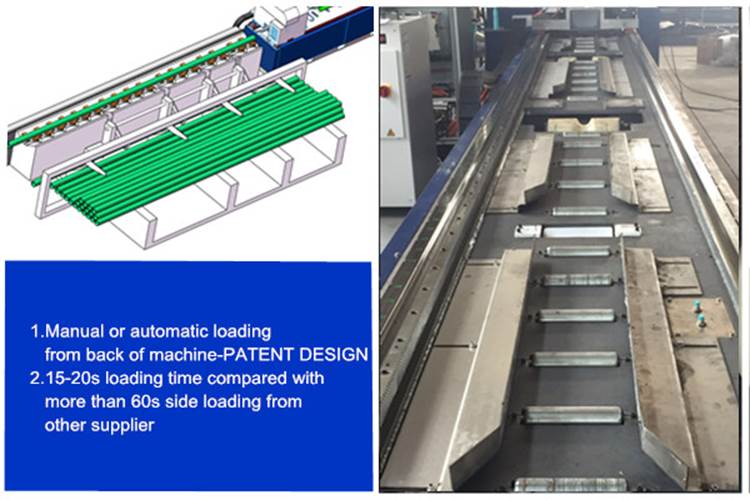

2.  Manual or automatic loading from back of machine—patent design.15-20s back loading time then 60s loading time from side

3.  Germany original PA8000 control system. Other suppliers use Cypcut or Higerman. We have professional nesting software for angle and channel steel cutting.

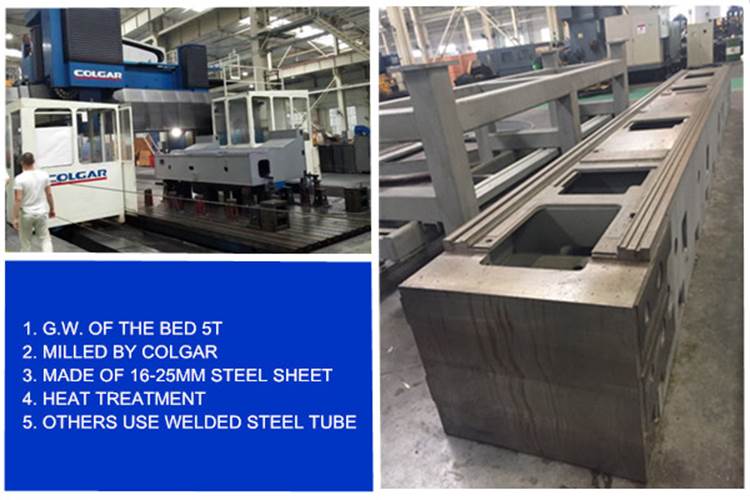

4.  The N.W. of our machine bed is 5t, made of 16-25mm whole sheet of steel with heat and release treatment. Others use welded steel tube machine bed.



Automatic Tube Laser

Automatic Tube Laser

Automatic Tube LaserAutomatic Tube Laser


IV. SAMPLES


Automatic Tube LaserAutomatic Tube LaserAutomatic Tube Laser

Automatic Tube LaserAutomatic Tube LaserAutomatic Tube Laser



V. More options


Automatic Tube Laser

Automatic Tube Laser

VI. FACTORY REVIEW

20000 SQUARE METER FACTORY

Automatic Tube Laser


ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS


Automatic Tube Laser
