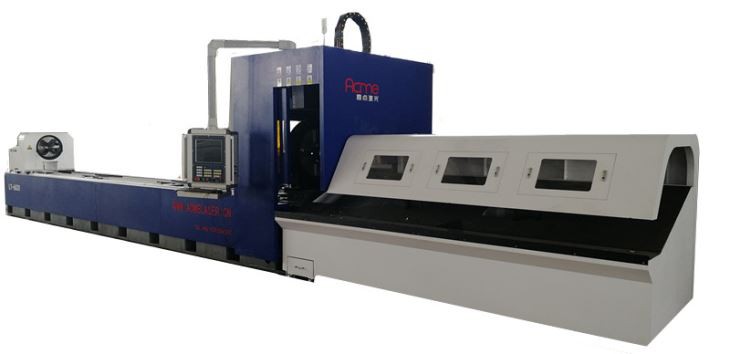

China Factory Tube Laser Machine Fiber Uploading Tube From Back

IPG/RAYCUS/MAX Laser Source 500w-6000w
Standard Configuration in Laser Industry
Highest Precision Machining Center for Bed and Chuck
Professional and Mature After-Sales Service from English-Speaking Engineers
OEM Available

Product Details

Fiber Laser Cutting Machines(1)


PRODUCT FEATURE

Material Uploading from Back

Uploading Material

  • 5 pcs of automatically adjustable pneumatic carrier wheel brackets (2 in the front, 3 in the back). It’s suitable for different types of pipes of 20-200mm diameter.

  • Carrier wheel bracket size is adjustable with marking scale.

  • When the worker needs to lift pipe, the corresponding wheel bracket will rise. When the X-axis moves near to the corresponding rack, it will automatically fall down to avoid interference.

  • The unloading feeding system is also equipped with pneumatic carrier wheel bracket. When the required material is hoisted, the corresponding material supporter will rise. When the cutting is complete, the corresponding supporter will automatically fall down, and the material receiving holder has the automatic turnover function.


Machine Bed and Chuck Are Processed by High Precision Machining Center



  • Italy COLGAR Large Gantry Milling Machine - machining 7m-length bed IN ONE GO

  • U.S. Hass, Japan Mazak & Taiwan Winner – upgrade the precision level of the chuck


Gantry Material

Item

Acme

Other Manufacturer

Gantry Material

Cast Aluminium for ALL laser source output powers

>2000w - Cast Aluminium
  <=2000w - Aluminum Alloy


Dust Extraction

Item

Acme

Other Manufacturer

Exhaust Ventilation Way

Exhaust smoke following with the move of cutting head
  ** The price will be lower if changing to exhaust smoke per area

Exhaust smoke per area


Patent: Rear Chuck Loading

Patent Rear - Chuck Loading 2

  • This patent makes it happen that loading tubes when the machine is still working! The operator can load the tubes while the machine is cutting other tubes. It reduces time cost and human cost a lot, and increase production efficiency.


PRODUCT CONFIGURATION

Major Component

Content

Machine Bed

16-25mm Welded Steel Panel

Laser Source

IPG/Raycus/MAX 500w-6000w

Control System

Shanghai Cypcut

Laser Cutting Head

Swiss Raytools

Servo Motor

Japan Yaskawa

Gear Reducer

France Motovario

Rail

Taiwan HIWIN/ Taiwan PMI

Industrial Water Chiller

China Hanli

Helical Rack and Pinion

Taiwan YYC

Chuck

        Front and Back: Automatic Pneumatic Chuck

Loading

    Manual Loading from Back

              (Automatic Loading as Optional Configuration)
