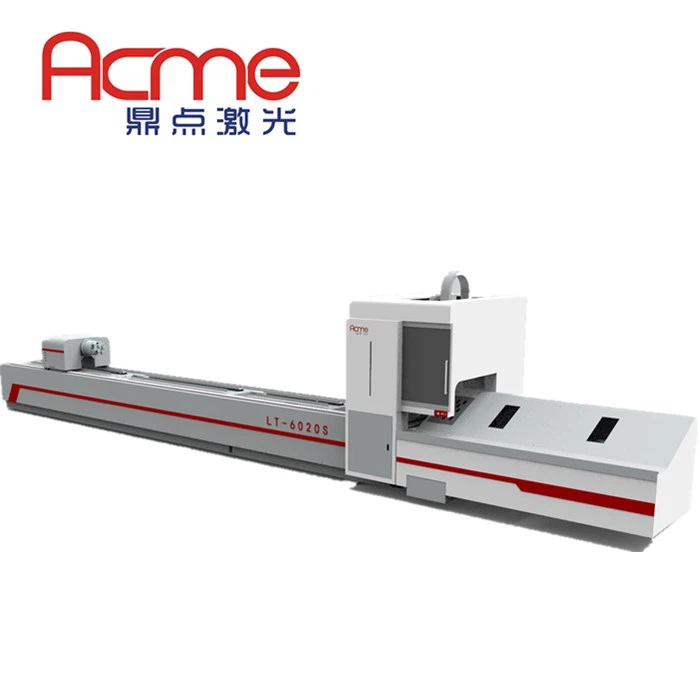

CNC Fiber Laser Metal Pipe/Tube Cutting Machine

8 Tons Machine Structure/Body.
500W-4000W Fiber Laser Source.
Cutting Tube Length 3m-12m.
Tube Circumcircle Diameter Range 20mm-220mm
Double Pneumatic Chuck Auto-Centering
Minimum 180mm Tailing Waste
Patent Design Fast Auto-Feeding System
Professional CYPCUT/PA8000/BECKHOFF CNC Cutting System.
AlmaCAM/Lantek Nesting Software.

Product Details


Fiber laser cutting machine, as a replacement equipment for the traditional way to process metal material, has a huge demand. Because it's improve production efficiency, reduce production costs and improve products quality.

ACME CNC fiber laser metal pipe/tube cutting machine is designed for professional cutting and processing metal tubes. Bring high cutting precision and fast cutting speed in pipe tube process area. It can cut off, make holes, cut any pattern on tube surface in one time. So it can save time and labor, make more value for you.


LT-6020 Series

LT-6020 series is the professional metal tube laser cutting machine. It has three models: LT-6020, LT-6020S, LT-6020D, to meet your difference cutting requirements.


Tube Laser Cutting Machine LT-6020 Series ACME.jpg


Main Technical Parameter Compare

NO

     ITEM

LT6020

HIGH SPEC.

LT6020S

MEDIUM SPEC.

LT6020D

LIGHT SPEC.

1

CONTROL SYSTEM

GERMANY PA8000

CYPCUT

CYPCUT

2

LASER SOURCE

IPG

RAYCUS

RAYCUS

3

LASER HEAD

Raytools

Raytools

Raytools

4

SERVO MOTOR

YASKAWA

YASKAWA

FUJI

5

CHUCK

TYPE

DOUBLE PNEUMATIC CHUCKS DOUBLE ACTION

AUTO CENTERING

DOUBLE PNEUMATIC CHUCKS DOUBLE ACTION

AUTO CENTERING

FRONT:MECHANICAL

BACK: PNEUMATIC

DIAMTER(mm)

φ20-φ220

φ20-φ220

φ20-φ220

6

REDUCER

MOTOVARIO

MOTOVARIO

CHINESE BRAND

7

POSITIONING ACCURACY

±0.03/1000mm

±0.04/1000mm

±0.05/1000mm

8

REPEAT POSITIONING ACCURACY

±0.02

±0.03

±0.05

9

NESTING SOFTWARE

ALMACAM

LANTEK

NONE

10

MATERIAL LIFT

REDUCING WHEEL

NYLON BOARD

PNEUMATIC

11

LOADING

BACK OR SIDE LOADING

BACK OR SIDE LOADING

SIDE LOADING

12MACHINE STRUCTURE/BODYHEAVY DUTY 16-20MM WHOLE STEEL PLATE OVERALL WELDED,HEATING,ANNEALING,SAND BLASTING,ROUGHING,PRECISION MACHINING,MILLING ETC.A SERIES OF FINISH MACHINING
MEDIUM DUTY 12-16MM WHOLE STEEL PLATE OVERALL WELDED,HEATING,ANNEALING,SAND BLASTING,ROUGHING,PRECISION MACHINING,MILLING ETC.A SERIES OF FINISH MACHININGSTEEL PIPE WELDED MACHINE BODY

13

G.W.

12 ton

8 ton

4 ton

Tube Laser Machine Cutting Sample.jpg
1. Free sample cutting,

For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting ,or send sample to you check cutting quality.

2. Customized machine design

According to customer’s application, we revise our machine accordingly for customer's requires.

can customized Max 12000mm cutting length, pipe Diameter 500mm chuck for clients.

3. Combination with other cutting system

We can also combination our laser system with traditional cutting system like Plasma system, let you have 2 cutting systems in one machine.

4. What Machine Can Do

High Precision Cutting and Processing Metal Pipe Tubes for Carbon steel, Stainless steel, Aluminium, Brass, Copper, Galvanized Steel and other metal materials.

Round, Rectangular, Square, Oval, Triangle, Angle Steel, Channel Steel and other kinds tube shapes.


PATENT,CE,FDA Certificate



EXHIBITION SHOWS

Pipe Laser Cutting Machine CUSTOMER AND EXHIBITION.jpg


ACME CNC, YOUR TUBE LASER CUTTING EXPERT!
