CNC Fiber Laser Tube Cutting Machine

CNC Fiber Laser Tube Cutting Machine

1.Professional metal pipe tube cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time.

Product Details

ACME tube laser cutting machineLT-6020 adopts most sophisticated fiber laser IPG/Rayucs,combining high strength welding body. After high temperature annealing and precision machining by large CNC milling machine GOLGAR, it has good rigidity and stability with imported high precision and high speed, linear guide drive,high-speed servo motor.It is mainly for cutting tube under 25mm metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel,carbon steel,alloy,brass,copper, titanium and other metal materials precision cutting. It is widely used in metal products,bicycle, metal furniture,fitness equipment,sports equipment,farm machinery,display shelf,fire control.

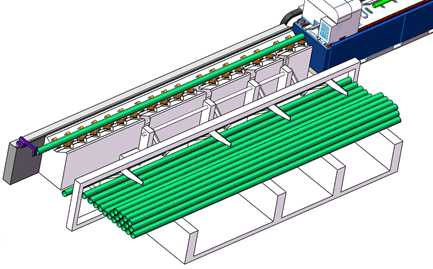

I. Automatic Bundle Loader

1.Automatic bundle loader for option. Saving labor and loading time, achieving mass production purpose

2.Round pipe, rectangular pipe and other pipes can be fully automated loading, without manual

3.Intervention. Other shapes pipe can be semi-automatic feeding artificially.

4.Max Loading Bundle 800×800mm

5.Max Loading Bundle Weight 2500kg



II. automatic bundle loading from behind



It has better efficiency in loading time than side   loading


III. Advantage

ACME Fiber Laser brings a cost effective, low-maintenance, low operating cost and environ-mentally friendly solutions to your organization.

• Manufactured by people who use their own machines.

• The resonator comes with a 100,000 hour (more than 5 years) warranty from the manufacturer (IPG),which also supports cutting high reflective metal materials.

• Higher cutting speeds possible,and high effective cutting ability

• Fiber Laser is extremely efficient, equates to very low power consumption

• Low cost of operation, energy cost reduced, no laser gases requied to produce beam

• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum,Carbon steel,Galvanized steel,Alloy steel)

• Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.

IV. Features


Better Performance, More Rigid and Durable Construction

A. Top quality components
B. Integrated circuit (professional circuit board)
C. Rigid machine tool and mass loading working

Laser Machine High Efficiently
A. Travelling speed increases utmost
B. Cutting software functions improved
C. Nesting software optimized cutting patch (can directly read CAD)
Laser Cutting Machine More Safe and Save Labor
A. Machine structure and electric circuit design and assembly conform with CE and FDA
B. Assistant loading system and wireless remote control handle
C. Lubrication system
Laser Cutting Machine Higher Precision
A. Fully closed loop controlling system
B. Cutting compensation
C. Top accuracy testing device

V. Machine Detail Parts

No.

Name

Brand

1.

Laser Source

Germany IPG

2.

Cutting head

Raytools/Precitec

3.

Cutting system

Germany PA8000, Lantek/Gamma   nesting software

4.

Electrical control

Schneider

5.

Pneumatic Control

SMC or Airtac

6.

Linear guides

Taiwan Hiwin

7.

Gear and rack

Taiwan YYC

8.

AC servo motor and driver

Yaskawa

9.

Reducer

France MOTOVARIO

10.

Chiller

Tongfei

11.

Chuck

Pneumatic chucks, automatic   centering

12.

Dust removal and filtration   devices

Optional

13.

Automatic feeding device

Optional

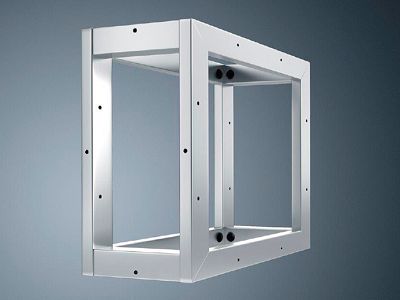

VI.   SAMPLES



VII.  FACTORY REVIEW

20000 SQUARE METER FACTORY

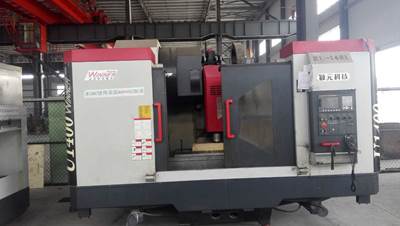

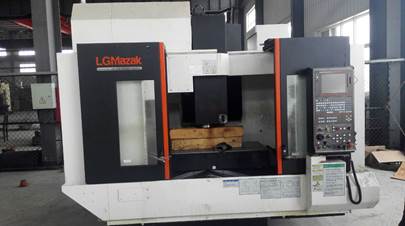

ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
