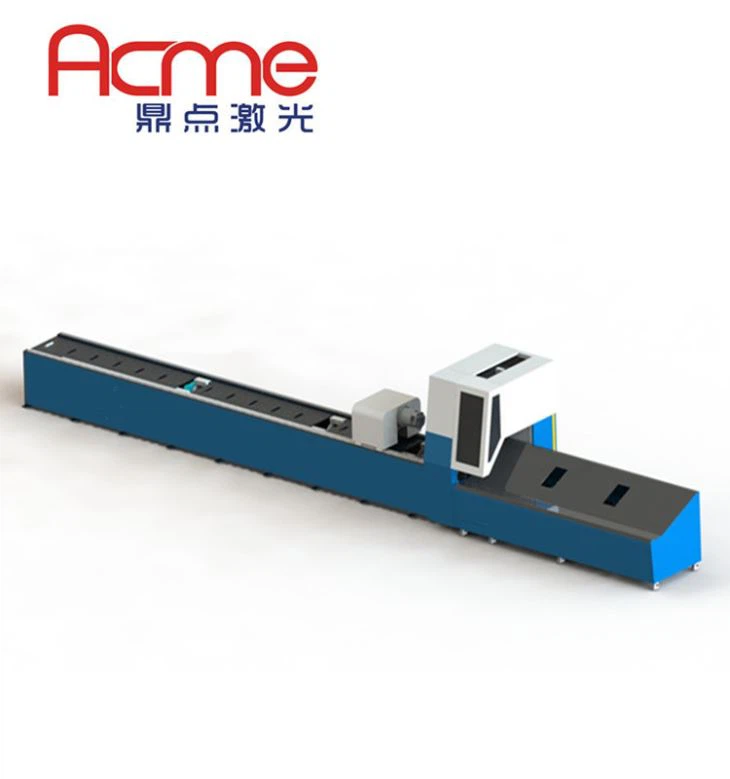

CNC Laser Tube Cutting Machine

1.Professional metal pipe tube laser cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time. 6.500W-4000W wide range power source. 7.Max 30mm cutting thickness.

Product Details

Tubes and profiles are used in many applications, from mechanical engineering and system construction to the furniture industry. Lasers have opened up new design possibilities, so more and more designers are taking advantage of the benefits of laser-cut tubes and profiles in order to considerably increase demand.


Acme cnc laser tube cutting machine takes advantage of the strengths of solid-state lasers in a way that no other machine ever has before. For you as a user, this means short processing times for a large range of possible tubes and profiles.



I. Details


Self-centering Collet Chuck

The collet chucks position and hold your tubes in   place without damaging the materials. The self-centering clamping system with   continuous sensor monitoring adapts to every tube geometry. This means you   benefit from high part precision.

A Constant View of the Machining Process

With the large window, the machining process is   perfectly visible.


Automatic Stepped Rollers

The step rollers support the tubes while also   moving them sideways, and adjust automatically to various diameters.

Germany PA8000 Control System

The original imported control system is very   stable and reliable. With Acme design of panel surface, it is easy to face any   direction that is convenient for the operator.

3.5 Meters Long Material Unloading Platform

Longer than 2.5 meters standard unloader, this is   very effective for most tube loading. And if necessary, we can add another group   of unloader.


Metal pipe laser cutting machine are designed for high production tube fabrication. They provide efficient processing of round, rectangular, square or other standard tube profiles at optimal speeds using a fiber laser. The integration of leading-brand components assures you of top performance and high reliability. Machines are engineered for quick set up of different tube sizes and built for ease of service and maintenance.


II. Specifications

Item

Specification

Unite

Machine model

LT-6020

Machining Range

Diameter

φ20~φ220

mm

mm

Max.wall thickness

Depending on power of laser resonator

mm

Work Length

6200

mm

Axis Stroke

X axis

6800

mm

Y axis

400

mm

Z axis

180

mm

A axis

Nx360

degree

Rapid speed

X axis

100

m/min

Y axis

100

m/min

Z axis

60

m/min

A axis

120

RPM

Positioning Accuracy

±0.03

mm

Repeat positioning accuracy

±0.02

mm

Total Weight

12000

Kg


III.

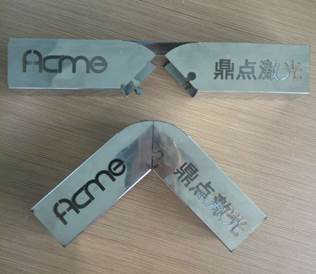

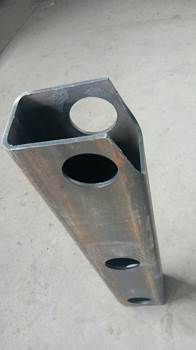

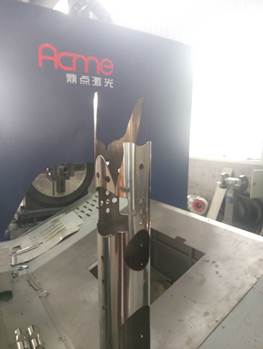

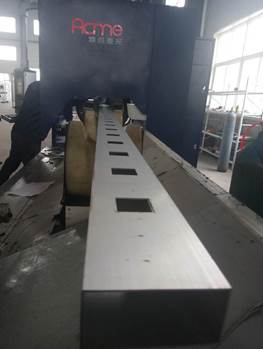

SAMPLES


IV.   FACTORY REVIEW

20000 SQUARE METER FACTORY

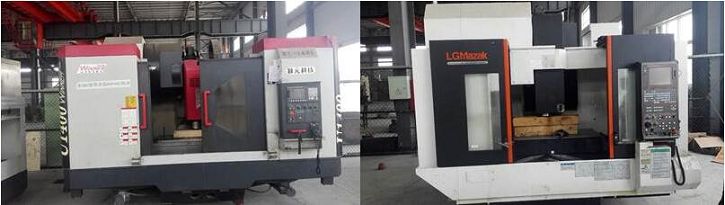

ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
