CNC Pipe Laser Cutting Machine

1.Professional metal pipe tube cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time.

Product Details

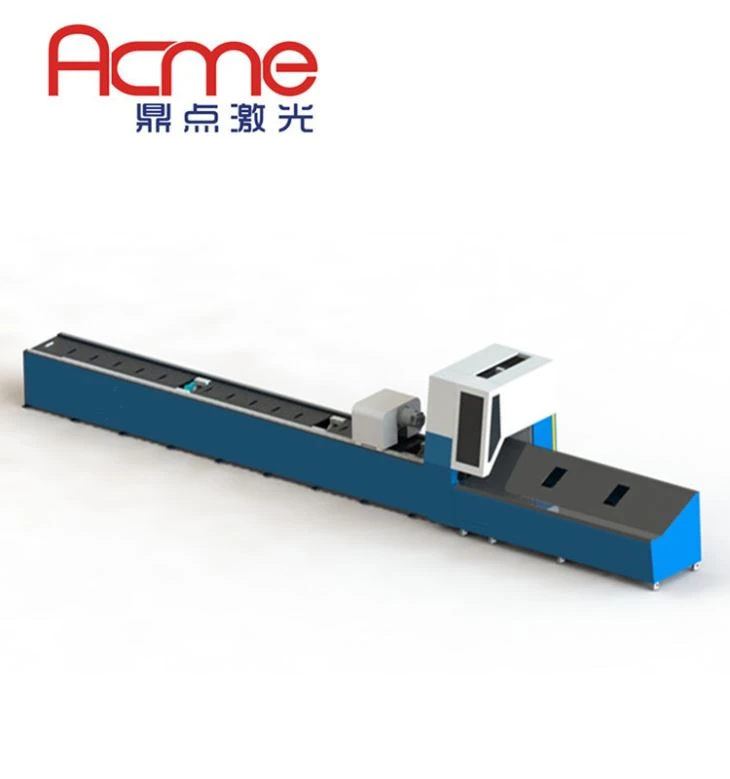

CNC Pipe Laser Cutting Machine

china cnc pipe cutting equipments LT-6020 adopts most sophisticated fiber laser source IPG, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine GOLCAR, it has good rigidity and stability with imported high precision and high speed, linear guide drive, high-speed servo motor. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting tube under 20mm thick metal in high speed and high precision.



I. Automatic Bundle Loader

1.china cnc pipe cutting equipments Automatic bundle loader for option. Saving labor and loading time, achieving mass production purpose

2.Round pipe, rectangular pipe and other pipes can be fully automated loading, without manual

3.Intervention. Other shapes pipe can be semi-automatic feeding artificially.

4.Max Loading Bundle 800×800mm

5.Max Loading Bundle Weight 2500kg



CNC Pipe Laser Cutting Machine


II. automatic bundle loading from behind

CNC Pipe Laser Cutting MachineCNC Pipe Laser Cutting Machine





It has better efficiency in loading time than side   loading


III. dynamic air chuck

1.Chuck by changing the gas path, the usual four-jaw chuck linkage,optimization Cheng stroke power chuck double acting.

2.Cutting different diameters, the shape of the pipe in the travel range (bilateral stroke 80mm), no need to adjust the jaw easy setup and centered.

3.Easy switching of different diameters, a substantial saving setup time.



CNC Pipe Laser Cutting Machine



IV. Integration bed

1.As a whole plate welded bed,

2.Integration bed can better ensure concentricity of equipment, vertical, precision installation fast and efficient.

3.The whole structure is compact precision.

CNC Pipe Laser Cutting Machine



V. PARTS AND SPECIFICATIONS

No.

Name

Brand

1.

Laser Source

Germany IPG

2.

Cutting head

Raytools/Precitec

3.

Cutting system

Germany PA8000, Lantek/Gamma   nesting software

4.

Electrical control

Schneider

5.

Pneumatic Control

SMC or Airtac

6.

Linear guides

Taiwan Hiwin

7.

Gear and rack

Taiwan YYC

8.

AC servo motor and driver

Yaskawa

9.

Reducer

France MOTOVARIO

10.

Chiller

Tongfei

11.

Chuck

Pneumatic chucks, automatic   centering

12.

Dust removal and filtration   devices

Optional

13.

Automatic feeding device

Optional



VI.   SAMPLES


CNC Pipe Laser Cutting MachineCNC Pipe Laser Cutting Machine

CNC Pipe Laser Cutting MachineCNC Pipe Laser Cutting Machine


VII.  FACTORY REVIEW

20000 SQUARE METER FACTORY


CNC Pipe Laser Cutting MachineCNC Pipe Laser Cutting Machine


ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS


CNC Pipe Laser Cutting MachineCNC Pipe Laser Cutting Machine


Hot Tags: CNC pipe laser cutting machine, China, manufacturer, price
