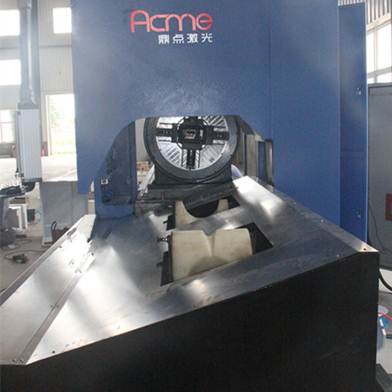

Laser cutting machine for pipe gives designers freedom to easily put any cutout shape into pipe and tubing. Besides eliminating the old drill and saw, this new technology allows for error proof constructing techniques that speed production and reduce cost.
Tolerances on old saw were +/- 1/16", and cut angles were +/- 2 degrees. The tube laser cuts to a true positional accuracy of +/- 0.03mm. This increased accuracy dramatically reduces fit up time at assembly.
Design in New Ways
No longer are you limited to straight cuts or circular holes. Designers can now use the tube laser to cut any shape they can imagine. The possibilities are endless. Examples and pictures of parts designed for the tube laser are listed below.
Huge Cutting Envelope
Shapes that fit inside a 200mm diameter circle up to 6500mm long can be processed on this massive machine. And the size is customizable. Maximum diameter is up to 320mm, length to 10000mm.
II. MACHINE DETAILS
Self-centering Collet Chuck
The collet chucks position and hold your tubes in place without damaging the materials. The self-centering clamping system with continuous sensor monitoring adapts to every tube geometry. This means you benefit from high part precision.
A Constant View of the Machining Process
With the large window, the machining process is perfectly visible.
Automatic Stepped Rollers
The step rollers support the tubes while also moving them sideways, and adjust automatically to various diameters.
Germany PA8000 Control System
The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator.
3.5 Meters Long Material Unloading Platform
Longer than 2.5 meters standard unloader, this is very effective for most tube loading. And if necessary, we can add another group of unloader.
Note: According to market changes, technology upgrades and other reasons, the Company reserves the right to make the necessary changes without affecting the performance of the equipment.
