Laser Tube Cutting

1.Professional metal pipe tube cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time. 6.500W-4000W wide range power source. 7.Max 30mm cutting thickness.

Product Details

Simple to use and manage, extremely robust, designed for high production and less frequent product changes.
  Equipped with a 1 kW fiber source, LT-6020 laser tube cutting is the right   machine for your tubes.

●cut diameters up to ∅ 220 mm

●loading length 6.5 m

●unloading length 3.5

●fiber laser source 1 kW

●cuttable materials: mild steel, stainless steel, aluminium, copper, brass and galvanize

laser tube cutting

laser tube cutting



I. The advantages of fiber laser

1.  Far more efficient with much lower power consumption

The increased electrical efficiency of fiber laser technology compared to CO2 drastically slashes the electrical consumption of the system, yielding savings on the utility bills and on the initial installation due to reduced requirements.



2. Superior performance in thin wall materials

The faster cutting speed of nitrogen assist fiber laser cutting on thin materials more than doubles machine productivity compared to CO2cutting:thinner wall mild steel, stainless steel and galvanized are the materials that benefit the most from fiber laser cutting.



3. Zero laser maintenance required

The fiber laser does not require routine adjustments, component replacement or rebuilds. It does not consume laser gas. Laser beam quality is stable and consistent over time. It is ready to cut as soon as you turn it on. No warm up is required.



4. New materials for new opportunities

Copper and brass, materials that cannot be cut with CO2 technology can be easily cut with fiber laser. Even tricky grades of aluminium and galvanized steel are easily processed.



II.PARTS AND SPECIFICATIONS

No.

Name

Brand

1.

Laser Source

Germany IPG

2.

Cutting head

Raytools/Precitec

3.

Cutting system

Germany PA8000, Lantek/Gamma   nesting software

4.

Electrical control

Schneider

5.

Pneumatic Control

SMC or Airtac

6.

Linear guides

Taiwan Hiwin

7.

Gear and rack

Taiwan YYC

8.

AC servo motor and driver

Yaskawa

9.

Reducer

France MOTOVARIO

10.

Chiller

Tongfei

11.

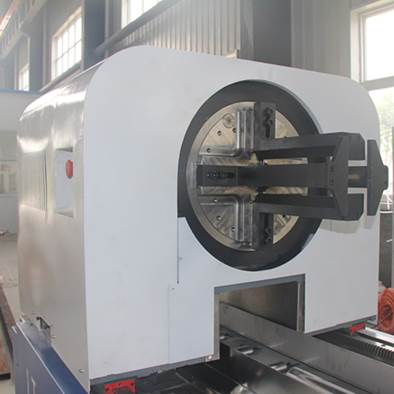

Chuck

Pneumatic chucks, automatic   centering

12.

Dust removal and filtration   devices

Optional

13.

Automatic feeding from back or   from side

Optional

14.

Seam   detection system

Optional



III.MACHINE DETAILS

laser tube cuttinglaser tube cutting

laser tube cuttinglaser tube cutting

laser tube cuttinglaser tube cutting

laser tube cuttinglaser tube cutting



IV. SAMPLES


 laser tube cutting  laser tube cutting

 laser tube cutting  laser tube cutting



V.  FACTORY REVIEW

20000 SQUARE METER FACTORY


laser tube cuttinglaser tube cutting


ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS


laser tube cuttinglaser tube cutting
