Pipe Laser Cutting Machine

1.Professional metal pipe tube cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time.

Product Details


Pipe laser cutting machine excels for an expanded range of laser-cut tube, pipe and structural applications.  Available with IPG resonator, the Pipe laser cutting machine cuts a wide variety of tubes and pipes including round, square, rectangular and triangular. It can also process I and H beams, C-channel, angle iron and additional user-defined shapes from mild or stainless steel. This extensive range of capabilities makes the machine ideal for many industries and applications.



I.Production Capabilities

Acme LT-6020 Pipe Laser Cutting Machine gives us the flexibility to handle jobs of all sizes. It is a 5-axis machine that makes it possible to produce a wider variety of cuts. The 5-axis technology allows us to create precise angles and beveled edges.

Whether you need a long manufacturing run, a short run for a custom job or just-in-time production, Acme Tube Laser can help. Our laser cutter accommodates tubing in a wide range of sizes. Round, square and rectangular tubes, angle and channel steel and special shapes can be processed using this technology.


II.Reasons to Choose Acme pipe Laser for Laser Tube Cutting

1.  Automatic centering pneumatic chuck made by LGmazak and HAAS.Accuray and quality are guaranteed. Other suppliers buy ready-make electrical chucks which are easy to break in practice.

2.  Manual or automatic loading from back of machine—patent design.15-20s back loading time then 60s loading time from side

3.  Germany original PA8000 control system. Other suppliers use Cypcut or Higerman. We have professional nesting software for angle and channel steel cutting.

4.  The N.W. of our machine bed is 5t, made of 16-25mm whole sheet of steel with heat and release treatment. Others use welded steel tube machine bed.


III.     PARAMETERS

No.

Item

Parameter

1.

Maximum Travelling speed

70m/min

2.

Laser wavelength

1070-1080 nm

3.

Minimum cutting width

0.2mm

4.

Rated output power

10--100% (100W-1000W)

5.

X And Y axis positioning accuracy

≤±0.03㎜

6.

Repeat positioning accuracy

≤±0.02㎜

7.

Available cut pipe shape

Round tube, square tube,   rectangular tube

Oval tube, fan-shaped tube and so   on

image002.png image002.png image004.png image005.png


8.

Acceleration

1G

9.

Oiling systems

Automatic oiling

10.

Tail(Waste) length

200-250mm

11.

Effective length of cutting

6000mm/8000mm/10000mm(customize   dorder acceptable)

12.

Size

11*3.9*2.5m (Length * width *   height)

13.

Power

35KW

14.

G.W.

10 Ton

15.

Power supply

380v50Hz ±10%

16.

Red Positioning

Yes

17.

Auxiliary gases

Oxygen, nitrogen, air

18.

Supported file formats

IGS (Available PRO/E. UG, Solid works Photo)

19.

Diameter

20mm-200mm (customized   order acceptable)

20.

Laser tracking system

Automatic follow-up

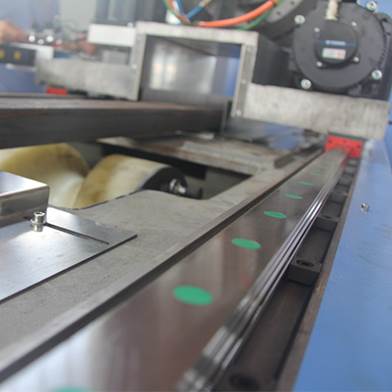

IV.   MACHINE DETAILS


V.SAMPLES







VI. More choices of tube laser

LT-6020

LT-6020D

LT-6020S




Note: According to market changes, technology upgrades and other reasons, the Company reserves the right to make the necessary changes without affecting the performance of the equipment.
