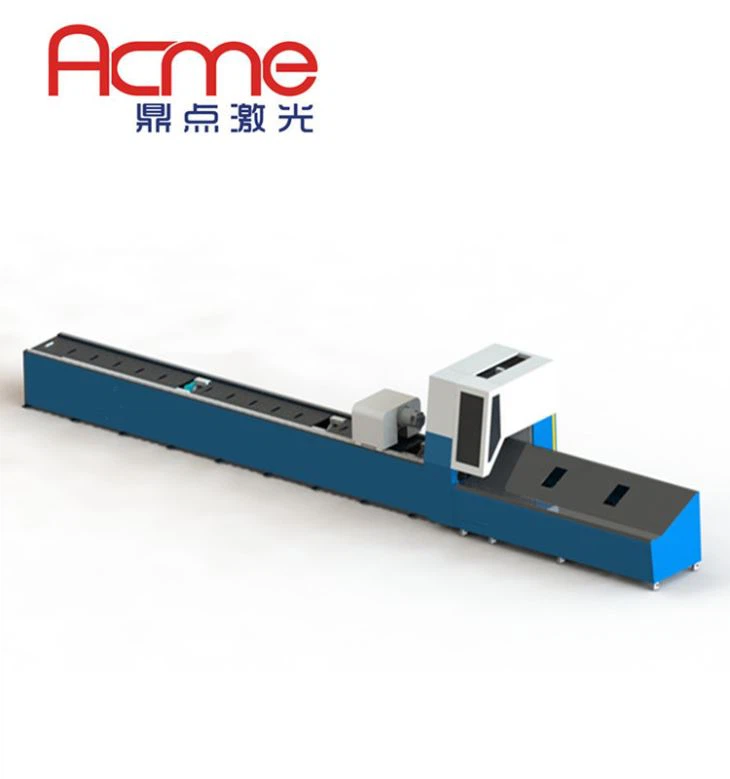

Steel Pipe Laser Cutting Machines

1.Professional metal pipe tube laser cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time. 6.500W-4000W wide range power source. 7.Max 30mm cutting thickness.

Product Details


steel pipe laser cutting machines


I. Characteristics


No.

Material

carbon steel, mild    steel, stainless steel,aluminum, copper, brass, titanium etc

 1

Technology

fiber laser

 2

Cutting Product

metal pipe, tube,    angle steel, channel steel

 3

Control Type

CNC

 4

Laser Power

700w-4000w

 5

Application

Motor Homes
     Truck Parts/Car Kits
     Ice Makers/Coffee Makers
     Luggage Carts
     Hospital Beds
     Motorcycle Parts
     Skid Loaders
     Track Vehicles

Engine Parts
     Commercial Sweepers
     Handles/Handlebars Snowmobiles
     Grounds Keeping Equipment
     Tractor Parts
     Chair

Refrigeration Parts
     Playground Equipment
     Exercise Equipment
     Pressure Washers
     Generators
     Retail Displays
     Frames/Water Tubes/Heat Exchangers


II.
KEY FEATURES

●  automatic bundle loading system

●  self-centering automatic chuck clamping system

●  advanced layout system

●  high precision, stability and efficiency



III. PARAMETERS


No.

Item

Parameter

1.

Maximum Travelling speed

70m/min

2.

Laser wavelength

1070-1080 nm

3.

Minimum cutting width

0.2mm

4.

Rated output power

10--100% (100W-1000W)

5.

X And Y axis positioning accuracy

≤±0.03㎜

6.

Repeat positioning accuracy

≤±0.02㎜

7.

Available cut pipe shape

Round tube, square tube,   rectangular tube

Oval tube, fan-shaped tube and so   on

 image003.png image004.png image005.png image006.png


8.

Acceleration

1G

9.

Oiling systems

Automatic oiling

10.

Tail(Waste) length

200-250mm

11.

Effective length of cutting

6000mm/8000mm/10000mm(customize   dorder acceptable)

12.

Size

11*3.9*2.5m (Length * width *   height)

13.

Power

35KW

14.

G.W.

10 Ton

15.

Power supply

380v50Hz ±10%

16.

Red Positioning

Yes

17.

Auxiliary gases

Oxygen, nitrogen, air

18.

Supported file formats

IGS (Available PRO/E. UG, Solid works Photo)

19.

Diameter

20mm-200mm (customized   order acceptable)

20.

Laser tracking system

Automatic follow-up

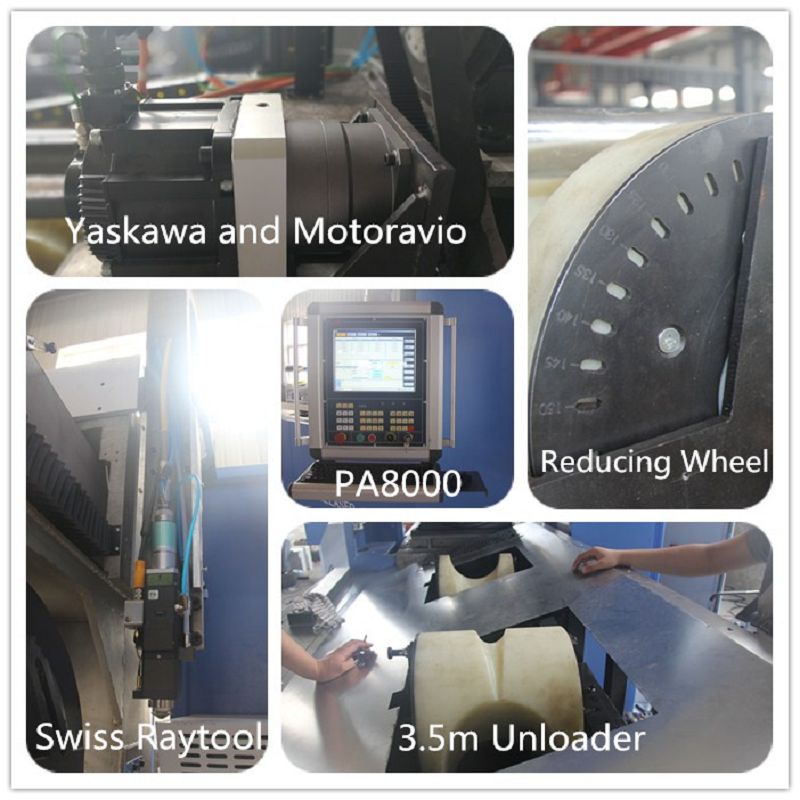

IV.MACHINE DETAILS

Steel Pipe Laser Cutting Machines

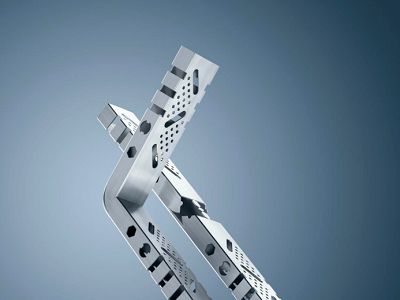

V. SAMPLES

Steel Pipe Laser Cutting Machines Steel Pipe Laser Cutting Machines

Steel Pipe Laser Cutting Machines Steel Pipe Laser Cutting Machines



VI.FACTORY REVIEW for steel pipe laser cutting machines

20000 SQUARE METER FACTORY


steel pipe laser cutting machinessteel pipe laser cutting machines


ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS


steel pipe laser cutting machinessteel pipe laser cutting machines
