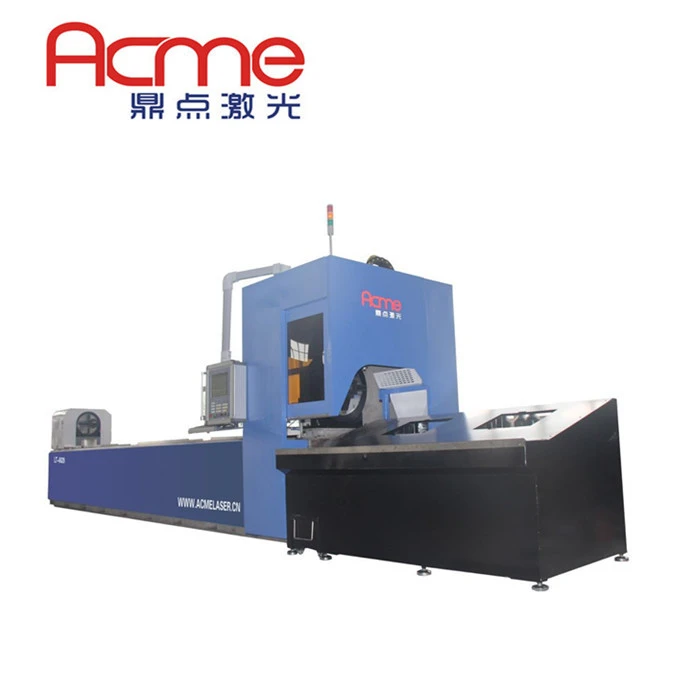

Tube Fiber Laser Cutter Machine

1.Professional metal pipe tube cutting machine. 2.High cutting precision and speed. 3.All kinds of tube shapes. 4.Strong machine body never deformation. 5.Patent automatic loading system, only about 15s loading time. 6.500W-4000W wide range power source. 7.Max 30mm cutting thickness.

Product Details


Thanks to the versatility of its advanced 2 kW IPG fiber laser source, Tube Fiber Laser Cutter can now efficiently process highly reflective materials such as brass, copper and aluminum. It also exhibits superior cutting characteristics with galvanized steel and has registered considerable productivity increases in the cutting of thin-walled tubes.

Tube Fiber Laser Cutter  provides a dramatic improvement in energy efficiency when compared to the more traditional CO2 resonator, leading to as much as a 50% reduction in the hourly operating cost. Coupled with that savings is the elimination of routine resonator maintenance and optical beam alignments.

The new Tube Fiber Laser Cutter system LT-6020 accommodates tube up to 200mm in diameter with maximum raw tube lengths of 6000 to10000 mm, depending on the configuration chosen. The machine’s bundle loader and automatic unloader enhance speed and improve productivity. Automated changeover to different size tubes occurs in as little as three minutes.

The entire process is driven by the user-friendly programming software package that includes direct import of three dimensional CAD data, simulation, cycle time generation and advanced off-line nesting software, all helping to reduce set up time and eliminate scrap.

I. KEY FEATURES

●  Automatic set-up and run

●  Round, rectangular, square and other profiles are standard

●  Standard components for easy service and maintenance

●  Random standard length

●  2kW IPG resonator

●  Lantek programming software



II. PERFORMANCE-ENHANCING OPTIONS

●  Seam detection system

●  Outfeed conveyor system

●  Back loading system



III.SPECIFICATIONS


NO

ITEM

LT-6020
     HIGH    SPEC.

LT-6020S
     MEDIUM    SPEC.

LT-6020D
     LOW    SPEC.

1

CONTROL SYSTEM

GERMANY PA8000

CYPCUT

CYPCUT

2

LASER SOURCE

IPG1000W

RAYCUS 1000W

CHINESE BRAND 1000W

3

LASER HEAD

Raytools

WSX

CHINESE BRAND

4

WATER CHILLER

TONGFEI

BAODIAN

BAODIAN

5

SERVO MOTOR

YASKAWA

PANASONIC

FUJI

6

CHUCK

TYPE

DOUBLE PNEUMATIC    CHUCKS

FRONT:TWO    PAIRS OF CHUCK
     BACK:FOUR    CHUCKS

FRONT:MANUAL
     BACK: FOUR CHUCKS

DIAMTER(mm)

φ20-φ200

φ20-φ200

φ20-φ200

MIN. TAIL LENGTH(mm)

200

200

190

RATED RATATION    SPEED(r/min)

60

40

40

MAX. ROTATION SPEED(r/min)

120

80

80

BEARING CAPACITY(BOTH)

500Kg

500Kg

150Kg

7

X AXIS

TRAVEL

6800mm

6800mm

6800mm

NO-LOAD RATED SPEED
     (m/min)

57

43

43

NO-LOAD MAX. SPEED
     (m/min)

100

70

70

8

Y AXIS

TRAVEL(mm)

400

400

400

NO-LOAD RATED SPEED    (m/min)

57

40

40

NO-LOAD MAX. SPEED    (m/min)

100

60

60

9

Z AXIS

TRAVEL (mm)

180

180

180

NO-LOAD RATED SPEED    (m/min)

30

30

30

NO-LOAD MAX. SPEED    (m/min)

60

60

60

10

RAIL

HIWIN

HIWIN

HIWIN

11

TRANSMISSION

HELICAL RACK

HELICAL RACK,
     BALL SCREW

HELICAL RACK,
     BALL SCREW

12

REDUCER

MOTOVARIO

MOTOVARIO

CHINESE BRAND

13

POSITIONING    ACCURACY

±0.03/1000mm

±0.04/1000mm

±0.05/1000mm

14

REPEAT POSITIONING    ACCURACY

±0.02

±0.03

±0.05

15

ELECTRICAL PARTS

SCHNEIDER, OMRON

CHINT、OMRON

CHINT

16

PNEUMATICAL PARTS

SMC、AirTAC

SMC、AirTAC

SMC、AirTAC

17

NESTING SOFTWARE

Lantek

NONE

NONE

18

GAS EXTRACTION    SYSTEM

Acme

Acme

Acme

19

MATERIAL LIFT

REDUCING WHEEL

NYLON BOARD

PNEUMATIC

20

LOADING

BACK OR SIDE    LOADING

BACK OR SIDE    LOADING

SIDE LOADING

21

DUST REMOMAL SYSTEM

OPTIONAL

OPTIONAL

OPTIONAL

22

G.W.

12t

8t

4t



IV.  THREE KINDS OF TUBE LASER

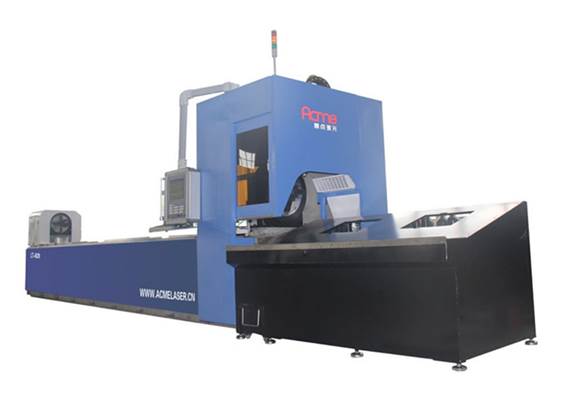

lt-6020

Tube Fiber Laser Cutter Machine

lt-6020S

Tube Fiber Laser Cutter Machine

lt-6020d

Tube Fiber Laser Cutter Machine



V. SAMPLES

Tube Fiber Laser Cutter MachineTube Fiber Laser Cutter Machine

Tube Fiber Laser Cutter MachineTube Fiber Laser Cutter Machine



VI.FACTORY REVIEW

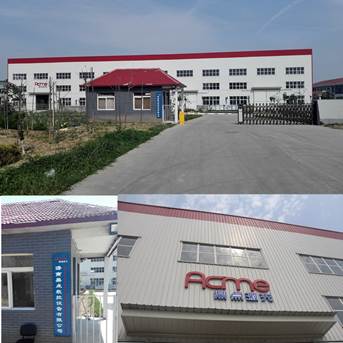

20000 SQUARE METER FACTORY

Tube Fiber Laser Cutter MachineTube Fiber Laser Cutter Machine

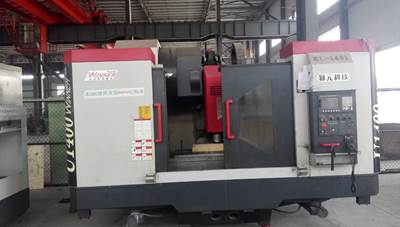

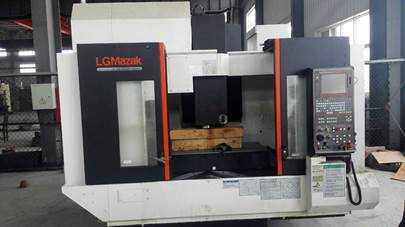

ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS

Tube Fiber Laser Cutter MachineTube Fiber Laser Cutter Machine


Hot Tags: tube fiber laser cutter machine, China, manufacturer, price
