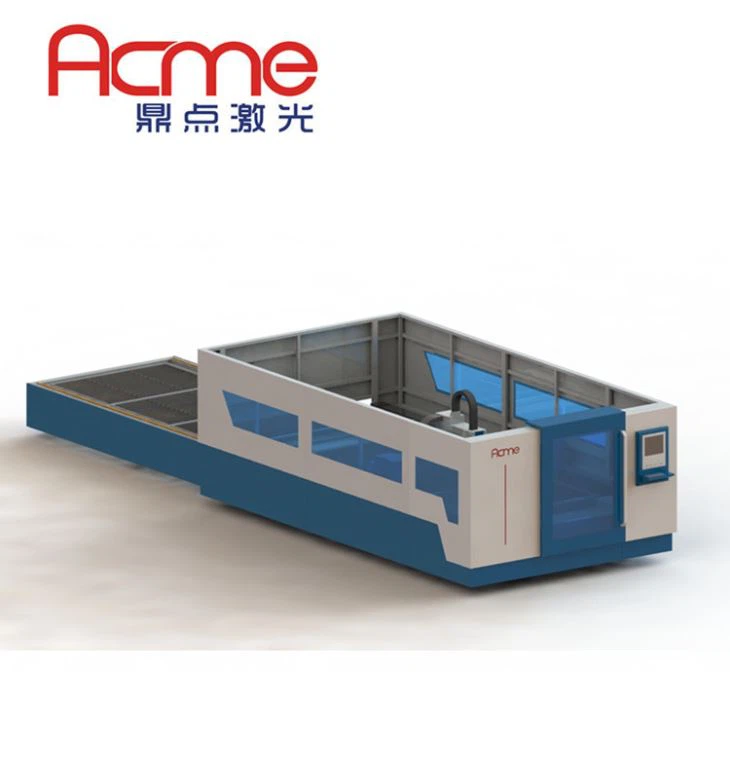

Laser Fiber Cutting Machines

1.Professional metal sheet laser cutting machine. 2.High cutting precision and speed. 3.CS,SS,MS,AL,CU all kinds of metal material. 4.Strong machine body never deformation. 5.500W-4000W wide range power source. 6.Max 30mm cutting thickness. 7.High energy conversion(more than 25%),low maintenance cost.

Product Details

I Introduce & Feature

500W Laser fiber cutting machines Cutting maximum 6mm carbon steel, 3mm stainless steel, 1mm aluminum, 1mm brass, 0.5mm copper. Open type is easy and convenient for uploading and unloading. Drawer collecting device makes receiving materials more convenient. IPG/Raycus fiber laser generator, low operation and maintenance cost. High accuracy and high efficiency during high speed cutting.



II Technical Parameters

Cutting speed, acceleration

0-50m/min

0-3000mm/s2

Air-way speed, acceleration

0-50m/min

Positioning accuracy

<0.03mm/m

Drive System

Adopt Japan YASKAWA servo motors drive

Transmission

All use high precision helical rack and pinion

Feedback and transport control systems

Dedicated transport and control system

Ventilation system

Fixed lower ventilation

Workbench Type

Rack Workbench

Circuit and protection system

Standard Design


III Cutting parameters


500W

METAL

GAS

THICKNESS

[inches]

[gauge]

[mm]

Mild Steel

oxygen

.1875

7

4.8

Stainless Steel

oxygen

.125

11

3.3

Stainless Steel

nitrogen

.080

14

2

Aluminum

oxygen

.060

15

1.5

Brass

oxygen

.040

19

1


Our advantage


Ø  Whole steel plate weld 16-25mm machine body.

Ø  Milled by COLGAR machine. Heat & Aging treatment.

Ø  Other suppliers normally use pipe weld machine frame.



Ø  Use Germany Original Power Automation PA8000 software.

Ø  Other suppliers normally use Higerman (not original) or Cypcut.



Ø  YASKAWA(Japan) Servo Motor, MOTOREDUCER(France) Gearbox

Ø  HIWIN(Taiwan) Guide Rail, YYC(Taiwan) Gear and Rack etc.

Ø  All the part is world famous brand.


V ACME Factory


20000 SQUARE METER FACTORY

ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
