Metal Sheet Fiber Laser Cutting Machine

1.500W--4000W IPG/Raycus laser source. 2.Single or Double exchange platform for choice. 3.World famous brand components ensure good performance. 4.High cut precision and speed. Good cut surface avoid secondary processing. 5.Photoelectric conversion rate higher than 30%, more power-saving. 6.Almost maintenance-free, Low daily usage costs.

Product Details

Overview

ACME metal sheet fiber laser cutting machines are designed for high precision metal processing. It provide efficient cutting at optimal speed using a fiber laser. The integration of leading-brand components assures you of top performance and high reliability. Machines are engineered for quick set up of different sheet sizes and built for easy of service and maintenance.



Features

  • 500W--4000W IPG/Raycus laser source

  • Single platform or Double exchange platform as option.

  • World famous brand components ensure good performance.

  • High cut precision and speed. Good cut surface avoid secondary processing.

  • Photoelectric conversion rate higher than 30%, more power-saving.

  • Almost maintenance-free, Low daily usage costs.


What machine can do

  • High precision Cutting and Processing Carbon steel, Stainless steel, Aluminium, Brass, Copper,Galvanized Steel and other metal material sheet.

  • High precision cut any pattern with professional software. You can draw it, machine can cut out.


Technical parameters

No.

Item

Parameter

1.

Maximum Travelling speed

70m/min

2.

Laser wavelength

1070-1080 nm

3.

Minimum cutting width

0.2mm

4.

X And Y axis positioning accuracy

≤±0.03㎜

5.

Repeat positioning accuracy

≤±0.02㎜

6.

Acceleration

1G

7.

Oiling systems

Automatic oiling

8.

Cutting Area

1530(1325)/2040/2060/1560/2560

(customize order acceptable)

9.

Size

4.3*3.2 *1.7m (Length * width * height) (1530)

10.

G.W.

6 Ton

11.

Power supply

380v50Hz ±10%

12.

Red Positioning

Yes

13.

Auxiliary gases

Oxygen, nitrogen, air

14.

Supported file formats

IGS (Available PRO/E. UG, Solid works Photo)

15.

Laser tracking system

Automatic follow-up


ACME Factory

20000 SQUARE METER FACTORY

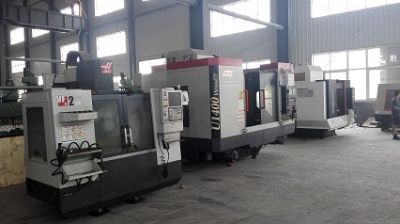

ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
