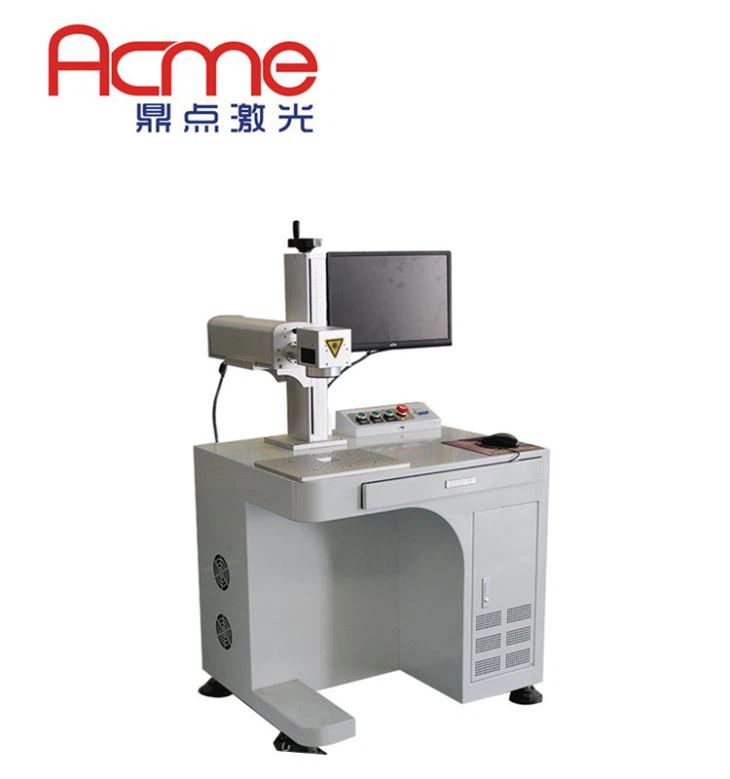

Fiber Laser Marker

Fiber Laser Marker

1.Professional laser marking machine. 2.High precision and speed. 3.Wide range power source and various metal and non-metal application materials. 4.World famous brand components. 5.Different configuration can be customized.

Product Details

I. Advantage of Acme Fiber Laser Marker

Whether you're looking to mark metal with barcodes, logos, and serial numbers, or you're personalizing metal items such as watches, jewelry, and medals, an Acme Fiber Laser system has the features to help you accomplish your goals. They are ideal when your laser marking requires depth (etching or engraving) onto harder metals or when you need higher powered systems with a smaller spot size for the highest resolution. The high beam quality and small spot sizes with larger lenses allows it to be used for smaller component batch marking applications or the cutting of very thin metals. The Fiber Laser Marking Laser Series is virtually maintenance free, comes with an industry leading warranty, and Acme Laser’s world class support.


II. details


Lift   Switch with marking ruler

Rotary attachment available


High speed galvo head with T-theta Lens


III. Specifications


Machine Type

Fiber Laser Marker

Laser Source

IPG, Germany brand

Raycus, best in China

Output Power

10w/20w/30w/50w

Wavelength

1064nm

Beam Quality

<2

Repeat Frequency

10khz— 100khz

Pulse Energy

2mJ

Beam Divergence

-0.3 to +0.3mrad

Laser Class

IV

Marking Scope

110mmx 110mm

Linear Speed

800 character/ s

Marking Linear Speed

≤12,000mm/s

Marking Depth

Max. 1.0- 1.5mm (hard steel)

Min. Line Width

0.01mm

Min. Character Size

0.15mm

Repeat Accuracy

±0.003mm

Cooling system

Air cooling

Packing Size

860*750*1180mm



IV. samples
