20KW Combined Laser Cutting Machine

20KW Combined Laser Cutting Machine


Sheet Cutting Size: 3000x1500mm, 4000x1500mm, 4000x2000mm, 6000x1500mm, 6000x2000mm
Tube Diameter: 120mm, 170mm
Tube Length: 3m, 6m
Machine Power: 1KW-20KW
Send Inquiry
Description
Technical Parameters

20KW Combined Laser Cutting Machine

Video For 20KW Combined Laser Cutting Machine
video for 20KW Combined Laser Cutting Machine

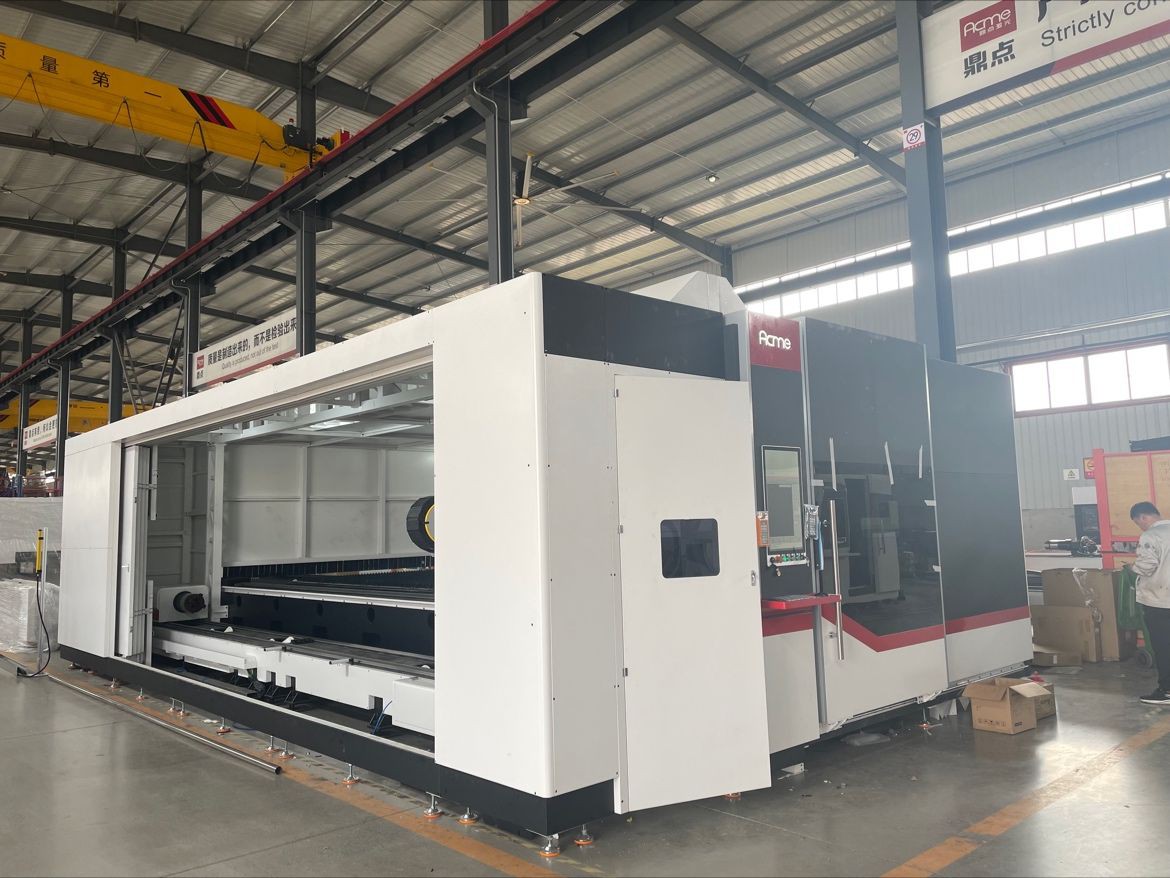

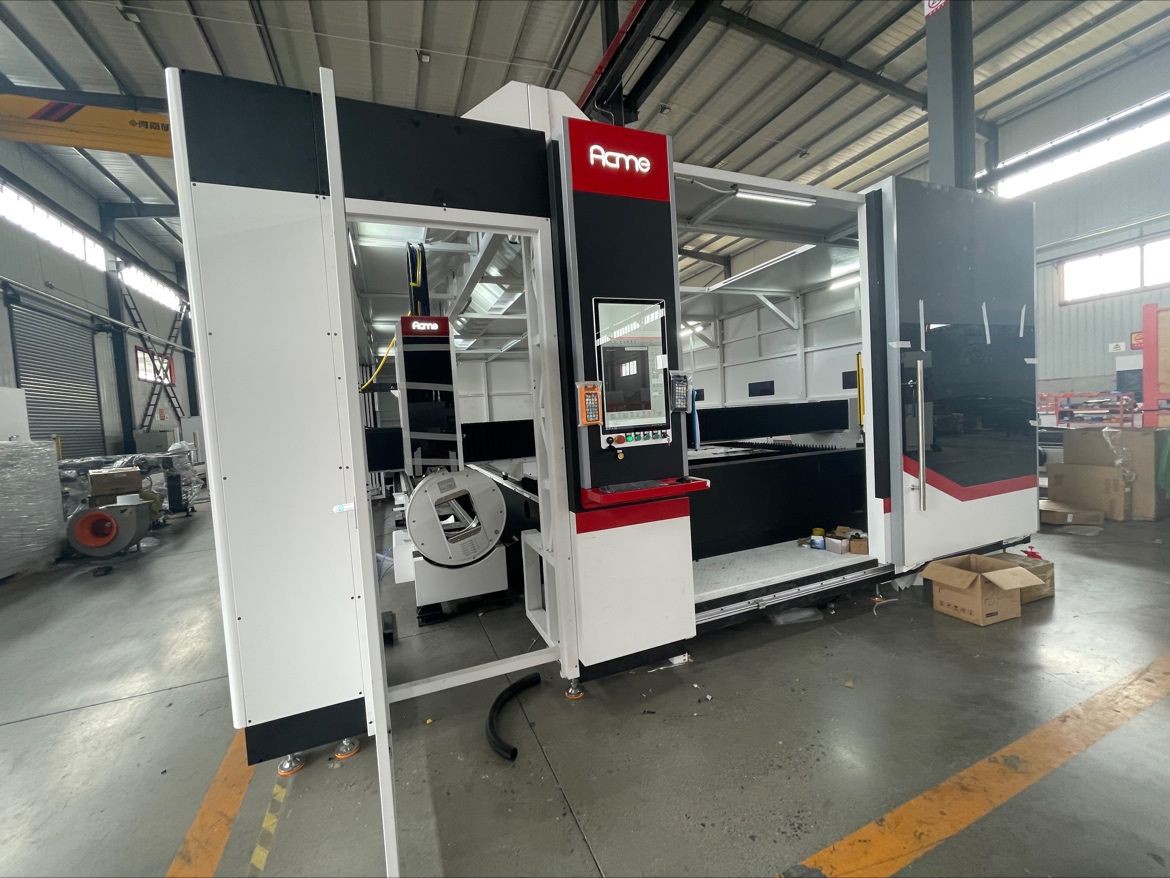

Picture for 20KW Combined Laser Cutting Machine

1712040239091

1712040225281

Configurations of 20KW Combined Laser Cutting Machine



Brand Picture

BOCHU FSCUT5000BH EtherCat Cutting Control System

  • Real-time bus.
  • Integrated follow-up control/interpolation follow-up.
  • Absolute encoder.
  • Error determination.
  • Insensitive perforation.

product-518-324

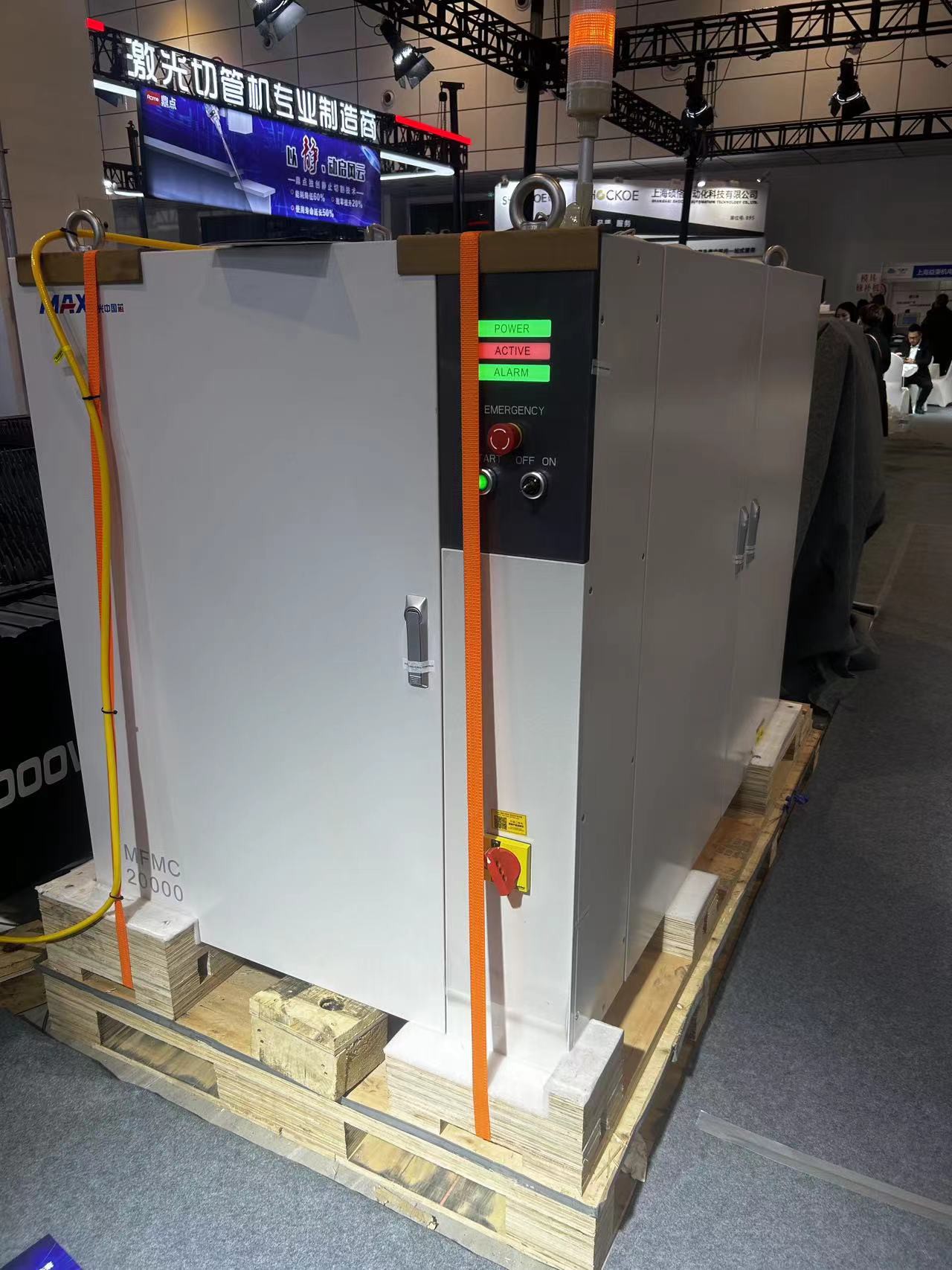

20KW Maxphotonics Multi-Module Laser Source



  • High Power with Great Beam Quality. High power density with flat-head distribution. High wall-plug efficiency
  • Even Energy Distribution. Less splash during cutting and welding.
  • Excellent Material Processing Performance. High speed in thin sheet cutting. Strong capability in thick material processing.
  • Compact Design, Maintenance Free. Highly integrated system with modular design. High stability and easy maintenance significantly reduce TCO.
  • Best Choice for Cutting and Welding. Widely used in hardware processing, automobile, shipping, construction machinery, medical industries and more.

20000w max

BOCHU BLT642H AutoFocus Laser Head

  • Process Monitoring. The cutting process is monitored in real time through the internal sensor of the cutting head. When the area where the returned slag is not penetrated is detected, it will automatically retreat and re-cut, achieving unattended and stable processing.
  • Smart perforation. The perforation process is monitored in real time through sensors, and the hole is cut immediately after penetration without waiting, which greatly improves processing efficiency, reduces costs and increases efficiency.
  • Smart knife closing. Through the real-time monitoring of the perforation sensor, the knife retracting distance can be automatically determined, and the knife can be retracted to enjoy silky smoothness.

BLT642H

20KW Hanli Water Chiller

  • Hanli high-performance industrial cooling system can maintain a constant and stable temperature, making it ideal for use in high-precision and high-demand industrial applications. Its user-friendly digital temperature controller provides real-time monitoring and control of the cooling system, enabling operators to adjust the temperature to meet the specific requirements of their operation.
  • The system features a high-quality compressor and high-performance condenser, which enable it to deliver efficient and reliable cooling. Additionally, it is equipped with high-flow rate pumps, which allow for faster circulation of coolant and more efficient heat transfer.

20000W Hanli
