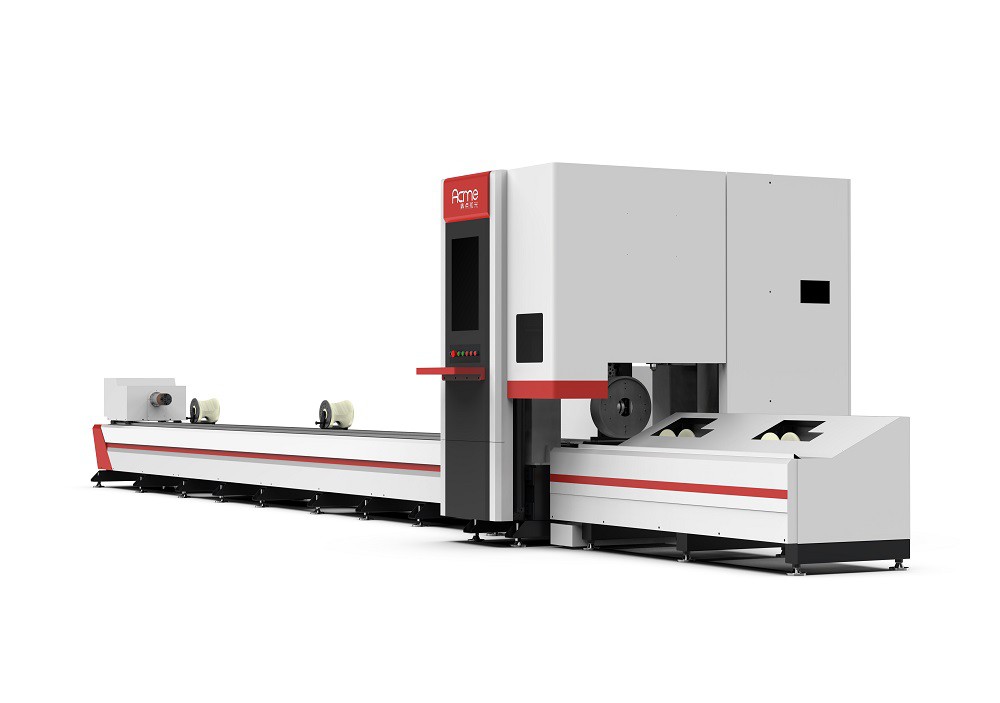

1000W Tube Laser Cutting Machine
Video for 1000W Tube Laser Cutting Machine

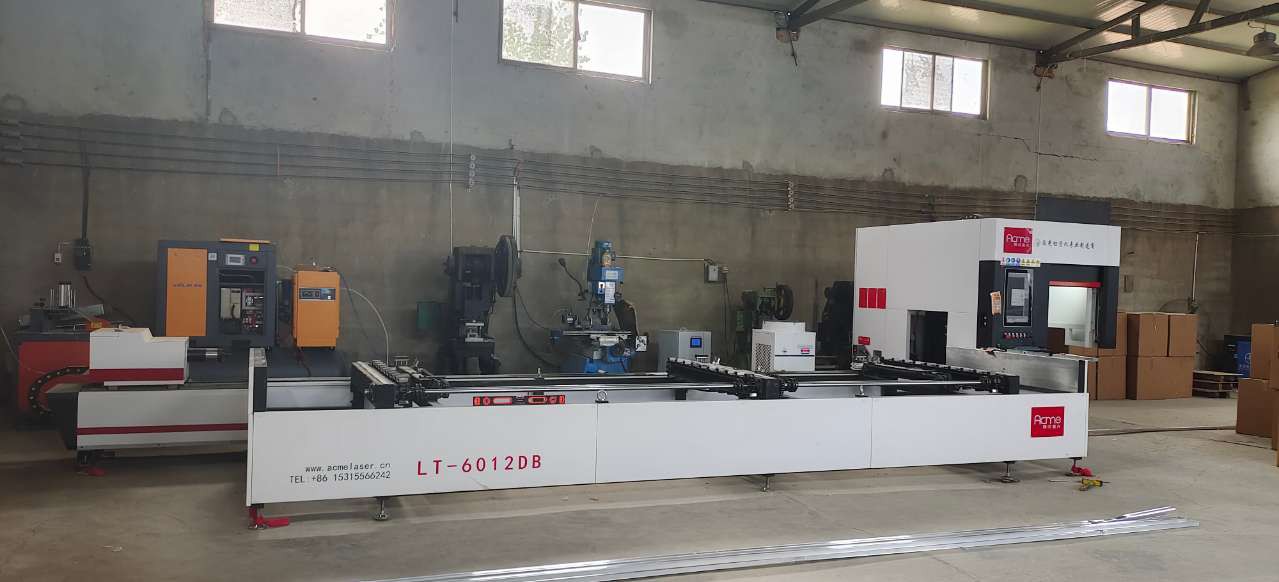

Picture for 1000W Tube Laser Cutting Machine
Technical Parameters for 1000W Tube Laser Cutting Machine
| No. | Performance | Parameter | Performance | Parameter |
| 1 | Item No. | LT-6012DB | Receiving Length |
3m |
| 2 | Max. Cutting Tube Length | 6300mm | Max. Rotating Speed |
200r/min |
| 3 | X Axis Travelling |
800mm |
Max. Acceleration |
1.0G |
| 4 | Y Axis Travelling |
7300m |
Chuck Bearing Weight |
120KG |
| 5 | Z Axis Travelling |
250m |
Max. Feeding Speed | 60m/min |
| 6 | Position Accuracy |
±0.05mm/1000mm |
Auxiliary Gas |
Oxygen, Nitrogen, Air |
| 7 | Repeat Position Accuracy |
±0.03mm/1000mm |
Power Supply | 380v50Hz±10% |
Semi-Automatic Loading Device
| Feeding pipe length | L≤6200mm | |||||||
| Tube Type | square, round, rectangular and other pipes, channel steel, angle steel, H I L Beam steel and other convenient clamping pipes. | |||||||
| Pipe section size | ≤100x100(Square Section) | |||||||
| Bearing Total Weight | ≤650kg | |||||||
| Maximum drag speed of feeder | ≤16m/min | |||||||
| Maximum feeding speed of feeder | ≤28m/min | |||||||
| Feeding Time | 15S | |||||||
| Loading system total Size | 6410mmX1650mmX830mm | |||||||
| Loading system total Weigtht | 0.8T | |||||||
| Total Power | 2KW | |||||||
| Matched machine | 6m D model tube laser cutting machine | |||||||
| Curvature of loading material | The curvature of the profile shall not be greater than 2mm per meter, and the total curvature shall not be greater than 0.15% of the total length (refer to national standards). | |||||||

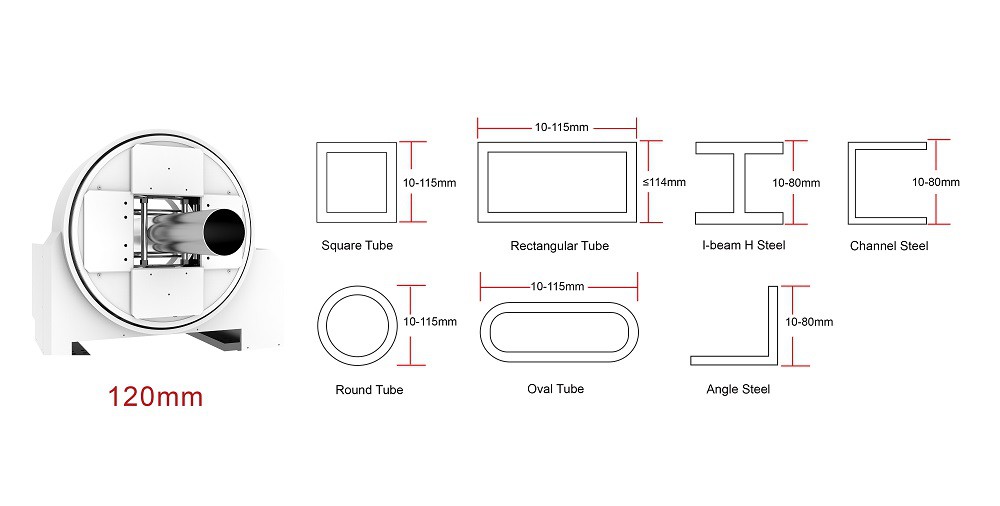

Chuck Diameter
