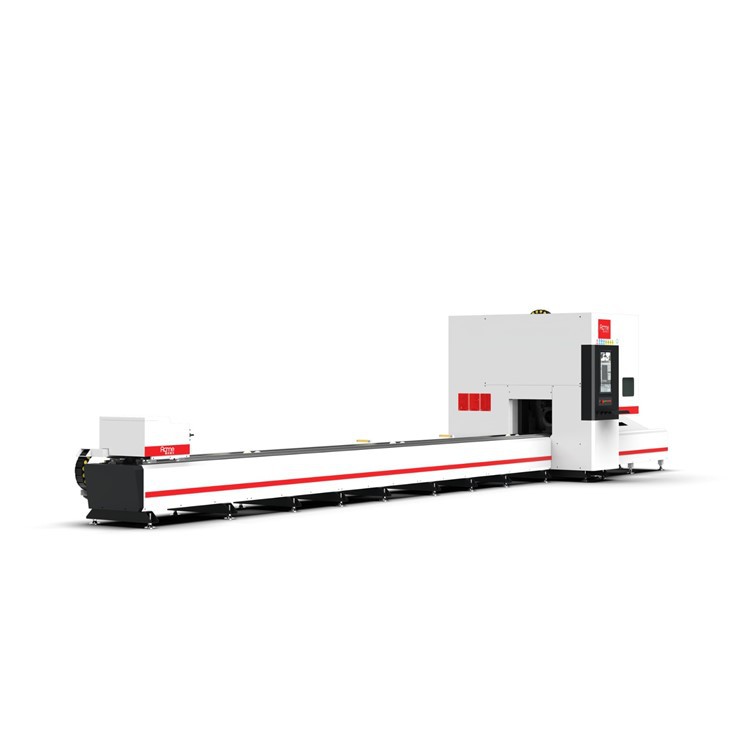

1500W PIPE LASER CUTTER
ACME LT-6012D Model Tube Laser Cutting Machine
1500W PIPE LASER CUTTER Technical Parameters
|
Machine Parts |
Technical Specifications |
|
|
CONTROL SYSTEM |
FSCUT3000S tube cutting control system |
|
|
SOFTWARE |
TubePro Tube cutting software |
|
|
LASER SOURCE |
MAX/ Raycus 1500W |
|
|
LASER HEAD |
Raytools Swiss Auto-focusing |
|
|
WATER CHILLER |
HANLI China |
|
|
SERVO MOTOR |
Yaskawa Servo Motor 750W*1 set(X), 1500W*1 set (Y), 400W*1 set(Z) 1000W*1 set(Back Chuck) 1500W*1set(Front Chuck 120mm) |
|
|
Tube cutting length |
Max. 6200mm |
|
|
Tube cutting diameter |
10-115mm / 10x10--115x115mm |
|
|
Chuck Quantity |
2 chucks, Pneumatic Chuck, Auto-centering |
|
|
Chuck |
Type |
Pneumatic chuck |
|
MIN. Tail Length（mm） |
≥65mm |
|
|
Rated Rotation Speed（r/min） |
120 |
|
|
MAX. Rotation Speed（r/min） |
200 |
|
|
Bearing Capacity（Both） |
120kg |
|
|
X-axis |
Travel(mm) |
380 |
|
No-Load MAX. Speed (m/min) |
60 |
|
|
Y-axis |
Travel(mm) |
6800 |
|
No-Load MAX. Speed (m/min) |
100 |
|
|
Z-axis |
Travel(mm) |
250 |
|
No-Load MAX. Speed (m/min) |
60 |
|
|
Positioning Accuracy |
±0.03/1000mm |
|
|
Repeat Positioning Accuracy |
±0.02/1000mm |
|
|
GUIDE RAIL |
TAIWAN |
|
|
TRANSMISSION |
HELICAL RACK |
|
|
GEAR AND RACK |
YYC |
|
|
REDUCER |
SHIMPO/MOTOREDUCER France |
|
|
ELECTRICAL PARTS |
SCHNEIDER France |
|
|
GAS EXTRACTION SYSTEM |
Acme |
|
|
Oiling System |
Automatic Self-Lubrication System |
|
|
Power supply |
380V, 50/60HZ (can change depend on your voltage) |
|
|
Auxiliary Cutting Gas |
Oxygen / Nitrogen / Compressed Air |
|
|
Supported File Format |
.IGS /Solidworks |
|
|
Spare parts for free |
22 (Nozzle, lens, ceramic body) |
|
|
Machine Weight |
2.5 Tons |
|
|
Machine Size |
9965x1450x1720mm (L*W*H) |
|
1500W PIPE LASER CUTTER with 120mm CHUCK INFO
|
|
Rear Pneumatic Chuck 120mm
Auto-centering Full stock move
Rear chuck can go inside front chuck Make minimum tube tailing |
|
|
Pneumatic Wheel Tube Supporter
Pneumatic Control support tube during tube cutting
|
1500W PIPE LASER CUTTER LT-6012D Model Layout
LT-6012D 1500W PIPE LASER CUTTER SAMPLE

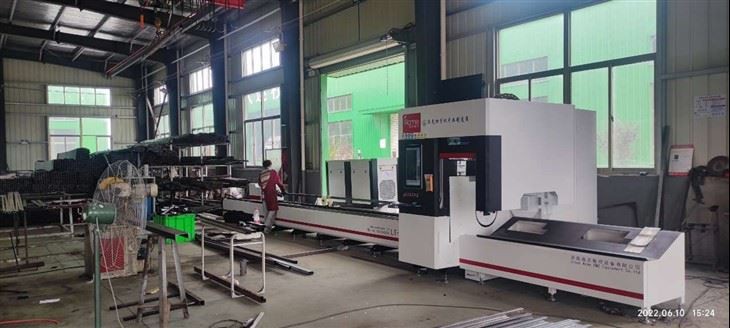

LT-6012D 1500W PIPE LASER CUTTER MACHINE
