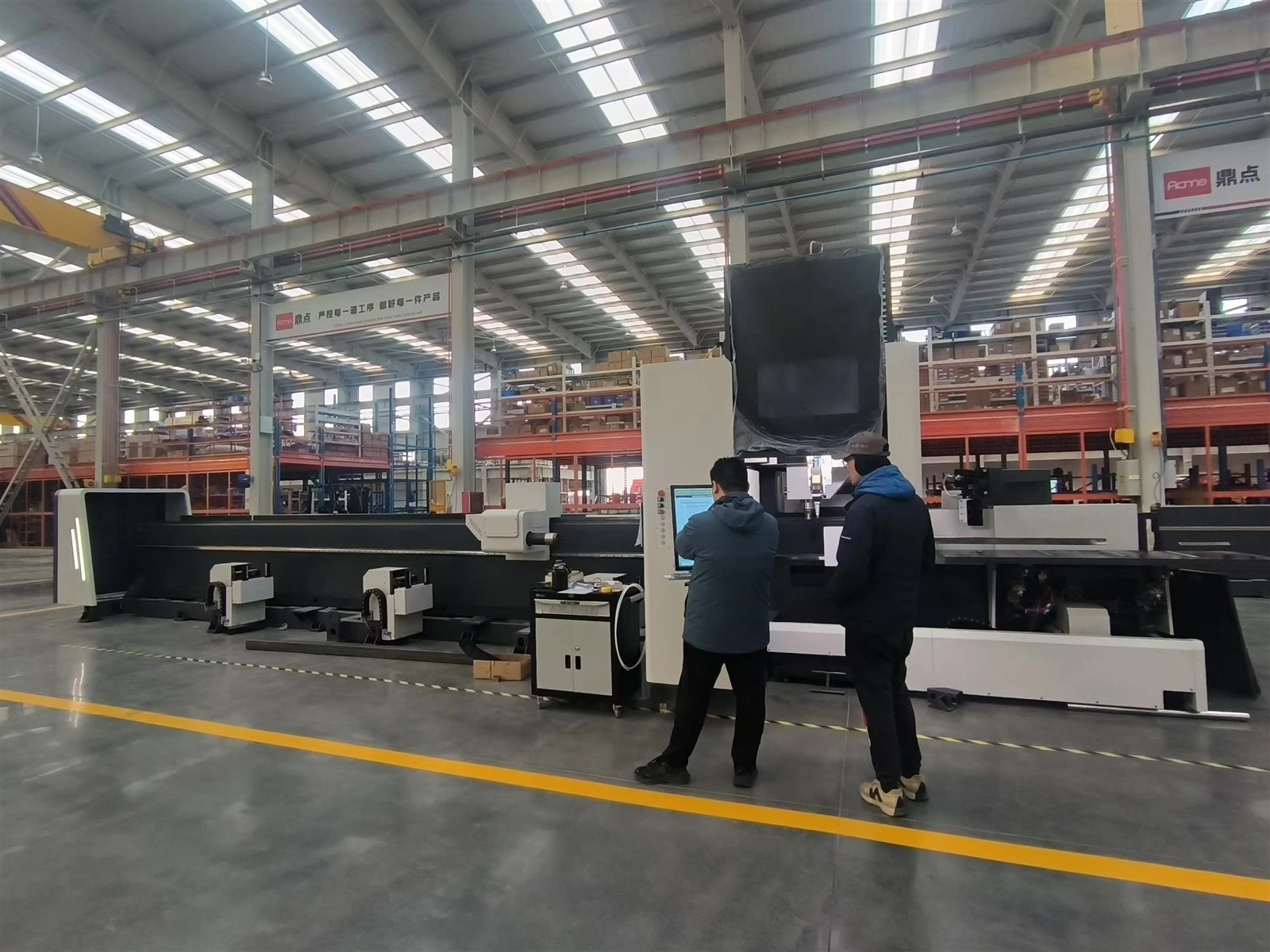

1KW pipe laser cutting machine
ACME High-end LT-6012VF 2 Chuck 35mm min Tailing Tube Profile Beam Laser Cutting Machine with Semi-automatic Loading System/ Automatic Loading System optional choose
1KW pipe laser cutting machine technical data
|
NO. |
Model |
LT-6012VFA High-End Efficient Tube Laser 6m input + 2m output 120mm 2 Chucks with Min.35mm Tailing Fiber Laser Series |
|
1 |
CONTROL SYSTEM |
Fscut 3000DE China |
|
2 |
CUTTING SOFTWARE |
Fscut TubePro 3D Cutting China |
|
3 |
NEETING SOFTWARE |
TubesT professional (small pipe version) China |
|
4 |
LASER SOURCE |
MAX China |
|
5 |
LASER HEAD |
Boci Autofocus Laser Head China (BLT310T) |
|
6 |
WATER CHILLER |
HANLI China |
|
7 |
SERVO MOTOR AND DRIVER |
Inovance China |
|
8 |
CHUCKS |
2 x 120mm Super-fast pneumatic chucks (Middle chuck full stroke, Self centring, fast, stable, intelligent, higher precision, no damage to tubes) |
|
9 |
REDUCER |
Moto Reducer France |
|
10 |
GUIDE RAIL |
TWIN Taiwan |
|
11 |
RACK AND GEAR |
TWIN Taiwan |
|
12 |
POSITIONING ACCURACY |
±0.05 / 1000mm |
|
13 |
REPEAT POSITIONING ACCURACY |
±0.05mm/1000mm |
|
14 |
ELECTRICAL PARTS |
SCHNEIDER France |
|
15 |
PNEUMATICAL PARTS |
SMC Japan |
|
16 |
MACHINE BED |
DURABLE STRONG MACHINE BODY Side-mounted durable machine bed with low centre of gravity for stable processing |
|
17 |
TUBE SUPPORT DEVICE |
1. Heavy Duty Servo Following Supporters & Lifters (Loading Part) 2. Heavy Duty Servo Following Large Flat Sheet Platform Tube Supporters & Lifters (Unloading Part) |
|
18 |
INPUT UNLOADING PART |
6m Professional Input Loading |
|
19 |
OUTPUT UNLOADING PART |
2m Professional Output Unloading can receive Max.3m output material |
|
20 |
SMOKE CLEAR SYSTEM |
Exhaust Fan China |
|
21 |
OIL SUPPLY |
Automatic Lubrication System China |
|
22 |
TYPES OF TUBES |
Round pipe, square pipe, rectangle pipe, elliptic pipe, Angle steel, channel steel, L-steel, C-beam steel, H-beam, I-beam, special shaped pipe etc. |
|
23 |
CLOUD SYSTEM |
Smarter Real-time Database Collection |
A Semi-automatic loader is optional
H model automatic loader is optional
