20KW Tube Laser Cutting Machine
Machine Introduction:
1. 20KW Tube Laser Cutting Machine, No laser power limit.
2. 6m/ 9m/ 12m/ 15m standard length optional, other length also can be customized.
3. Suitable for ≥380mm diameter round, square, rectangular pipes; angle shape, U shape and H beam profiles; and special shapes of pipes cutting
4. Servo follow-up floating support is able to adjust the height in real time according to the height of pipe rotation to realize perfect support in the cutting process Three Pneumatic Chucks, 0 Tailing,100% material utilization.
5. ±45°bevel, smallest seam when splicing or plugging, can be directly connect and do the welding work.
Machine Advantage
1. All EtherCAT= EtherCAT Bus System+ EtherCAT Bus Servo Motor &Driver
* We use EtherCAT Bus system and EtherCAT servo motor and driver, bring higher action speed and presicion.
* More expansion interfaces can support more functions.
2.Independent R&D and production, prompt after-sales response
* ACME Laser Chuck is completely independently developed and produced. Timely service can be provided. If there are any problems with the chuck and parts, solutions or replacement parts can be provided directly.
* With an Eight-cylinder structure, the clamping force is twice that of ordinary chucks, strong load-bearing capacity, machine can bear 3000KG.
* ACME chuck (full stroke heavy duty chuck, round, square moment within the range of 40-530mm, angle shape, I-beam 40-450mm), no need manual adjust the jaws, it can be in place at one time, saving time. Other supplier's chuck always be multi-level jaws, which requires manual adjustment of the jaw sizes. Changing the jaws is time-consuming and labor-intensive, and is very troublesome.

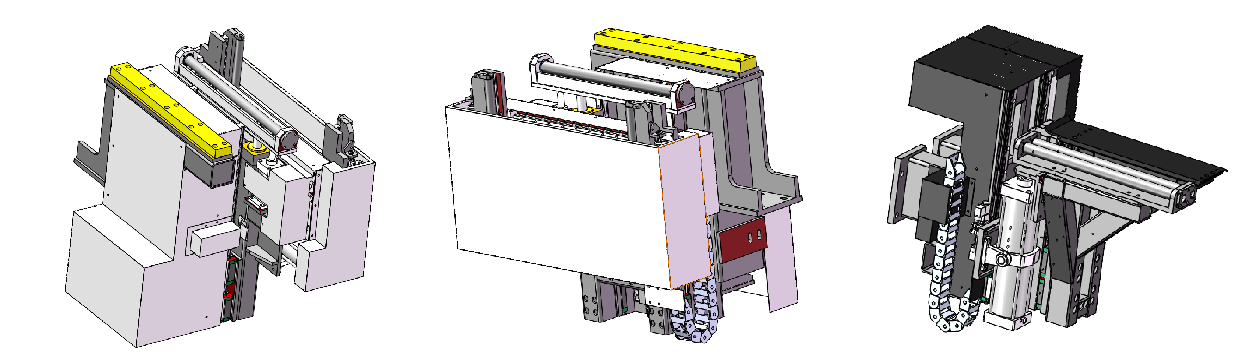

3. Each servo follow-up support use a separate motor control
* Large bear Weight---440KG
* Full Stroke Openning and Clamping
* Cylinder buffer-better adapts to deformation pipe, double lifting structure

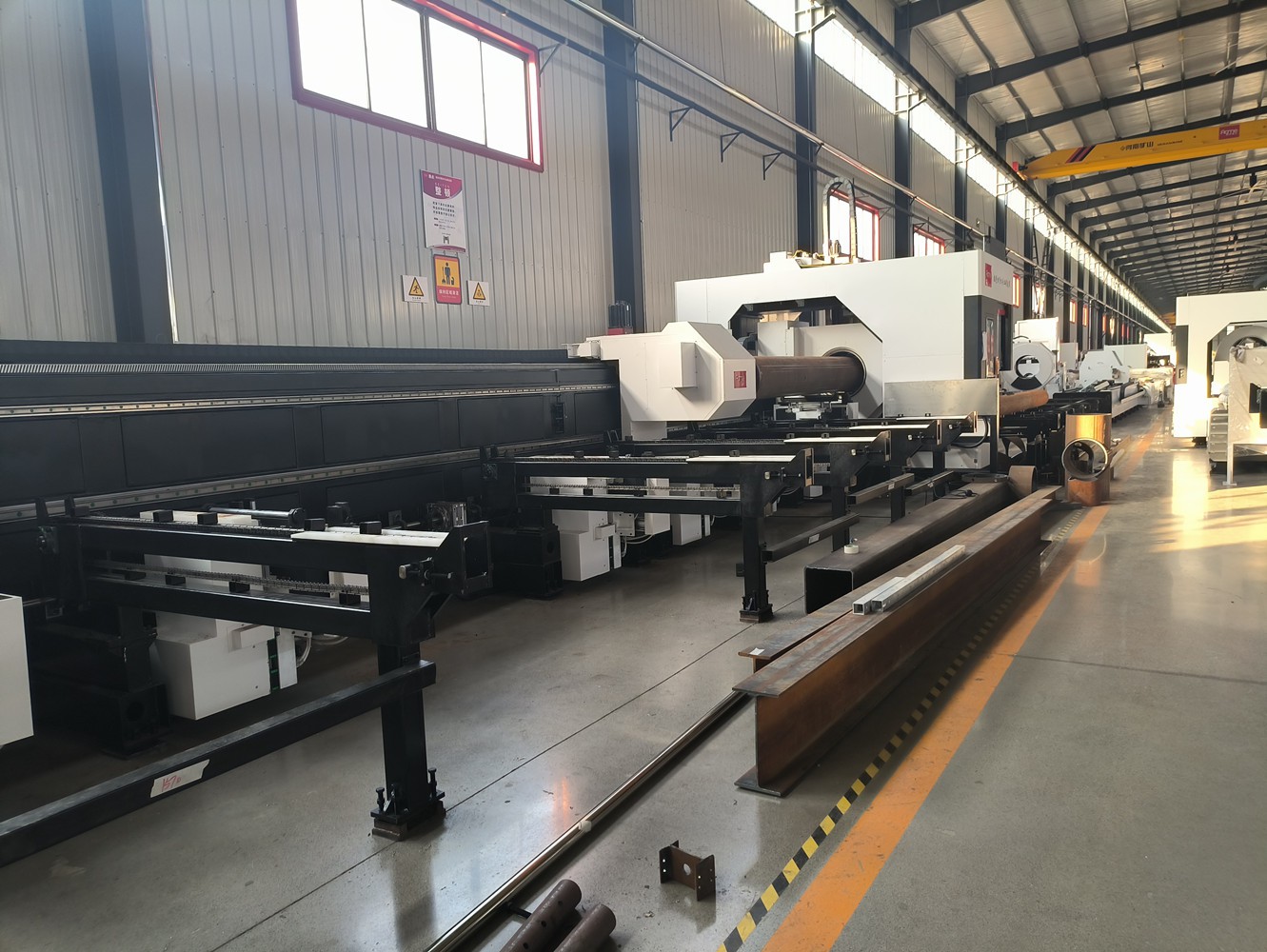

20KW Tube Laser Cutting Machine Customer site
