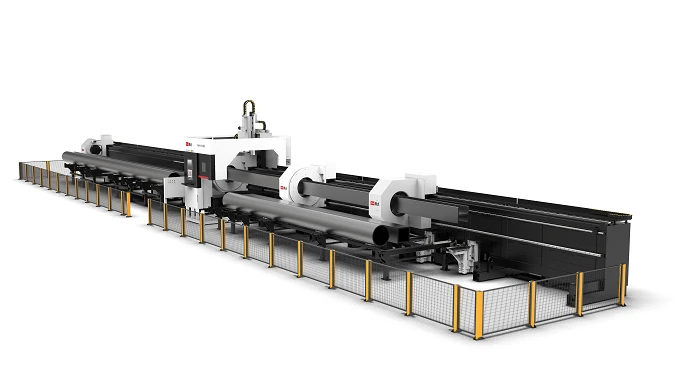

30000W Pipe Laser Cutting Machine

The machine beds used in our products are all independently developed and machined as a whole. There are four keyway connections at the ends of the two machine bed sections, approximately 30mm wide, 10mm deep, and 120mm long. The plate thickness at the machine bed connection is 2.5mm, the maximum plate thickness is 3.5mm, and the maximum tubing thickness is 5mm. Photos will be provided to the customer for confirmation or on-site inspection after all workpieces have been welded and heat-treated. The square tubing used for welding the machine bed is 200×200×5mm. Welding of the guide rail and rack surfaces uses intermittent welding (full welding would cause excessive stress and deformation). The finished thickness of the guide rail and rack surfaces is 35mm.

ACME's independently developed heavy-duty full-stroke chuck is the only one of its kind in the industry. Its fully enclosed design offers a high dustproof rating. It employs an integrated structure design for the chuck, base, high-precision servo motor, and reducer, achieving synchronous rotation of multiple chucks through precision gear transmission. This truly enables zero-tail cutting, thus better ensuring cutting accuracy and speed.

Each chuck is driven by a servo motor, enabling synchronous rotation.

Adopting an advanced pneumatic chuck, it offers higher precision, better stability, and faster clamping response. The high-speed, lightweight structural design, equipped with a high-precision servo motor and high-precision gear transmission, achieves synchronous rotation of multiple chucks, further ensuring cutting accuracy and speed, significantly improving the cutting and processing experience.

• Superior Materials: YYC racks are made of high-quality steel, offering excellent wear resistance and corrosion resistance.

• Precision Machining: YYC racks undergo precision machining to ensure dimensional accuracy and surface finish, which improves transmission efficiency.

• High Strength: YYC racks possess high strength and rigidity, enabling them to withstand heavy loads.

• Low Noise: YYC racks generate low noise during operation.
