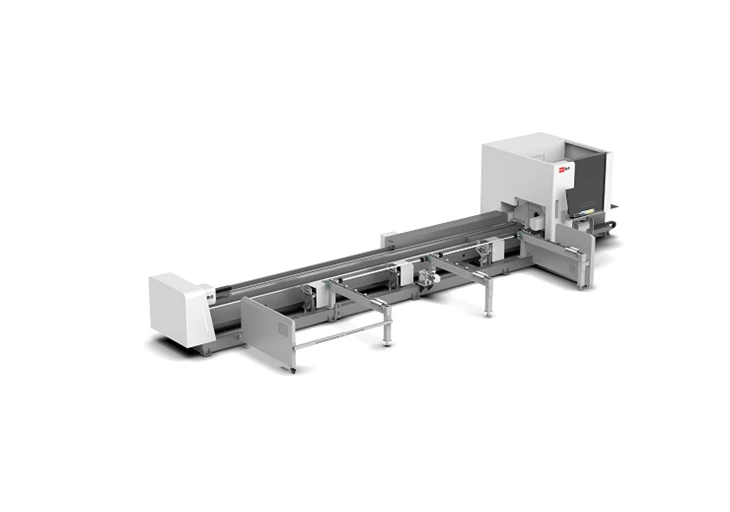

3000W Pipe Laser Cutting Equipment

 3000W pipe laser cutting equipment, World famous MAX brand laser source

 Semi-Automatic loading system, easier to upload and process

 Front movable chuck, Higher cutting precision for long materials, Less materials waste

 Option: Bevel cutting function



Main working area including chucks and laser cutting head

-ACME patent design penumatic movable chucks*2

① Adopt eight-cylinder structure, clamping force twice than common chuck.

② Full stroke clamping range, without manual adjustment.

③ Special square hole design, stronger passing capacity.

-BOCI laser cutting head

Model	BLT310T
Fiber Interface	QBH/EOC
Focal Distance	200/250mm
Laser Wavelength	1030~1090nm





BOCHU FSCUT control system+ flexible movement control panel

① Bochu TubePro tube cutting software.

It is a professional cutting software for processing various types of tubes. It is perfectly connected with the layout software Tubest, which realizes the layout, common edge, basic process and special process processing of parts. After exporting the processing file, you can directly use TubePro for cutting.

② Bochu TubesT tube nesting software.

Multifunctional nesting software, suitable for various materials and shapes, including I beam, H beam, C/U channel steel, L angle steel, etc.



Special machine structure and appearance

① Suitable for small size tubes and pipes processment, installed the rotating chuck at the side of machine frame, perfectly matched 3KW laser source and fast cutting speed.

② Better Loading way, easier to load tubes and pipes. Customer can use forklift.

The 3000W Fiber Laser Tube Cutting Machine has become a popular choice for manufacturers seeking an efficient and cost-effective solution for daily tube processing. Whether producing structural frames, support brackets, handrails, machinery components, or custom-fabricated parts, the machine delivers the flexibility required for diverse tube processing applications.

Customers appreciate its ability to handle a wide variety of tube shapes and sizes while maintaining consistent cutting quality throughout long production runs. Compared with traditional sawing, drilling, and punching methods. The simplified workflow allows production teams to spend less time on material handling and process coordination, resulting in smoother day-to-day operations.

With a balance of cutting performance, operating costs, and ease of use, the 3000W model is particularly well suited for growing manufacturers looking to increase capacity without significantly increasing labor or production expenses.

Combining dependable performance with easy maintenance, the machine helps manufacturers improve productivity while keeping operating costs under control.
