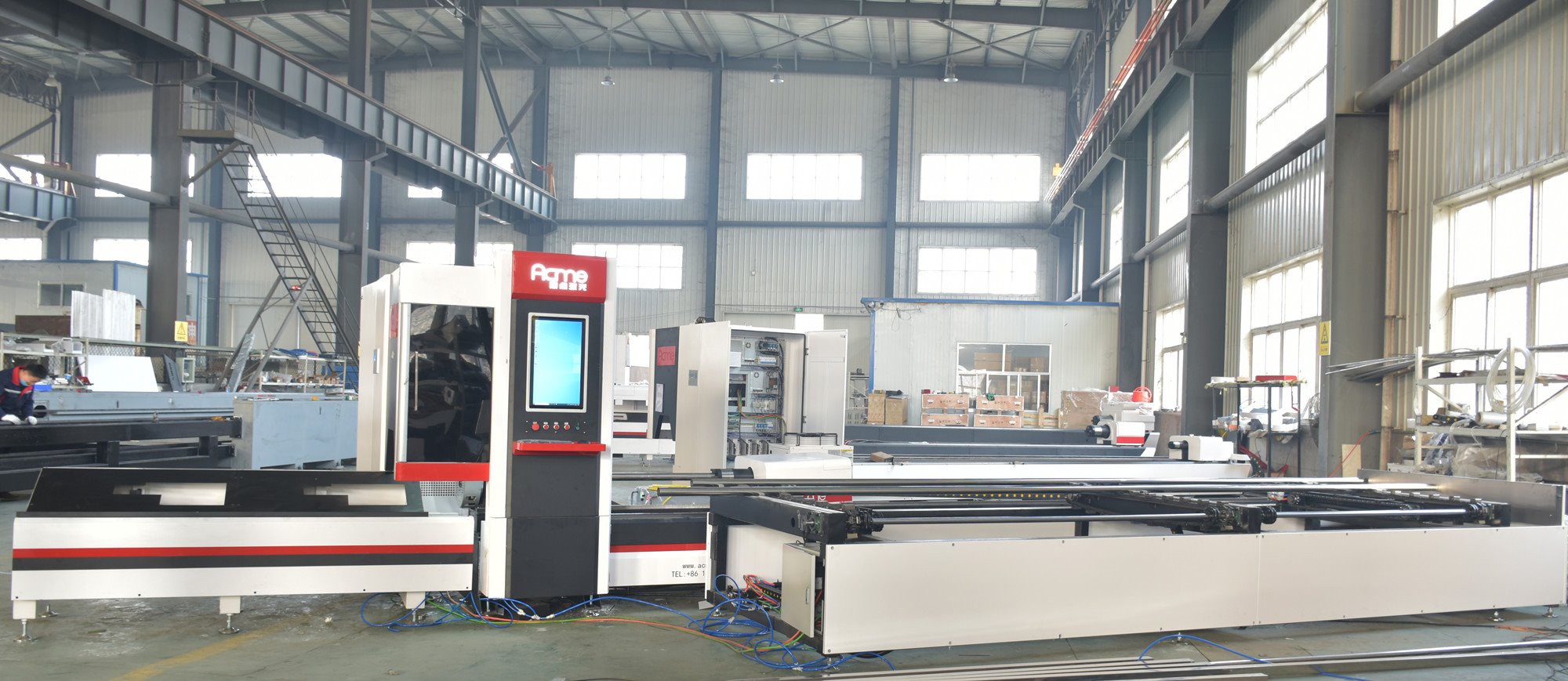

ACME LT-6017DB model metal tube laser cutting machine with semi-automatic loading system
Features:
CNC machinery center processing and forming, high strength and good stability;
Configure with high accuracy YYC linear rail, high accuracy helical gear rack transmitting, more stability, and higher precision;
Restart from power off, auto feeding, restoration, and continue processing at the breakpoint, user-friendly design;
A semi-automatic loading system can be an optional choice.
Technical Parameter
1 | CONTROL SYSTEM | FSCUT3000S Tube Cutting Control System | ||
2 | SOFTWARE | TubePro Tube cutting software | ||
3 | LASER SOURCE | MAXPHOTONICS/Raycus/IPG optional | ||
4 | LASER HEAD | Raytools Swiss Auto-focusing | ||
5 | WATER CHILLER | HANLI China | ||
6 | SERVO MOTOR | Yaskawa Servo Motor, Japan | ||
7 | REDUCER | SHIMPO Japan/MOTOREDUCER France | ||
8 | GUIDE RAIL | HIWIN TAIWAN | ||
9 | GEAR AND RACK | YYC | ||
10 | TRANSMISSION | HELICAL RACK | ||
11 | ELECTRICAL PARTS | SCHNEIDER France | ||
12 | OIL LUBRICATION SYSTEM | Automatic oil self-lubrication system | ||
13 | DUST EXTRACTION SYSTEM | Exhaust Air Fan | ||
14 | PIPE | CUTTING LENGTH(mm) | 6000 | |
15 | CUTTING DIAMETER(mm) | 10-165mm | ||
16 | CHUCK | Type | 8 Cylindes Pneumatic chuck* 2pcs, Auto-Centering | |
MIN. Tail Length（mm） | 65mm | |||
Rated Rotation Speed（r/min） | 100 | |||
MAX. Rotation Speed（r/min） | 120 | |||
Bearing Capacity（Both） | 200kg | |||
