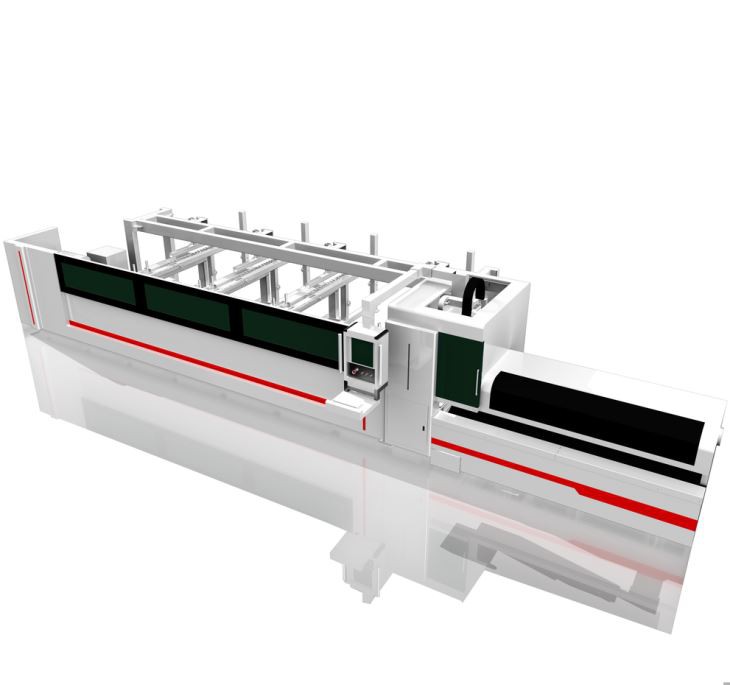

Full Cover Automatic Bundle Loading Fiber Laser Pipe Cutting Machine
1. Automatic Tube Bundle Loading
2. Automatic Material Alignment
3. Automatic Feeding and Rotation
4. Fiber Laser Tube Cutting
5. Unloading Available
IPG Laser Cutting Capacity
| RESONATOR IPG | YLS-1KW | YLS-2KW | YLS-3KW | YLS-4KW | YLS-6KW |
| Power (W) | 1000 | 2000 | 3000 | 4000 | 6000 |
| Recommended cooling power (kW) | 2,1 | 4,2 | 6,4 | 8,5 | 12,6 |
| Electrical supply (kW) | 3,1 | 6,1 | 9,1 | 12,1 | 18,2 |
| Maximum sheet thickness: | |||||
| Steel (mm) | 10 | 15 | 20 | 20 | 25 |
| Stainless Steel (mm) | 4 | 8 | 12 | 15 | 20 |
| Aluminium (mm) | 2 | 6 | 12 | 12 | 15 |
| Brass (mm) | 2 | 4 | 6 | 8 | 10 |
| Copper (mm) | 2 | 4 | 6 | 8 | 10 |
Capabilities of Modern Tube Cutting Machines
Relative newcomers to the metal forming and fabricating industry, laser machines are used for cutoff; beveling(3D Laser Head); and cutting slots, holes, notches, and other features of any conceivable size and shape in tube and pipe. Used most commonly for cutting the manufacturing industry's favored material, mild steel, they also are useful for cutting stainless steel, aluminum, and titanium.
Laser tube cutting machines for general fabrication work typically accept up to 12m lengths of tube and are equipped with load carriages that hold large bundles of tube.
It can accept information in CAD format and use the information for nesting parts and developing cutting sequences and paths.
