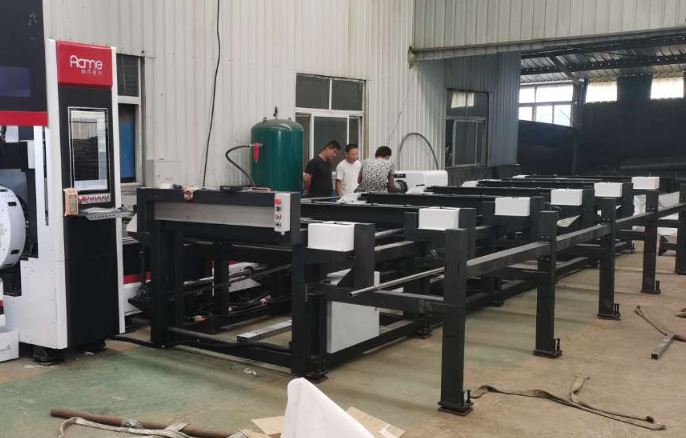

Fully Automatic Loading & Unloading Metal Tube Laser Cutting Machine
a. 30mm to 150mm diameter metal tube can be fully automatic feeding and discharging
b. Length: Max.9200m Output Length.
b. Equipped with Max.350mm two-chuck or three-chuck.
c. Equipped with Automatic Bundle Loading System.
A fully automatic loading & UNloading metal tube laser cutter is also called a tube laser cutting machine, which is used for cutting round tubes, square tubes, rectangular tubes, etc without man intervention. Fully automatic Pipe feeding processing range Max.9200mm* φ10~150mm (closed shaped tube: circumcircle≤φ150mm)
LT-6025EH model metal tube laser cutting machine is equipped with a fiber laser device, laser power from 1kw to 3kw can mass cut carbon steel thickness within 16mm, stainless steel material thickness within 8mm, aluminum or brass material thickness within 5mm in high quality.
Detail Main Configurations
Metal Tube laser cutting machine bed
Good rigidity, high precision, no deformation during the life cycle; good weight and good performance.

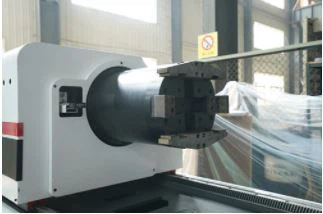

ACME R&D High-End Chuck
ACME Rear Chuck ACME Rear Chuck
MAX/ IPG/ Raycus laser source (1000watt-3000watt)
MAX Laser Source IPG Laser Source
MAX/ IPG/ Raycus Laser Source can be optional choose
Raytools/ Precitec cutting head
Raytools Cutting Head
Raytools/Precitec Cutting Head optional choose
Servo follow pipe support
Fully Bundle Loading System
Semi-Auto Loading and unloading function optional chosen
Light Loading Model
Heavy Loading Model
Machine Video
