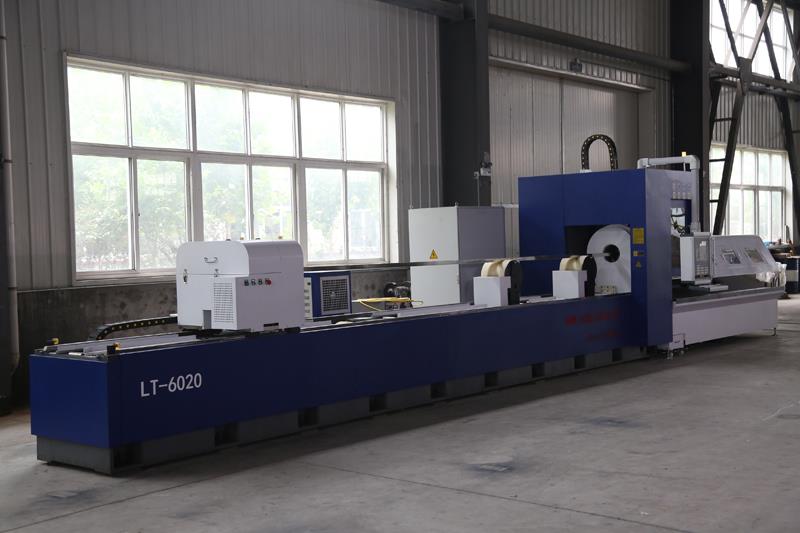

LT-6020 Fiber Laser Tube Cutting Machine

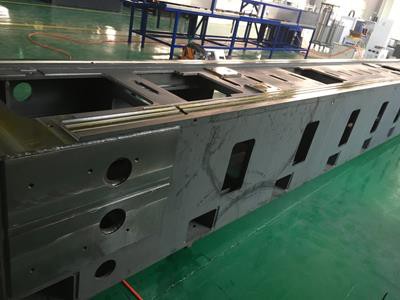

Machine Bed

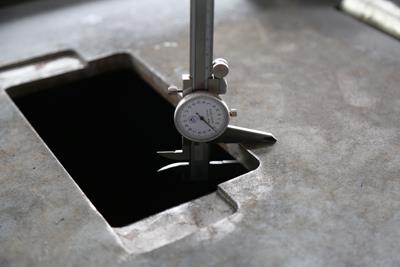

16-25mm thickness machine bed is cut from whole steel panel with heat and aging treatment, milled by Italy COLGAR machining center with high precision.
Material Uploading from Back
5 pcs of automatically adjustable pneumatic carrier wheel brackets (2 in the front, 3 in the back). It's suitable for different types of pipes of 20-200mm diameter.
Rear Chuck Loading
The operator can load the tubes while the machine is cutting other tubes. It reduces time cost and human cost a lot, and increase production efficiency.
Cutting Samples
Hot Tags: higher productivity metal tube cutting fiber laser cutting machine china factory, China higher productivity metal tube cutting fiber laser cutting machine china factory suppliers, manufacturers, factory, Steel Pipe Automatic Laser Cutting Machine, Tube Laser Cutting Machine Price, aluminum tube laser cutting machine, Automatic Tube Laser, 3 chucks tube laser cutter, Metal Cutting Laser Tube
Configuration
No | Item | Quantity | Brand |
1 | Laser Power Output Source | 1 | Raycus/IPG/MAX |
2 | Laser Cutting Head | 1 | Switzerland Raytools |
3 | Control System | 1 | Shanghai Cypcut |
4 | Machine Bed | 1 | 16-25mm Welded Steel Panel (Heat Treatment, CNC Milling) |
5 | Chuck | 1 | Front and Back: Automatic Pneumatic Chuck |
6 | Electrical Part | 1 | France Schneider |
7 | Pneumatically Part | 1 | SMC / AirTAC |
8 | Guiding Rail | 1 | Taiwan Brand |
9 | Helical Rack | 1 | Taiwan Brand |
10 | Servo Motor | 5 axises | Japan Yaskawa |
11 | Reducer | 1 | France Motovario |
12 | Water Chiller | 1 | China Hanli |
13 | Air Compressor | 1 | China Brand |
14 | Tube Supporter | 5 | Reducing Wheel |
15 | Dust Extraction | 1 | Acme |
16 | Waste Collection | 1 | Trolley for material shorter than 250mm |
17 | Loading | 1 | Manual Loading from Back (Automatic Loading as Optional Configuration) |
18 | Dust and Smoke Filter | 1 | Option |
19 | Oiling System | 1 | Automatic Oiling |
