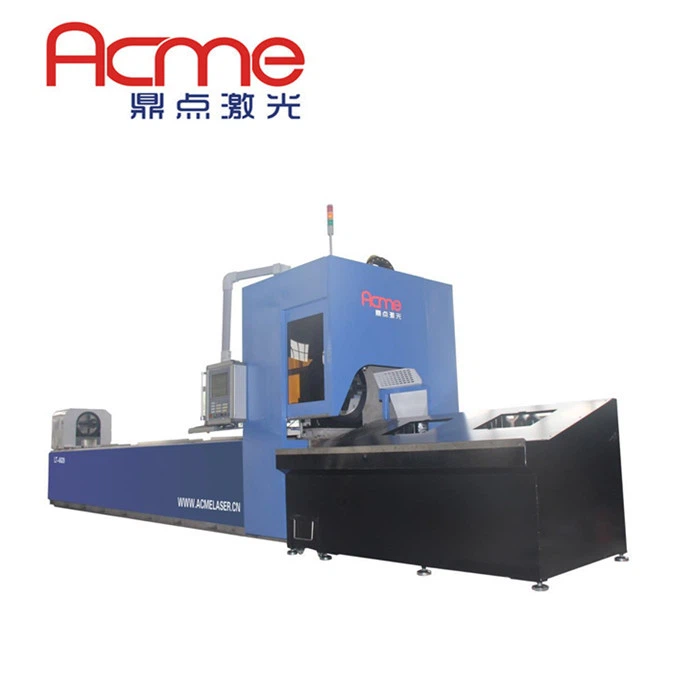

Laser Cutting Steel Tubes Machine, fully automated and CNC controlled they can process Stainless Steel and Mild Steel sections cleanly and consistently.
I. Features
Ø Faster processing of complex tube slotting and drilling, reducing production times
Ø Fully CNC automated process ensuring no human error and more accuracy
Ø High volume output creating ‘kits’ of parts ready for assembly
Ø Saved money on tooling, production and machine costs
II. PARAMETERS
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on
|
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail（Waste） length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm(customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (customized order acceptable) |
20. | Laser tracking system | Automatic follow-up |
III.MACHINE DETAILS
Self-centering Collet Chuck The collet chucks position and hold your tubes in place without damaging the materials. The self-centering clamping system with continuous sensor monitoring adapts to every tube geometry. This means you benefit from high part precision. |
|
| A Constant View of the Machining Process With the large window, the machining process is perfectly visible. |
Automatic Stepped Rollers The step rollers support the tubes while also moving them sideways, and adjust automatically to various diameters. |
|
| Germany PA8000 Control System The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator. |
3.5 Meters Long Material Unloading Platform Longer than 2.5 meters standard unloader, this is very effective for most tube loading. And if necessary, we can add another group of unloader. |
|
IV. Application
Shapes that fit inside a 230mm diameter circle up to 6500mm long can be processed on this massive machine. And the size is customizable.
Applications | |
Engine Parts | Motor Homes Exchangers |
Products | |
Air Flow Tubes Watercraft | Grab Handles |
Industries Served | |
Agricultural | Motorcycle |
Ⅴ. Factory

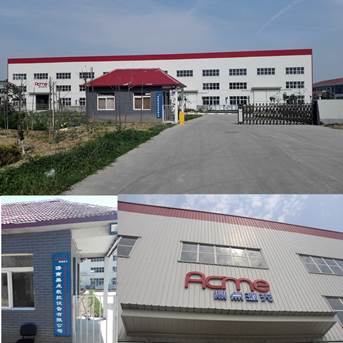

20000 SQUARE METER FACTORY
ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
