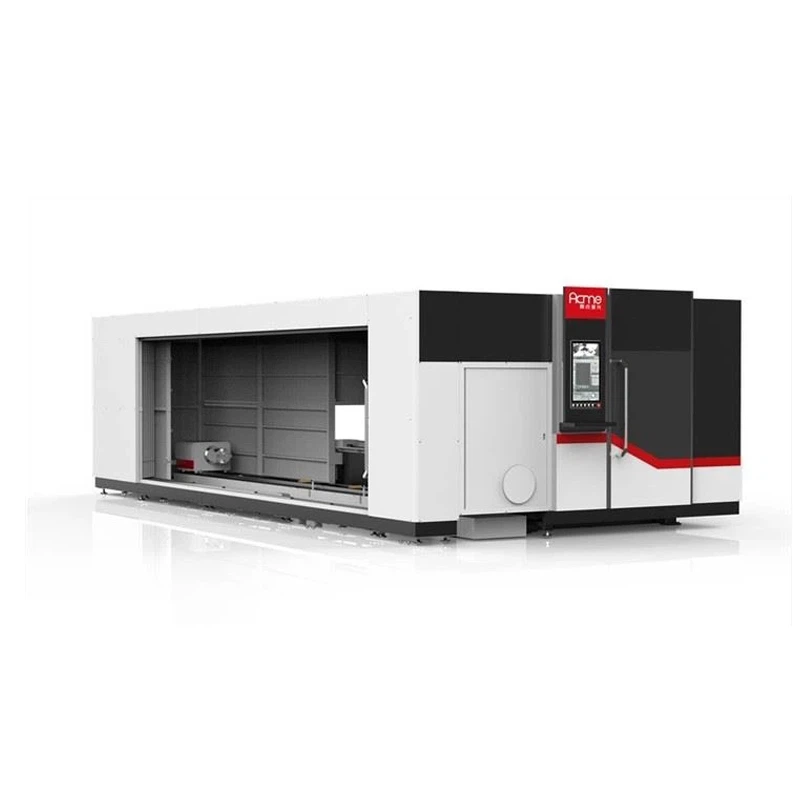

Metal Sheet And Tube Fiber Laser Cutting Machine
For the actual demand of the metal plate and tube processing industry, ACME launched the LP-3015DT model metal sheet and tube fiber laser cutting machine.
Metal sheet and tube fiber laser cutting machine advantages
1. With the fully enclosed design, it can meet the European CE protective standard.
2. Dual exchange working platform enables simultaneous cutting and feeding. High efficiency and time-saving.
3. One machine can be used for both cutting sheets and cutting pipes, with high-cost performance and space-saving.
4. Introducing the original fiber laser, the performance is stable, and the service life is over 100,000 hours;
5. Stable optical path system and control system; Precision and efficiency, the cutting edge is beautiful and smooth.
6. Technology database includes cutting parameters and pre-set cycles for various metals
7. The ratio of the entire transmission structure is reasonable, the machine tool is stable when cutting at high speed, and the dynamic performance is soaring;
8. Partition dust removal, the dust collector collects high-speed smoke and dust, so that the operation link is free of smoke and dust interference;
9. Independent power distribution cabinet, streamlined lines, dustproof performance upgrade
Machine Technical info (eg. LP-3015DT170 model)
1 | CONTROL SYSTEM | FSCUT3000S sheet and tube cutting control system | |
2 | SOFTWARE | TubePro Tube cutting software, Cypcut Sheet cutting software | |
3 | LASER SOURCE | IPG/ MAX/ Raycus laser source | |
4 | LASER HEAD | Raytools, Ospri, Precitec Auto-focusing | |
5 | WATER CHILLER | HANLI China | |
6 | SERVO MOTOR | YASKAWA x7 Japan | |
7 |
X AXIS | TRAVEL | 3050mm |
NO-LOAD RATED SPEED (m/min) | 80 | ||
NO-LOAD MAX. SPEED (m/min) | 120 | ||
8 |
Y AXIS | TRAVEL(mm) | 1550 |
NO-LOAD RATED SPEED (m/min) | 80 | ||
NO-LOAD MAX. SPEED (m/min) | 120 | ||
9 | Z AXIS | TRAVEL (mm) | 250 |
NO-LOAD RATED SPEED (m/min) | 30 | ||
NO-LOAD MAX. SPEED (m/min) | 60 | ||
10 | PIPE | LENGTH(mm) | 6000 |
DIAMETER(mm) | 170mm | ||
11 | GUIDE RAIL | TAIWAN | |
12 | TRANSMISSION | HELICAL RACK | |
13 | GEAR AND RACK | YYC | |
14 | REDUCER | SHIMPO/MOTOREDUCER France | |
15 | POSITIONING ACCURACY | ±0.03/1000mm | |
16 | REPEAT POSITIONING ACCURACY | ±0.02mm | |
17 | ELECTRICAL PARTS | SCHNEIDER France | |
18 | GAS EXTRACTION SYSTEM | Acme | |
19 | DUST REMOVAL SYSTEM | OPTIONAL | |
20 | DIMENSION | 10080*3640*2494MM | |
21 | G.W. | 8500KG | |
After-Sale Service
After-sale service | Machine installation and Training operators English Speaking Engineers available do overseas services. Consumable parts continue to be supplied. Life-long free technical support. |
Shipping | 1x40’HC+1x20’GP Container |
HS Code | 84561100.90 |

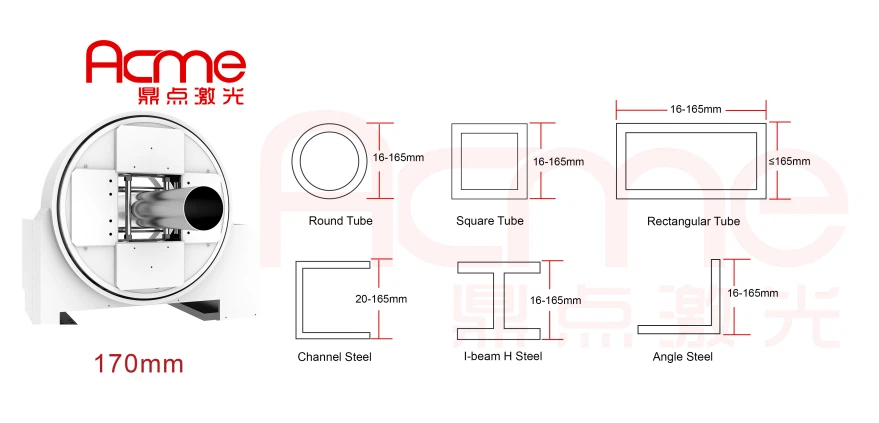

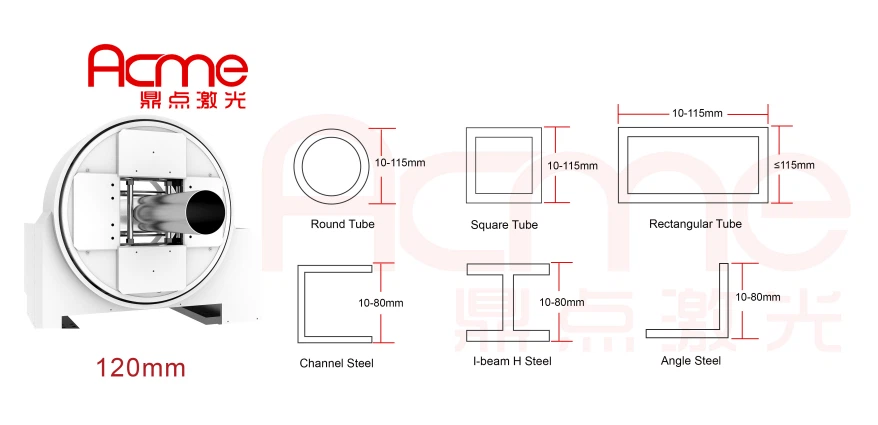

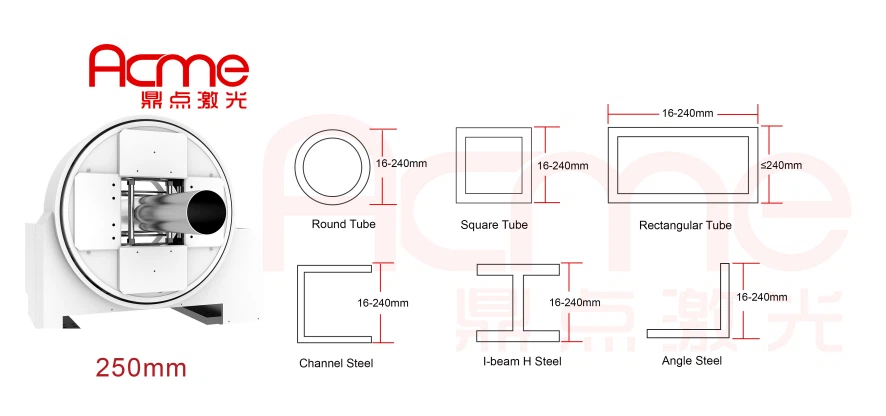

Metal sheet and tube fiber laser cutting machine tube chuck sizes can be chosen

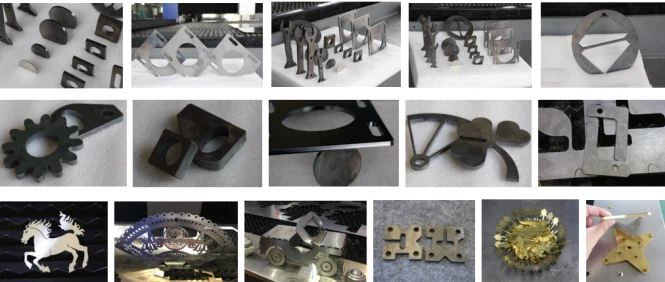

Metal sheet and tube cutting machine cutting sample
CE, FDA, ISO, MIC, SGS, China National Patent Certificate
CE, FDA, ISO, MIC, SGS, China National Patent Certificate
Metal sheet and tube fiber laser cutting machine Application
widely used in kitchen appliances, electrical control boxes, mechanical equipment, electrical equipment, lighting hardware fittings, elevator manufacturing, auto parts, hardware, and metal processing.
LP-3015DT model is specially used for cutting carbon steel plates(pipes), stainless steel(pipes), galvanized steel plates and pipes, electrolytic zinc-coated steel(pipes), aluminum sheet(pipes), and brass plates (pipes), and other metal materials.

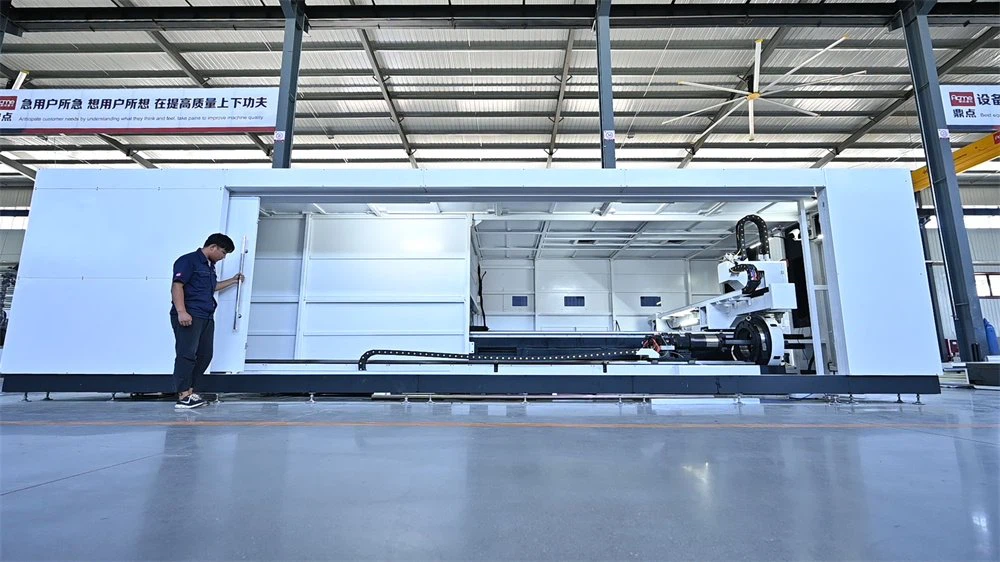

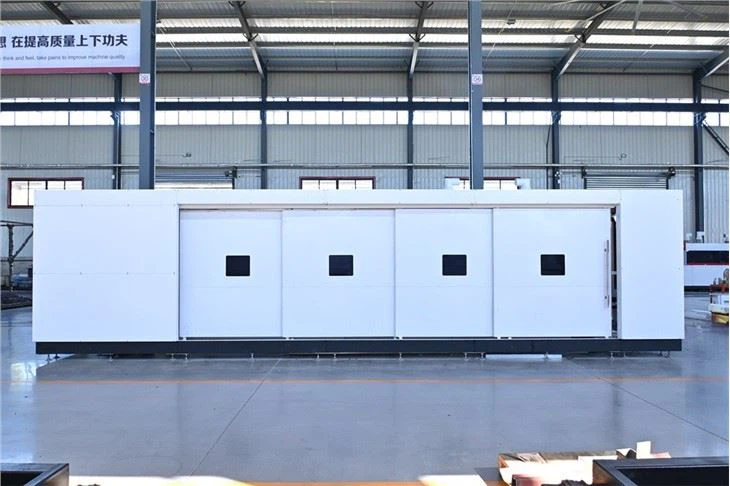

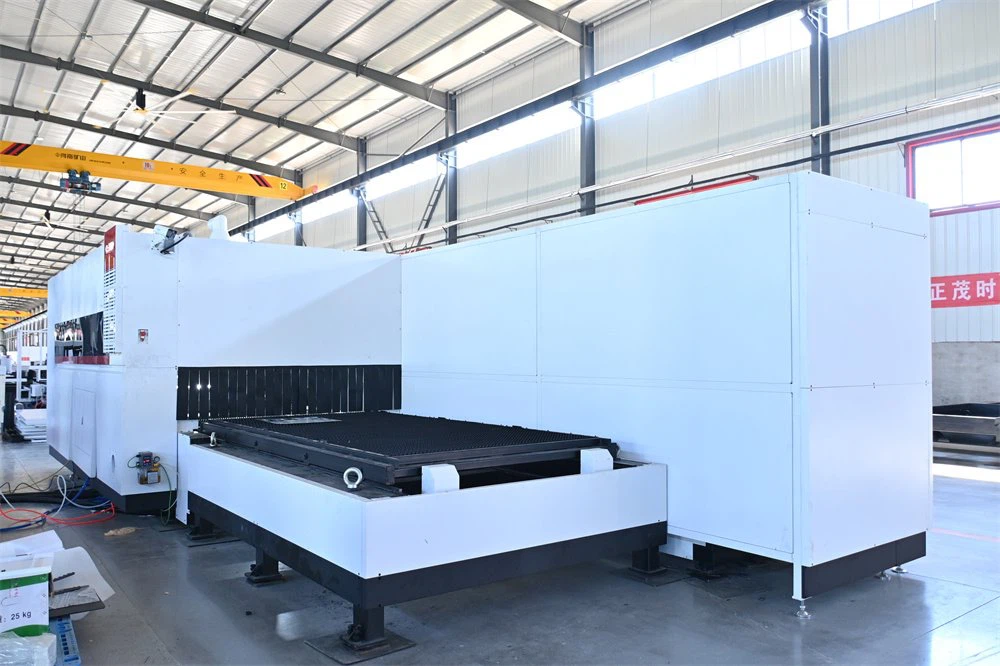

Machine photos
