Metal Tube Fiber Laser Cutting Machine with Semi-Automatic loading & unloading system
Quick Look:
1kw 2kw 3000w laser power can be chosen
LT-6012DB model for 6m length, 10-120mm pipe diameter cutting
Can be equipped with the semi-automatic loading and unloading system

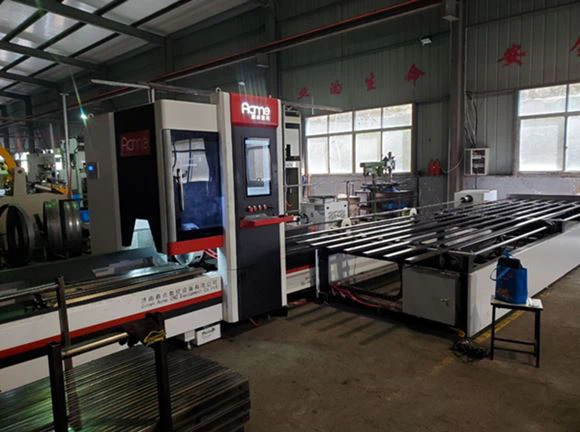

The whole machine in Customer spot
LT-6012D metal tube laser cutting machine
Semi-Automatic loading system for metal tube laser cutting machine
Automatic loading system technical info for metal tube laser cutting machine D model
No. | Parameter Loading | DB model | EA model |
1 | Feeding pipe length | L≤6200mm | L≤6200mm |
2 | Tube Type | 1. Closed pipes, square pipes, round pipes, rectangular pipes and other pipes that are convenient for clamping 2. Non-closed pipes, channel steel, angle steel, H-shaped steel and other convenient clamping pipes | 1. Closed pipes, square pipes, round pipes, rectangular pipes and other pipes that are convenient for clamping 2. Non-closed pipes, channel steel, angle steel, H-shaped steel and other convenient clamping pipes |
3 | Pipe section size | ≤100x100（Square Section） | ≤200x200（Square Section） |
4 | Bearing Weight | ≤650kg | ≤1400kg |
5 | Tubes Quantity（eg. square tube 50x50mm） | 11pcs | 15pcs |
6 | Maximum drag speed of feeder | ≤16m/min | ≤15m/min |
7 | Maximum feeding speed of feeder | ≤28m/min | ≤38m/min |
8 | Feeding Time | 15S | 15S |
9 | Loading system total Size | 6410mmX1650mmX830mm | 6552mmX3507mmX1271mm |
10 | Loading system total Weigtht | 0.8T | 2.2T |
11 | Power | 2KW | 3.2KW |
12 | Matched machine | 6m D model tube laser cutting machine | 6m E model tube laser cutting machine |
13 | Curvature of loading material | The curvature of the profile shall not be greater than 2mm per meter, and the total curvature shall not be greater than 0.15% of the total length (refer to national standards) | |
