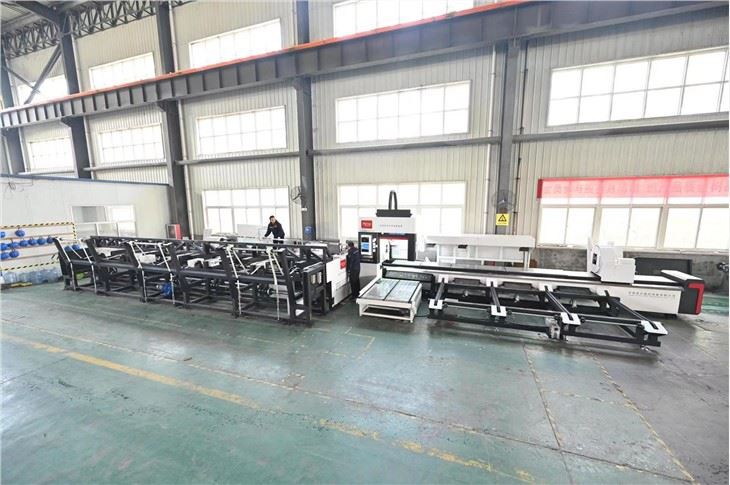

Three-Chuck Pipe Fiber Laser Cutting Machine
Video for Three-Chuck Pipe Fiber Laser Cutting Machine
Pictures for Three-Chuck Pipe Fiber Laser Cutting Machine
Machine Features
Strong tolerance, suitable for various types of metal pipes.
Intelligent operating system with rich cutting functions.
Intelligent chuck, super clamping.
Follow-up servo support, accurate positioning and efficient cutting.
Three-Chuck linkage to achieve real zero tailings.
15S automatic feeding design.
Technical Parameters
| No. | Performance | Parameter | Performance | Parameter |
| 1 | Item No. | LT-12035GA | Repeat Position Accuracy | ±0.05mm/1000mm |
| 2 | Max. Cutting Tube Length | 12100mm | Max. Rotating Speed | 60r/min |
| 3 | Cutting Tailing | ≥0mm | Max. Acceleration | 1.0G |
| 4 | X Axis Travelling | 800mm | Chuck Bearing Weight | 1.2T |
| 5 | Y Axis Travelling | 13400m | Max. Feeding Speed | 60m/min |
| 6 | Z Axis Travelling | 400m | Auxiliary Gas | Oxygen, Nitrogen, Air |
| 7 | Position Accuracy | ±0.05mm/1000mm | Power Supply | 380v50Hz±10% |
Details for Automatic Loading Device
15s automatic feeding patent design: Dingdian feeding mode, the bed feeding machine is seamlessly connected, cutting and feeding are carried out at the same time, one person can guard multiple equipments, saving labor and improving efficiency.
Performance advantages: a feeder with the strongest stability, chain drive, stable structure, suitable for batch processing; 80mm diameter drive shaft, good rigidity.
It can adapt to load 350mm Heavy-duty tubes.
| Automatic Loading Device Parameter | ||||||||
| Parameter Loading | LT-12035GA | |||||||
| Feeding pipe length | L≤12100mm | |||||||
| Tube Type | square, round, rectangular, channel steel, angle steel, H I L Beam steel and other convenient clamping pipes. | |||||||
| Pipe section size | ≤250x300(Square Section) | |||||||
| Bearing Total Weight | ≤4500kg | |||||||
| Maximum drag speed of feeder | ≤11m/min | |||||||
| Maximum feeding speed of feeder | ≤36m/min | |||||||
| Feeding Time | 15S | |||||||
| Loading system total Size | 12306×3943×1362mm | |||||||
| Total Power | 6KW | |||||||
Cutting Diameter
Cutting Samples
Three-Chuck Pipe Fiber Laser Cutting Machine cut 175x175x12mm H beam.
