Tube Laser Cutter 6M length for cutting round tube,square tube,profile
Production Ditails
| Control system | Cyptube |
| Laser source | IPG |
| Laser head | Raytools |
| Servo motor | YSAKAWA |
| Chuck | Double pneumatic chucks |
| Nesting software | LANTAK |
| Positioning accuracy | 0.03/1000mm |
| Repeat positioning accuracy | 0.03 |
Applicable materials
What the materials applied for optical fiber laser cutting machine ?
Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Gold, Silver, Titanium, Metal, Sheet Plates, Tubes and Pipes, etc.

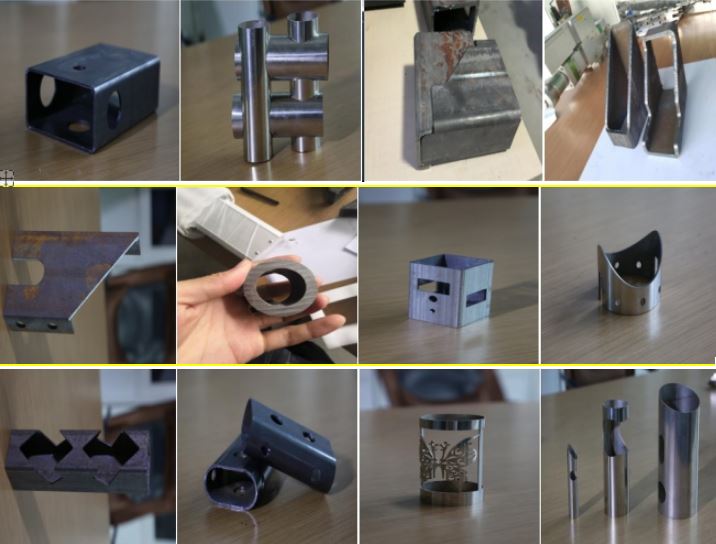

Cutting samples
Configuration Advantage
Machine bed is welded from whole steel panel; thickness from 16mm to 25mm.It is milled, treated and welded by Italy GOLCAR with high accuracy machining centers.
There are 7 sets of Yaskawa servomotors on the machine, including 3 sets of 4.5kw
Large diameter self-centering pneumatic chucks.
The acceleration can be 1.2G, max, travelling speed 100m/min.
Taiwan YYC helical rack, 5 level accuracy 3MM teeth width,good intensity, accuracy and working life.
Taiwan Hiwin 35mm width rails.
Control panel is attached by side of the machine which is accordance with ergonomics
Nut holes more than 4mm diameter are tapped by Italy COLGAR.
The machine is with back chuck air blow, the former chuck vacuum design, so that the machine can work in more harsh environments to extend the service life of the chuck.
Specifications
| NO | ITEM | LT6020 HEAVY SPEC. | |
| 1 | Fiber Laser Source | RAYCUS China | |
| 2 | Laser Cutting Head | RayTools Swiss | |
| 3 | CNC Cutting System | CypCut TubePro China | |
| 4 | Cutting Head Height Control System | CYPCUT BCS100 China | |
| 5 | Nesting Software | CypNest China | |
| 6 | Water Chiller | Tongfei China | |
| 7 | Air-Condition for electric control cabinet | Tongfei China | |
| 8 | Servo Motor System | YASKAWAx5 Japan X axis 1000W, Y axis 4400KW, Z axis 400W, W1 axis 4400W, W2 axis 3000 | |
| 9 | Chuck | Type | Double Pneumatic Chucks Auto-centering Four Claw Double Move |
| Tube Diameter(mm) | Round: φ20-φ220 Square: 14x14mm--150x150mm Rectangle:15x20mm--82x193mm Oval, Waist Round and other tube shapes, circumcircle diameter range 20-220mm | ||
| MIN. Tail Length(mm) | 200 | ||
| Rated Rotation Speed(r/min) | 80 | ||
| MAX. Rotation Speed(r/min) | 120 | ||
| Bearing Capacity(Both) | 500Kg | ||
| 10 | X AXIS | Travel | 500mm |
| No-Load Rated Speed (m/min) | 57 | ||
| No-Load MAX. Speed (m/min) | 114 | ||
| 11 | Y AXIS | Travel(mm) | 6800 |
| No-Load Rated Speed (m/min) | 80 | ||
| No-Load MAX. Speed (m/min) | 120 | ||
| 12 | Z AXIS | Travel (mm) | 180 |
| No-Load Rated Speed (m/min) | 30 | ||
| No-Load MAX. Speed (m/min) | 60 | ||
| 13 | Guide Rail | TAIWAN 35mm, 25mm | |
| 14 | Transmission Gear and Rack | X-axis YYC Taiwan Helical Rack Y-axis YYC Taiwan Helical Rack Z-axis TBI Taiwan Ball Screw | |
| 15 | Motor Reducer | MOTOVARIO France | |
| 16 | Positioning Accuracy | ±0.03/1000mm | |
| 17 | Repeat Positioning Accuracy | ±0.02mm | |
| 18 | Electrical Parts | SCHNEIDER France | |
| 19 | Pneumatic Parts | SMC Japan | |
| 20 | Gas Exhaust Fan | Acme | |
| 21 | Tube Lifter | Big Adjustable Support Wheel | |
| 22 | Tube Feeding | Back or Side feeding system | |
| 23 | Fully Automatic Feeding System | Optional (NOT INCLUDE IN PRICE) | |
| 24 | Dust Removal and Filtration System | Optional (NOT INCLUDE IN PRICE) | |
| 25 | Machine Structure/Body | Heavy type. 16-20mm whole steel panel overall welded, heating, annealing, sand blasting, painting, roughing, milling etc. A series precision finish machining. | |
| 26 | Machine Overall Size | 11100*1674*2278 mm (L*W*H) | |
Quality Guarantee:
We arrange final test before shipment.After making sure machine is the best performance , then make the shipments.
Service:
1.The Manual will be provided to you for installation&Usage service.
2.If necessary, our technician is available to your factory and offer training.
As well, welcome to come our factory for detailed study.
Delivery details: Shipped in a months work days after payment.
Transportation way:1) By sea 2)By land 3)By rail
Company introduction
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4:How long does it take to learn how to operate a laser cutting machine?
If you are able to use some basic CAD software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.
Welcome to contact us if you have any request.
