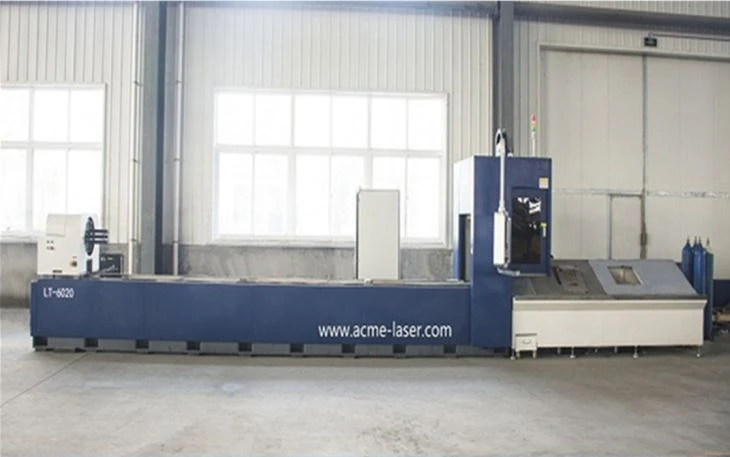

ACME Laser customer used laser tube cutting machine with fully automatic loading and unloading structure is controlled by CNC system, our patent technology, achieving seamless connection with the pipe cutting machine. Whole bunches of pipes loaded by special device designed by us, and CNC system will intelligently distribute the pipes. Fully conveying process greatly saves labor cost and enhances efficiency.
Technical Parameters
| Processing Area | Φ20-Φ230mm*6500mm □20*20-□200*200mm*6500mm |
| Laser power | 500W-4000W |
| Max. moving speed | 100m/min |
| Max. acc. speed | 1.0G |
| Positioning Accuracy | 0.05mm/m |
| Reposition Accuracy | ±0.05mm |
| Chuck loading weight | 500Kg |
| Loading way | Patent Back Loading System |
Cutting Samples
Professional for square pipe, round pipe, rectangle pipe, oval pipe,triangle tube, waist-shaped pipe and D-shaped pipe and hexagon pipe cutting. 0.5-25mm carbon steel pipe (thicknesses are related to the shape of materials and fiber source power)
