CNC TURRET PUNCHING MACHINE

CNC TURRET PUNCHING & LASER CUTTING COMBINED MACHINE PRICE

CNC Servo Turret Punch Machine 32stations/24stations & CNC Fiber Laser Cutting Machine

All-Electric Servo CNC Turret Punching Machine & CNC Fiber Laser Cutting Machine.

New Technology laser cutting and punching two in one combined machine for sale.

turret punching machine_

turret punching machine4

CONFIGURATIONS AND PARAMETERS

Name	All-electric Servo CNC Laser Turret Punching-Cutting Machine
Brand	Acme Laser-Zhihang Series
Punching type	Servo
Control System	Punching-cutting composite system (patent exclusive technoogy)
Laser Source	IPG / MAX 1000W 1500W 2000W 3000W
Laser Head	Raytools (Switzerland)
Machine Bed	Closed structure, steel plate welding, heat aging treatment, finishing treatment
Water Chiller	TongFei(China)
Servo Motor System	YASKAWA (Japan)
Guide Rail	PMI (Taiwan)
Ball Screw	TBI(Taiwan)
screw bearing	NSK(Japan)
Punch Servo motor system	BONFIGLIOL(Italy)
Electrical components	Schneider (Fance) / Omron (Japan)
Pneumatic components	AirTAC(Taiwan)
Punch force	300KN(T)
Processing sheet size (with one re-positioning)	1500/2000*5000mm
Max. sheet thickness	6.35mm
Max. punching diameter	Φ88.9mm
Max. punching speed	1500hpm
No. of clamps	3pcs
No. of stations	National standard thick turret 32 station
Rotary die station B/C	1B,1C
No. of controlling axis	6pcs
Max. feeding speed	100m/min
Turret rotation speed	30rpm
Processing accuracy	±0.10
Max. loading weight	150kg
Air pressure	0.6-1.0mpa(Air cutting pressure is greater than 1.6)
Red light positioning	√
Centralized automatic oiling	√

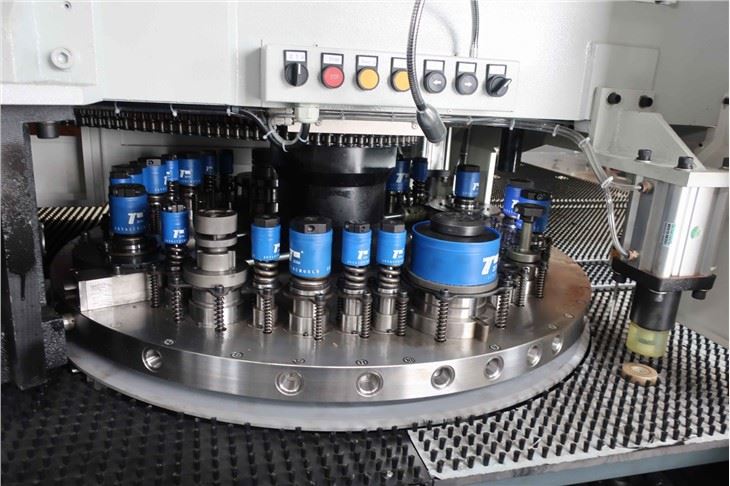

Turret structure	80mm thick turret whole high strength ductile iron material
Dimension	5300x5100x2200mm
