Description

Technical Parameters

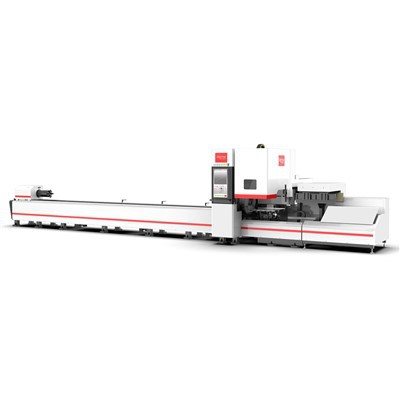

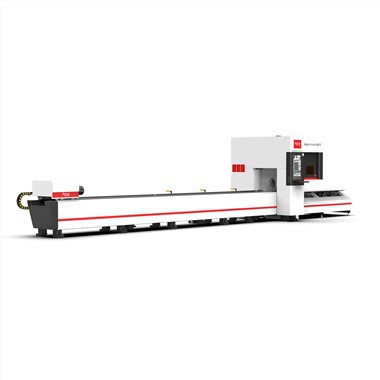

1000W pipe laser cutting equipment introduction

Provides an ideal solution for small-sized pipes and profiles.
▶Zero Pendulum length 45°bevel technology:The laser head nozzle is positioned at the rotation center,eliminating theneed for back-and-forth feeding of pipes,thus avoiding deformation caused by repeated clamping during material handling.
▶Rich bevel cutting processes:Adapts to various bevel types without the need for secondary processing,making welding more convenient.
▶Motion acceleration can reach up to 1.5G with fast response speed.The chuck rotation speed is high,up to 200 r/min,ensuring excellent dynamic performance.
▶The middle chuck can move forward to avoid obstacles,improving cuting precision and reducing waste material.The minimum waste length is just 35mm.
product-590-414

Main models for 1000w pipe laser cutting equipment

Model

VFKA120

VFH120

VFKA180

Laser power

1-6kw

Tube diameter

8-120mm

10-180mm

Processable pipe length

≤6800mm

Cutting end material

≥35mm/≥0mm

Chuck speed

200r/min

100r/min

Dimension

10990*3594*2145mm

10990*3710*2145mm

10990*3594*2145mm

Tube Types

Squarepipe,roundpipe,rectangularpipe,I-beam,H-beam,anglesteel,channelsteeland specialpipefittings,etc

*Product appearance,parameters,performance description,comparison data is for reference only,the final in kind shall prevail!

product-590-414

Specification for 1000w pipe laser cutting machine

	Top MAX Laser Source . China Famous Top Brand . Higher Photoelectric Conversion Rate . Outstanding Light Beam . Higher Energy Density . Free Maintenance and Longer Service Life
	Zero-Arm Rotary Mechanism 1. Reduce the length of the mechanical pendulum; 2. Enhance the mechanical rigidity of the balance shaft; Very friendly to the beveling process of small and medium- sized tubes pipes
	Top Fscut 3000DE Bus Control System . More accurate control, faster response, more powerful function and more stable performance, ensure higher efficient and accurate cutting . Higher Performance and easier operation . Very high market share, excellent customer reputation . Support wireless control handle . Support touch screen operation
	Patent 8 cylinders Pneumatic Chuck #Square hole design, stronger passing ability; #The clamping force can be adjusted. intelligently, suitable for different types of pipe processing requirements; #The clamping range of full stroke, without manual adjustment; #With an eight-cylinder structure, the clamping force is twice that of ordinary chucks; #Precision grinding gear drive, stronger power and higher efficiency; #The highest level of dustproof, stronger stability #The rear chuck can go inside front chuck make short tube tailing
