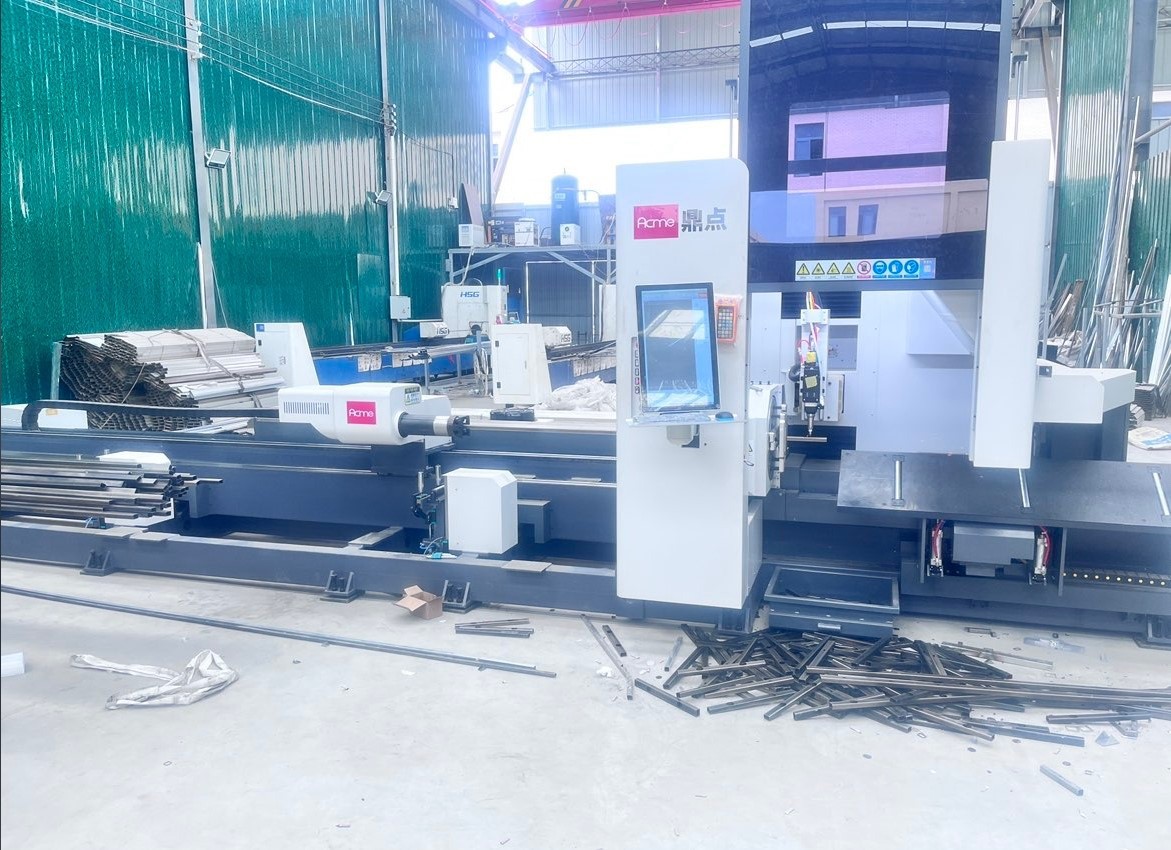

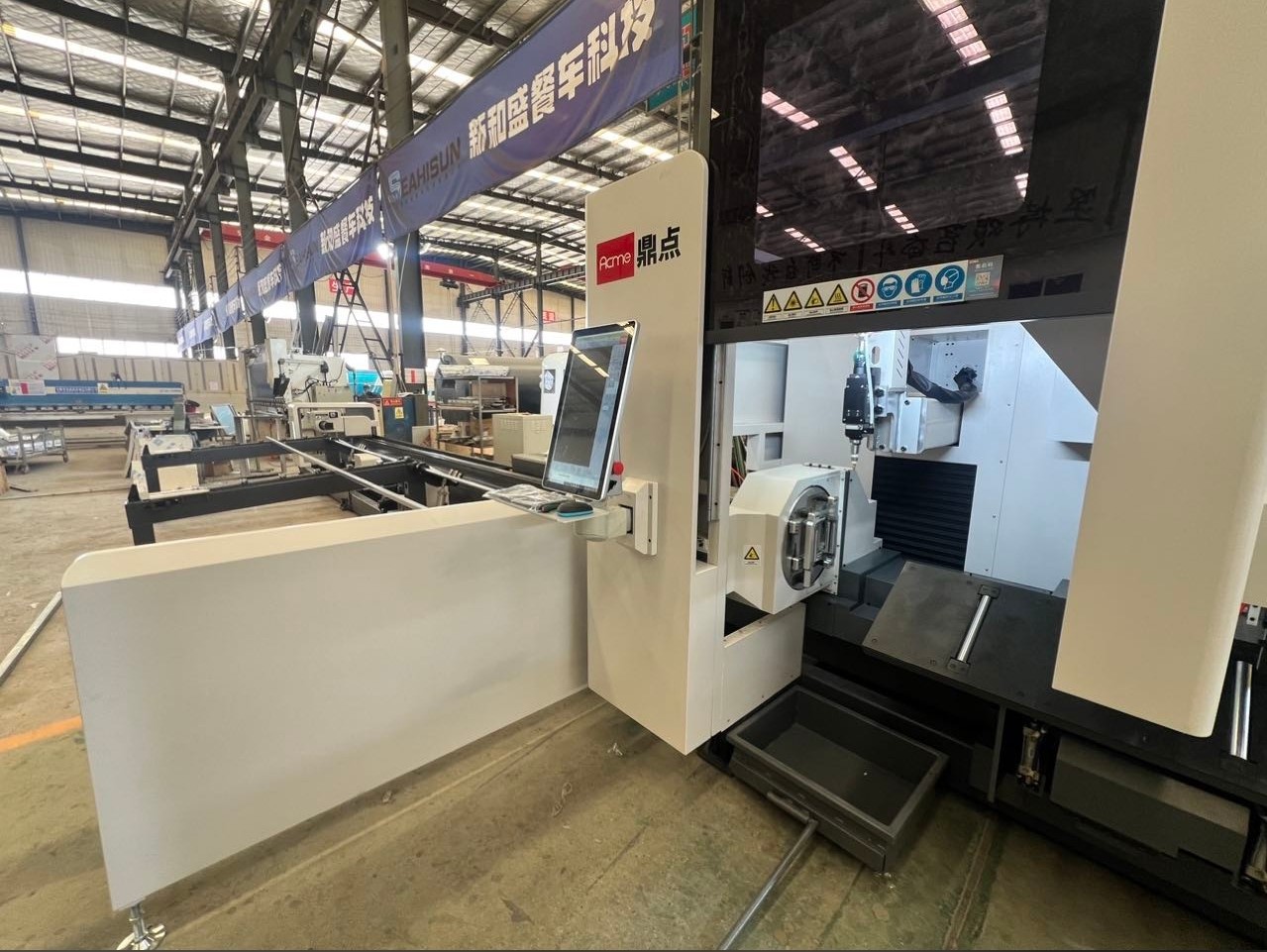

1500W Pipe Laser Cutting Equipment

1

LASER SOURCE

MAX

3000W

2

CHUCK

DIAMETER (mm)

120mm

MAX. ROTATION

(r/min)

200

WEIGHT BEARABLE

(kg)

200

3

X

TRAVEL mm)

200

TRAVELLING MAX. SPEED (m/min)

120

4

Y

TRAVEL (mm)

7800

TRAVELLING MAX. SPEED (m/min)

120

Z

TRAVEL (mm)

530

5

TRAVELLING MAX. SPEED (m/min)

60

6

MAX. PIPE LENGTH (mm)

6500

7

Tailing wastage

WASTE LENGTH (mm)

>35mm

8

POSITIONING ACCURACY

±0.05 / 1000mm

9

REPEAT POSITIONING ACCURACY

±0.03mm

10

ACCELERATION

1.2 G

11

VOLTAGE

380V / 50HZ ± 10%

12

AUXILIARY GAS

Compressed air, Oxygen, Nitrogen

New generation automatic loading system

.15s Efficient Automatic loading patented technology with more stable, efficient and easier loading and unloading.

. Servo loading, the loading position is accurate, and closely matched with the bed well.

. High-strength and high-precision chain drive, stable structure, stable and efficient mass processing; compact and scientific design, saving manpower and improving efficiency.

. Effectively Help you save labour and create more profits.

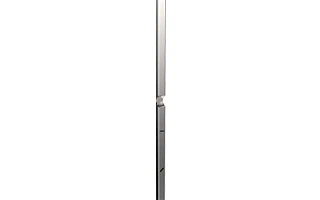

. It can be customized flexibly according to the length of the customer's metal working and workpiece. Many different types of tubes and pipes are available (Round pipe, square tube rectangular tube, D pipe, hexagonal pipe, U channel, L section etc .)
