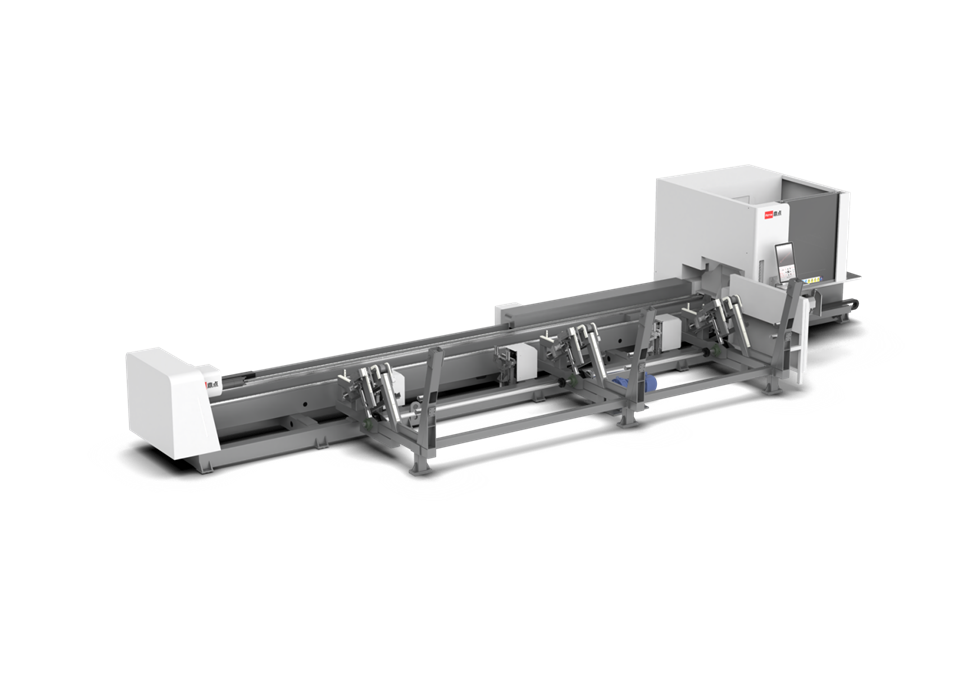

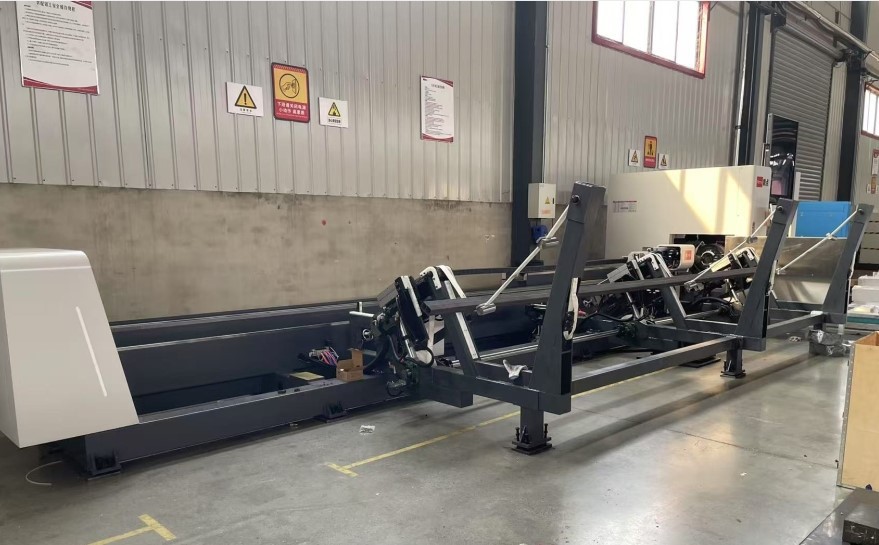

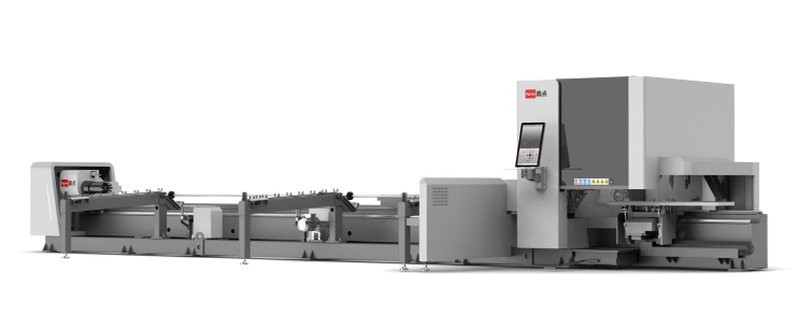

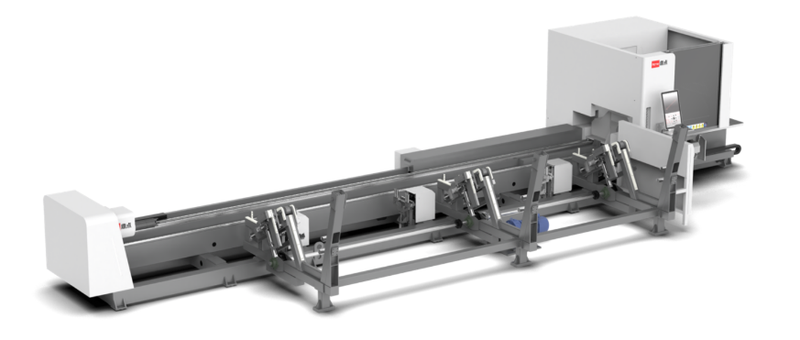

2000W Tube Laser Cutting Equipment

NO.

Performance Index

Parameters

Performance Index

Parameters

1

Model

LT-6018VFA

Floor area

11790×3594×2145mm

2

Cutting tailing

≥35mm/≥0(Optional)

Cutting pipe diameter

Calibre Φ/10-170mm

3

Chuck speed

100r/min

Maximum travel speed of the chuck

130m/min

4

Y-axis travel

7950mm

Overall weight

3.3T

5

X-axis travel

200mm

Maximum acceleration

1.5G

6

Z-axis travel

530mm

Equipment load-bearing

300kg

7

Maximum loading length

6700mm

Control system

Bochu Bus System

8

Minimum loading length

4000mm

Maximum Unloading Length

2500mm

9

X and Y axis positioning accuracy

±0.05mm/1000mm

Front Chuck

Can be moved forward 1000mm, pneumatically driven; one-piece chuck

10

Repeatable positioning accuracy of X and Y axis

±0.05/1000mm

Circuits and Protection Systems

Designed according to CE standard

11

Power supply

380v50Hz±10%

Supported file formats

Solidworks,Pro/e,UG等

12

Software

Tubest Professional Pipe Nesting Software

Cooling system

Thermostatically controlled chiller for laser machine (external)

13

Auxiliary air

Oxygen, nitrogen, air

Cutting pipe diameter

Round 10-170mm

Square 10-170mm

Technical Supplementary Notes:

1. Other specification materials, processing capacity, must be communicated with our company to confirm;.

2. H-beams need to be equipped with pointed cutting head and corresponding nesting software.

3. Due to the influence of jaws and material characteristics, some specifications may not be processed.

4. Processing workpiece should be free of serious corrosion, corrosion will affect the quality of the cut section, pipe to reduce the open storage, placed neatly, reduce the surface bump, pipe requirements straight, reduce bending, twisting, to ensure that the front end of the flush, due to the bending of interference exceeds the relevant standards, the equipment can not guarantee the cutting effect;

5. Pipe loading should pay attention to the safety of personnel and equipment, bundles of loading needs to be carried out using a travelling car;

6. Party A shall regularly maintain the machine as required;

Note: With the technology/configuration changes, the technical parameters will be changed accordingly, the final to the actual order agreement shall prevail.

No.

Name

Qty

Brand

1

Laser source

1PC

MAX (3000W)

2

Laser head

1PC

BOCI BLT-310T Auto-focus

3

Cutting Systems

1SET

Bochu Bus System FSCUT 3000 with bevel function

4

V-Series Chucks

2PCS

ACME Innovative smart chuck (180mm chuck)

5

Composite "2+1" clamping accessories

ACME self-developed (optional)

6

Machine body

1SET

ACME Standard

7

Electrical Controls

1SET

Schneider, Chint

8

Pneumatic control

1SET

SMC, Airtac

9

Precision linear guides, screw rods

1SET

Taiwan Tiwin

10

Precision gears and racks

1SET

Taiwan Tiwin

11

Machine accessories

1SET

ACME Optional

12

Servo motors and drives

1SET

INOVANCE

13

Reduction gears

1SET

Motoreducer/ Fastems/equivalent

14

Answer parts

1SET

ACME Standard 2m

15

Chiller

1PC

Hanli / S&A

16

Nesting Software

TubesT Nesting software

17

Loader

1SET

A Model

18

Unloader

1SET

ACME Optional

19

Pipe supports

1SET

Full-stroke servo support

20

Dust fans

1SET

ACME

21

Cloud Services

1SET

ACME Standard

Note: Due to special reasons product configuration out of stock, the company has the right to change the same configuration of the device. If the customer purchases the configuration as above, must purchase the same designated brand and model, if any changes to the machine caused by the impact of the customer is responsible for.
