3000w tube Laser Cutting Equipment Advantage:

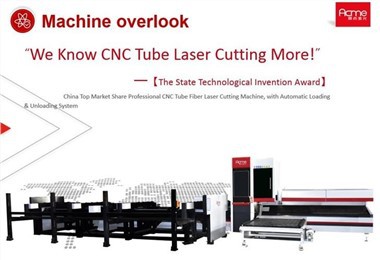

3000w Tube Laser Cutting Equipment, VF series two-chuck side-mounted laser tube cutting machine LT-6012VFK, mainly used for medium-sized metal pipe bevel cutting, modelling, feeding, equipped with automatic loading machine, loading length of ≤ 6800mm, suitable for 8-120 mm diameter pipe cutting,15-120mm diameter for bevel cutting, such as square, round, rectangular, oval, elliptic, flat elliptic and other closed tubes, channel steel, H-steel, angle iron and other profiles, as well as other The products have strong cutting ability. The products have strong cutting ability, fast cutting speed, high precision, strong stability, low operating costs and strong adaptability.
Zero-swing long bevel technolog for 3000w tube laser cutting equipment: ±45° small pipe bevel cutting, a variety of bevel types can be competent, without secondary processing, cost reduction and efficiency. The cutting nozzle of the laser head is located in the centre of rotation, so the cutting precision is higher. The cutting nozzle coincides with the centre of oscillation of the cutting head, which is more stable and precise to cut according to the preset trajectory and parameters. At the same time, it does not require the pipe to be fed back and forth, especially when cutting small pipes and thin-walled pipes, which prevents the thin-walled pipes from deformation during repeated pulling and clamping, and the bevel cutting precision is higher.
Small pipe beveling process: the cutting section is smooth, preventing the bevel from being out of round, jittery and other problems, reducing the burr and hanging slag site of the bevelled section, and meeting the demand for high-precision welding of small pipe bevels.
High dynamic performance: motion acceleration up to 1.5G, also equipped with 120mm high speed fully enclosed chuck, speed 200r/min, than ordinary models, cutting efficiency increased by more than 50%.
Avoidance techniques: the chuck is divided into front and back 2 pneumatic chucks, both can be moved in the Y direction indicated by A and B. A chuck is responsible for feeding materials, B chuck is installed in the middle of the bed, used for clamping materials used to move forward 1000mm, to protect the cutting accuracy and improve production efficiency.
V-Series Chuck
Good dynamic performance: lightweight design, fast rotation speed, small chuck inertia, fast response speed.
Composite "2+1" clamping (optional):Chuck is equipped with two sets of inner and outer rollers and auxiliary clamps for combined clamping, effectively avoiding problems such as deviation, shaking, and deformation of the workpiece.With servo drive and avoidance technology,it is easy to realize two-chuck zero-tailing cutting
Centring clamping device: centring clamping device, chuck and servo-following with loading, preventing workpiece flinging and guaranteeing processing accuracy.
Side-mounted bed: ACME VF series bed adopts side-mounted structure with low centre of gravity for more stable processing.
Servo-following support: 3 groups of independent motor-controlled servo-following support can effectively reduce vibration and error to meet the demand for high-precision cutting. Good followability, large and small pipe can be competent, with the system of intelligent loading and unloading;
Automatic loading and unloading: embedded bed, high space utilisation, strong stacking load-bearing capacity, chain structure, modular design, good stability and high safety.
