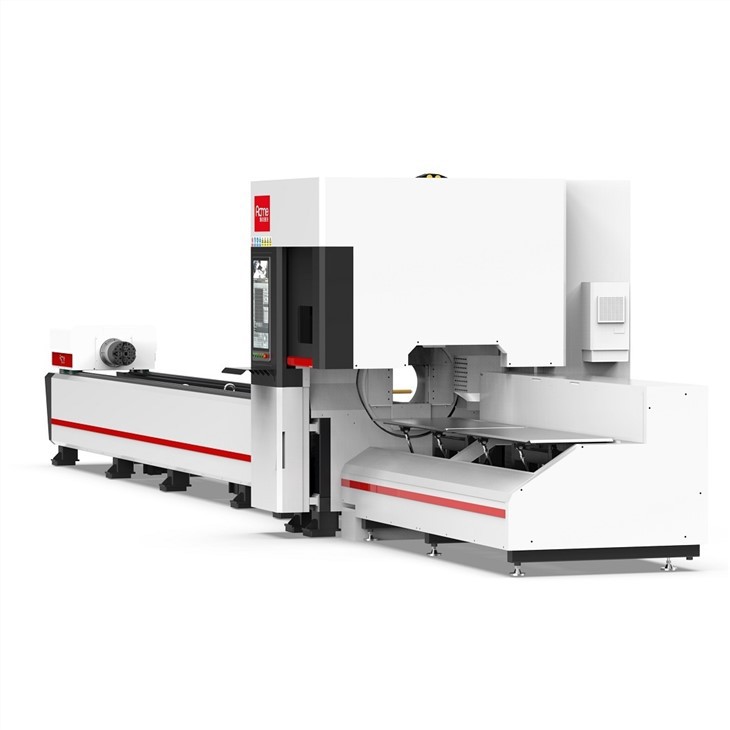

2000W Tube Laser Cutting Machine
Advantages of 2000W Tube Laser Cutting Machine
Reducing the tail length.
It is mainly to solve the precision problem of long workpieces processing and last workpieces processing. During the processing of long material and the last section of workpiece, the swing of workpiece will affect the processing accuracy.
The tail is less than or equal to 100mm.
Video for 2000W Tube Laser Cutting Machine

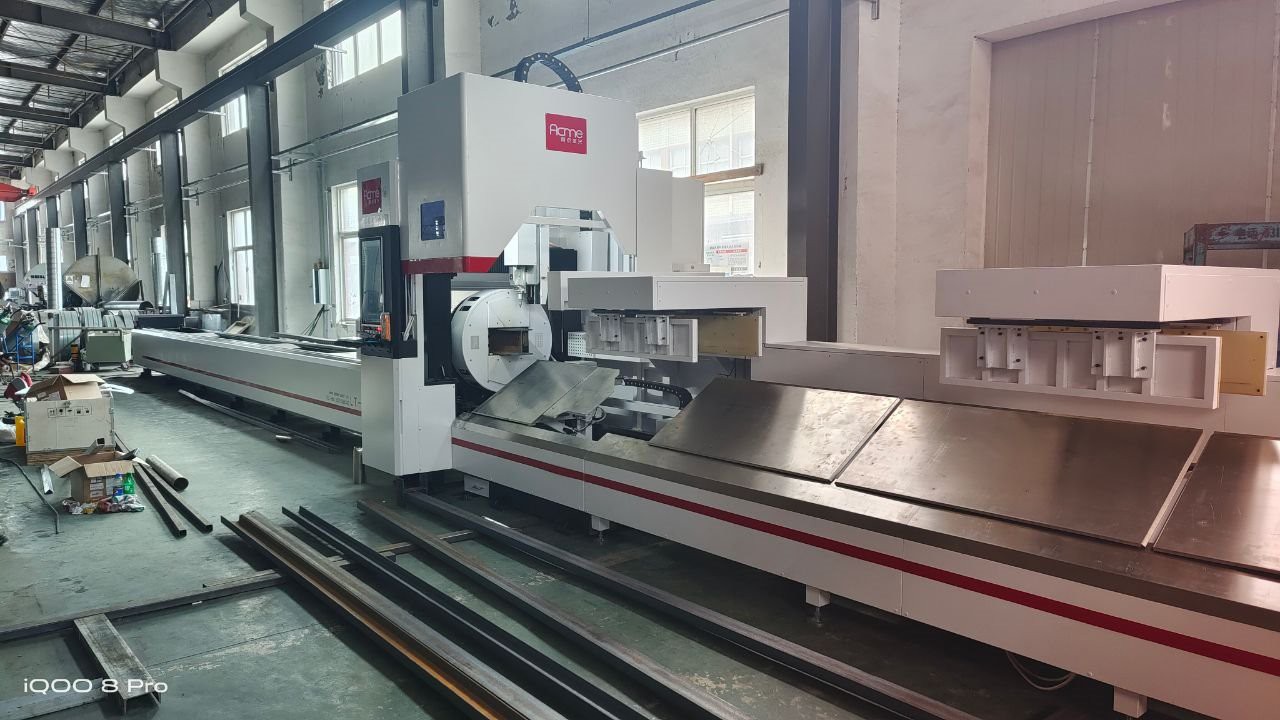

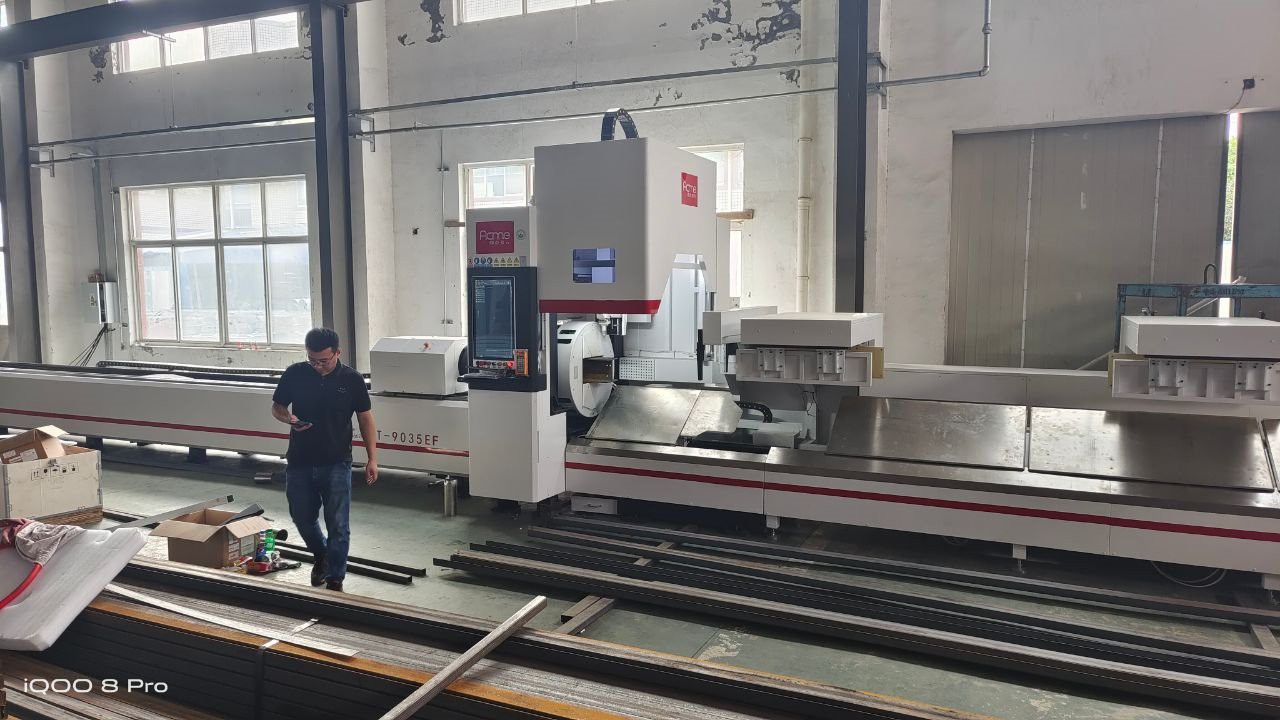

Pictures for 2000W Tube Laser Cutting Machine
Technical Parameters
| No. | Performance | Parameter | Performance | Parameter |
| 1 | Item No. | LT-9035EF | Receiving Length | 3m, 4.5m, 6m etc. |
| 2 | Max. Cutting Tube Length | 9300mm | Moving Distance of Front Chuck | ≤1000mm |
| 3 | Cutting Tailing | ≥0mm | Max. Rotating Speed | 60r/min |
| 4 | X Axis Travelling | 800mm | Max. Acceleration | 1.0G |
| 5 | Y Axis Travelling | 10000m | Chuck Bearing Weight | 800KG |
| 6 | Z Axis Travelling | 450m | Max. Feeding Speed | 60m/min |
| 7 | Position Accuracy | ±0.05mm/1000mm | Auxiliary Gas | Oxygen, Nitrogen, Air |
| 8 | Repeat Position Accuracy | ±0.03mm/1000mm | Power Supply | 380v50Hz±10% |
Main Configurations
| Configutaions | Brand |
| Laser Source | MAX/Raycus/IPG |
| Laser Head | OSPRI LC40 Auto-Focus Cutting Head |
| Control System | CYPCUT FSCUT5000 |
| Cutting Sofeware | CYPCUT TubePro Cutting Software |
| Nesting System | CYPCUT TubesT Nesting System |
| Chuck Diameter | 120mm/170mm/250mm/350mm |
| Servo Motor | Japan Panasonic / Yaskawa |
| Reducer | Japan Shimpo |
| Tube Support | Servo Floating Support |
| Taiwan YYC | Taiwan HIWIN |
| Helical Rack | Taiwan YYC |
| Pneumatical Parts | Japan SMC |
| Electrical Parts | France Schneider |
| Water Chiller | HANLI / S&A |
| Receiving Platform | 3m, 4.5m, 6m |
| Power Supply | 380V,50HZ±10% |

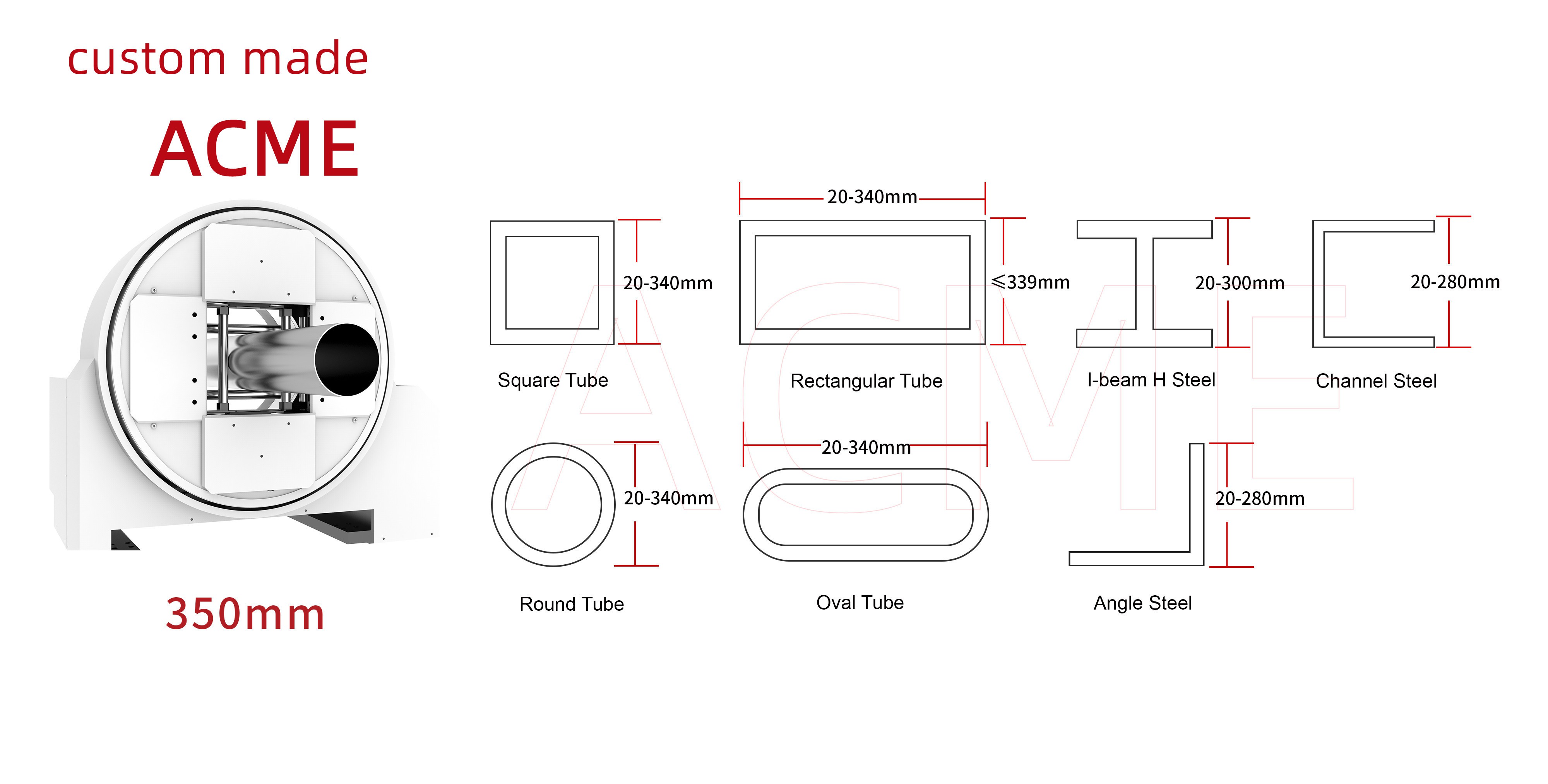

Chuck Diameter

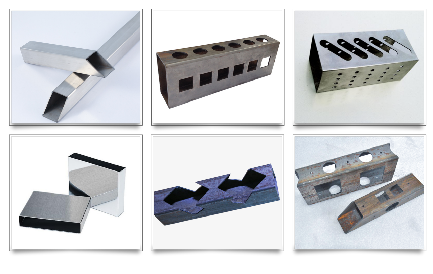

Cutting Samples
