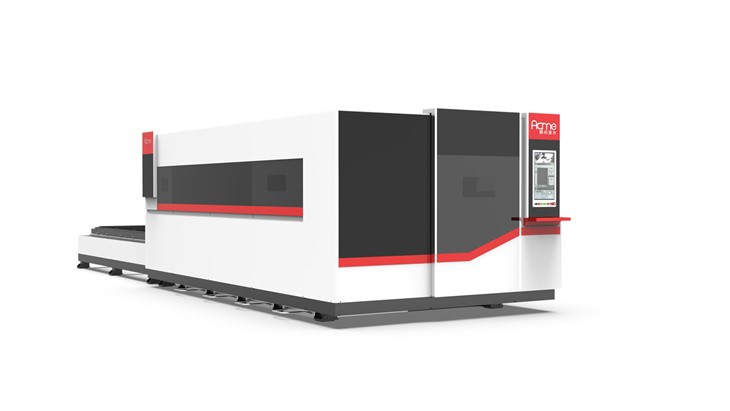

3000W Sheet Laser Cutting Machine

Model

LP-3015D

Laser Power

3kw- MAXPHOTONICS

Max working area

3000x1500mm

X-axis travel

1530mm

Y-axis travel

3050mm

Z-axis travel

250mm

X/Y axis positioning accuracy

0.03mm/1000mm

X/Y axis repeat positioning accuracy

0.02mm/1000mm

X/Y axis maximum moving speed

120m/min

X/Y axis maximum cutting speed

50m/min

X/Y axis maximum acceleration

1.5G

Transmission Type

Dual drive rack

Lubrication Type

Automatic self-lubrication system

MACHINE DIMENSION

8752x2870x2350MM

G.W.

6200KG

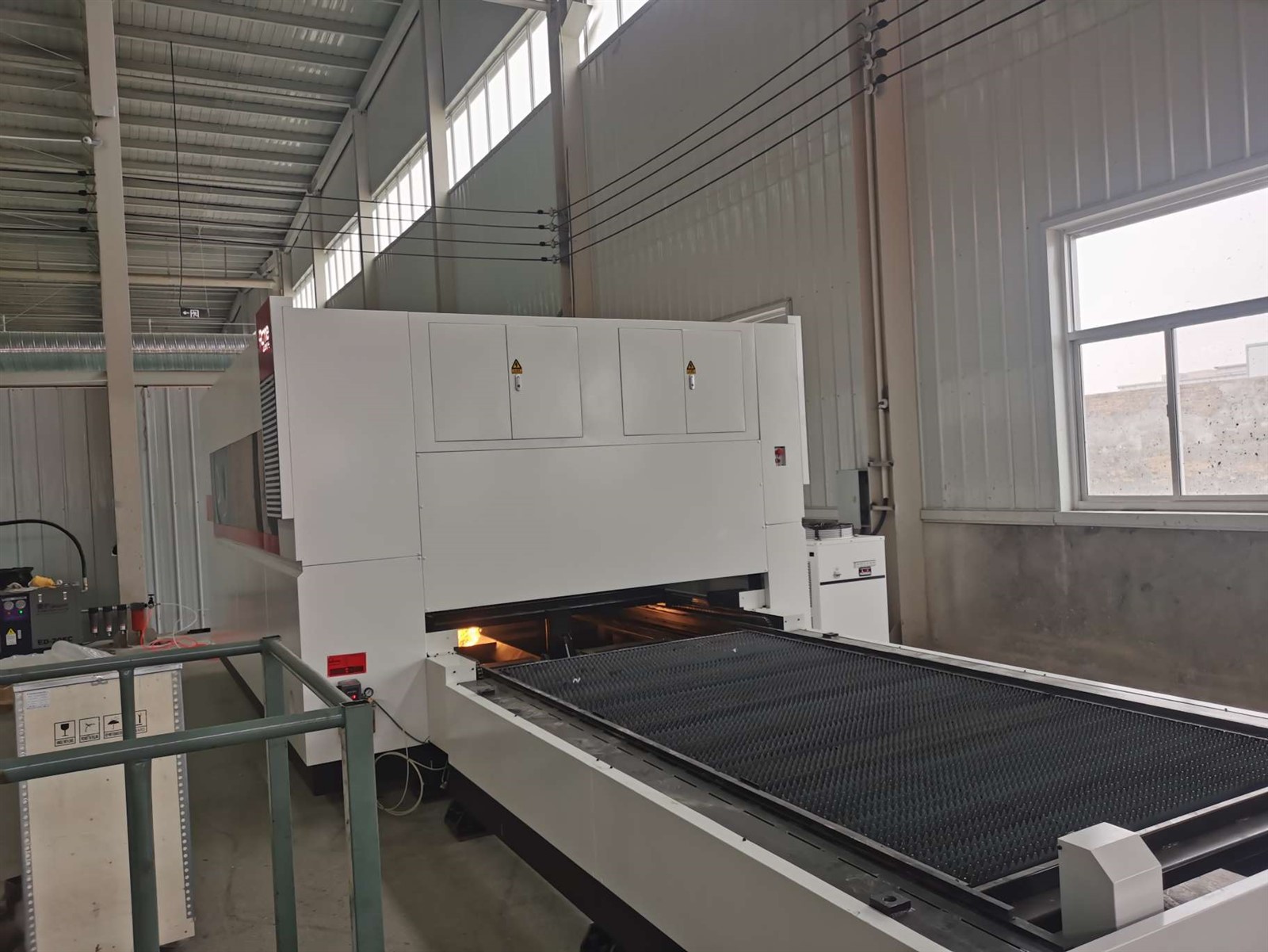

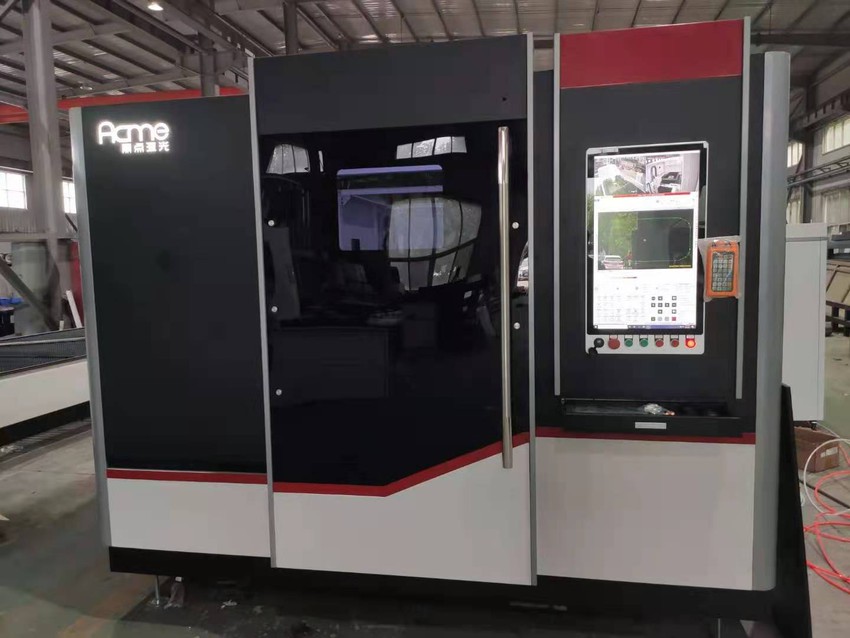

LP-3015D designed for cutting flat metal sheet.

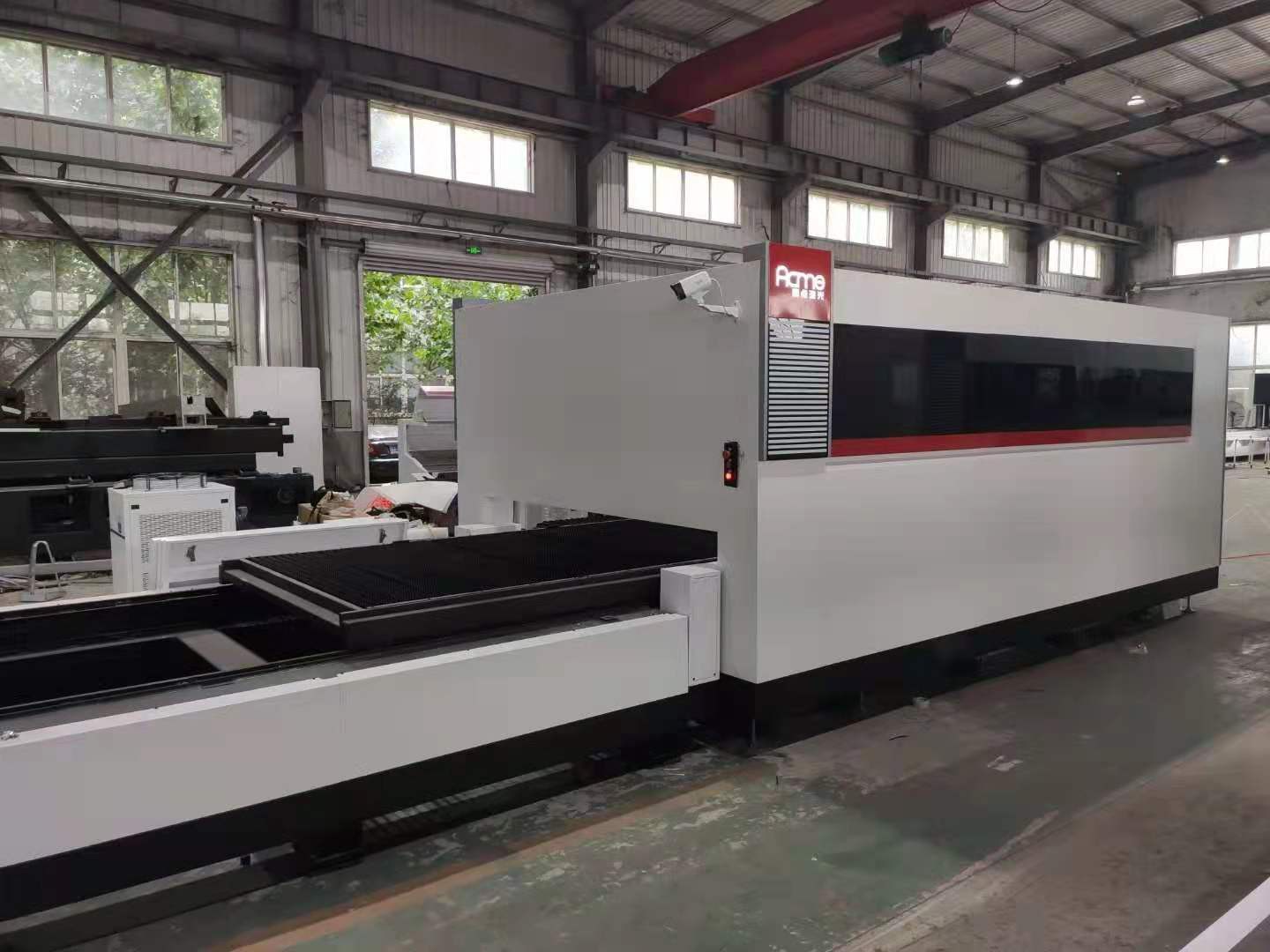

Double exchanged cutting table

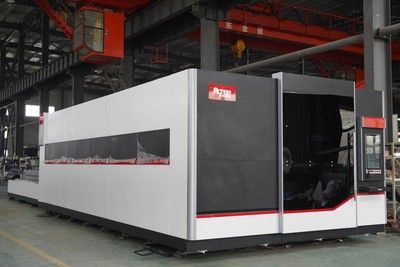

Protection cover fully cl

MAX Fiber laser source

2 years warranty time.

The new fiber laser has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and they apply optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This series of lasers apply to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section.

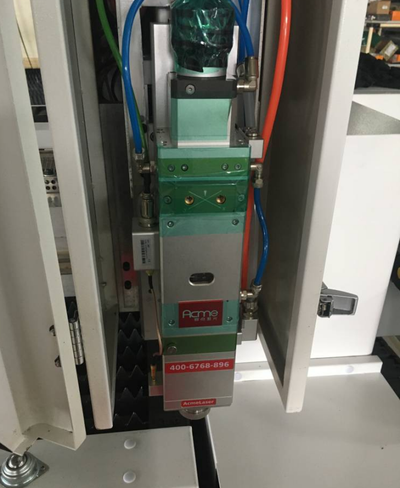

Raytools Auto-focus cutting head

With Anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system.

Perforation speed is one to two times faster than manual focusing. Perforating speed can shorten the cutting time.

Focusing automatically adjust, can directly import the set parameters in the system, it can be used directly, convenient and quick
