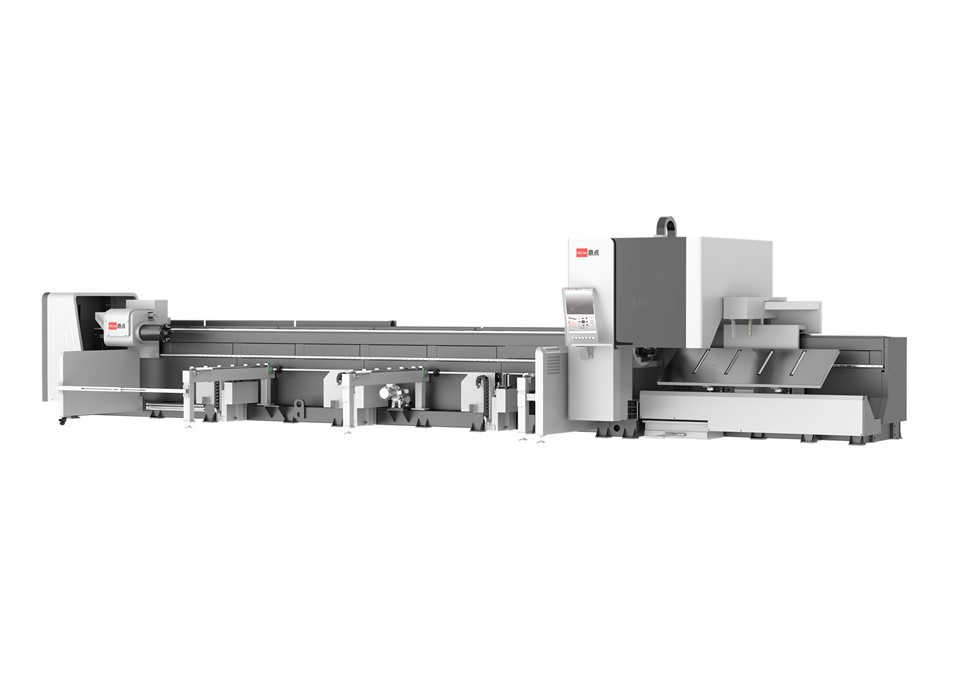

6000W pipe laser cutting equipment
TF Series Tube Laser Cutting Machine | High Precision, Low Tailing
✅ Cutting lengths available: 6m / 9m / 12m
✅ Chuck size options: 230mm / 260mm /280mm/ 360mm
✅ Compatible with round, square, rectangular tubes, as well as angle steel, channel steel, and H-beam
✅ Dual moving chucks for minimum tailing as short as 35mm
✅ Servo-following support system keeps tubes stable during rotation, ensuring cutting precision even on long or heavy pipes Engineered for versatility and high performance.
6000W pipe laser cutting equipment
For the TF model 6000W pipe laser cutting equipment, you can choose the bevel cutting function or without the bevel cutting function.
Today, we will talk about the Male-Femail Joint in the TubesT function.
For machines without bevel cutting functionality, the cutting head remains vertically oriented and cannot produce angled cuts through the thickness of the tube wall section. This results in interference at thick joint areas, and in the case of angle or channel steel, leads to unconnected toolpaths.
To address these issues, you can use the Male-Female Joint feature to automatically adjust the toolpath at thick-walled sections, enabling non-bevel machines to process bevel parts and achieve successful assembly.
How to Use
1. Feature Access
Starting from version 7.1.25, the 【Male-Female Joint 】is available for rectangular tubes.
Starting from version 7.1.39, the 【Half Weld with Male/Female Joint】 mode is supported.
2.Applicable Scope
This feature is intended for processing rectangular tube and channel section using non-bevel machines, especially recommended for 45° tilt cuts (L-shaped joints).
If a beveling machine is used, you can directly identify or generate bevels. Refer to tutorial: Set and Scan Bevels.
Note: Italic texts with blue highlights are clickable tutorial links that lead to detailed parameter explanations and usage instructions.
3.Feature Location
Click Male-Female Joint in the drop-down list of Weld Seam Compensation.
4. Operation Instructions
If you are already familiar with the feature, you can enable 【Auto Technique】:
Configure the parameters before importing parts;
Batch import parts with the same parameter requirements;
The software will automatically apply the appropriate toolpath during import.
6000W pipe laser cutting equipment
