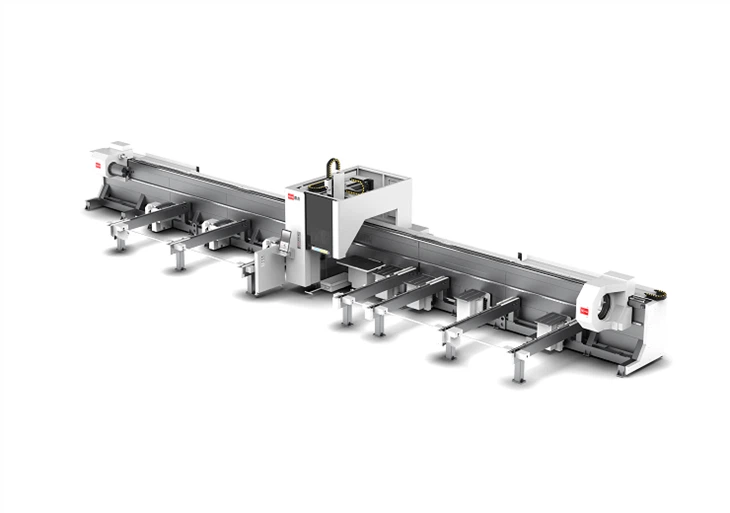

12000W Pipe Laser Cutting Equipment

12000W Pipe Laser Cutting Equipment

Our 12000W Pipe Laser Cutting Equipment is very suitable for the steel structure industry.

In the steel structure industry, there are various H-beam processing, such as V/Y bevels on the flange, bevels on the web, and weld scallops on the web.

H-Beam Bevel and Web Weld Scallop

1. Flange Bevel:

Each of the four flanges can be configured with a different bevel type. If set to Y bevel, you must enter a root face value.

Apply straight cut to V bevel:

If the bevel cut alone can fully separate the Top V bevel during production, this option can remain unchecked.

If the cut is insufficient, enable this option. The system will add an additional straight cut at the V bevel to ensure complete separation. This reduces technique complexity.

2. Web Bevel:

Drawing Dimensions：Affect the actual part size. See diagram below for reference.

3. Weld Scallop:

Outer Radius: Adjust the size of the weld scallop.

4. Fixed Height

Allows the toolpath to get as close as possible to the flange, achieving a minimal root.

Since the kerf is wider, it's recommended to use【Kerf Compensation(fixed height)】in combination.

To use this mode, enable Fixed Height Cut and set a height value in the cutting software (i.e., TubePro or FACut-H).

The nozzle should be higher than the flange edge during cutting.

Fixed Height Method
