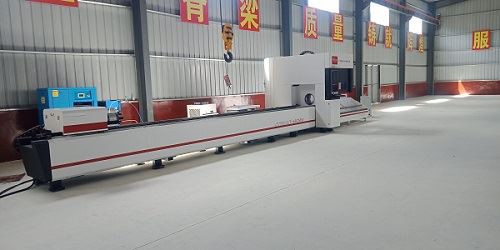

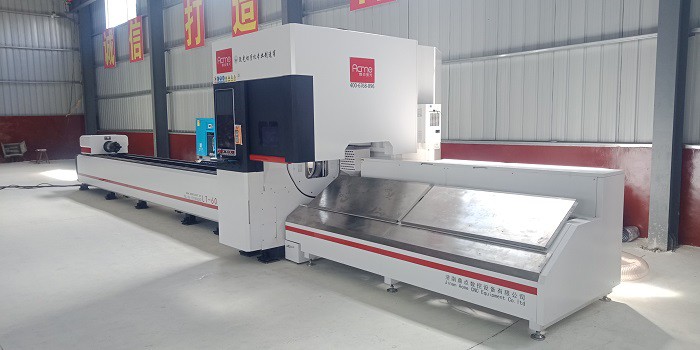

6m tube laser cutting machine with 250mm chuck
6m tube laser cutting machine with 250mm chuck
| ACME LT-6026TF Metal Tube Laser Cutting Machine | |||
| n Technical Parameters | |||
| 1 | Model | LT-6026TF | |
| 2 | POWER SUPPLY | 380V, 50/60HZ (can be customized voltage) | |
| 3 | Pipe Cutting Length | Max.6500mm (feeding manually) | |
| 4 | Pipe Cutting Diameter | 15-250mm | |
| 5 | CHUCK | Type | 8 Cylindes Pneumatic chuck, Auto-Centering |
| 6 | MIN. Tail Length(mm) | ≥35 mm | |
| 7 | MAX. Rotation Speed(r/min) | 100r/min | |
| 8 | Bearing Capacity(Both) | 200kg | |
| 9 | X-axis travel | 860mm | |
| 10 | Y-axis travel | 7800mm | |
| 11 | Z-axis travel | 300mm | |
| 12 | X/Y axis positioning accuracy | 0.05mm/1000mm | |
| 13 | X/Y axis repeat positioning accuracy | 0.05mm/1000mm | |
| 14 | Pipe Feeding Max. Speed (m/min) | 115m/min | |
| 15 | X/Y axis maximum acceleration | 1G | |
| 16 | SUPPORTED FILE FORMAT | .IGS .SAT | |
| 17 | AUXILIARY CUTTING GAS | Oxygen / Nitrogen / Compressed Air | |
| 18 | SEMI-AUTOMATIC FEEDING SYSTEM (Optional) | A model as details info shows | |
| 19 | MAIN MACHINE DIMENSION (within loading system) | 12250*3430*3300mm | |
Avoidance Technology: The chucks consist of two front and rear pneumatic chucks (marked as A and B respectively), both movable along the Y-axis. Chuck A is responsible for feeding, while Chuck B is installed in the middle of the machine bed for clamping materials and can move forward by 800mm, ensuring cutting precision and improving production efficiency.
Short tailings: The middle chuck moves forward to minimize tailing,reducing scrap length to only 35mm ,which is about 50% shorter than that of ordinary double-chuck models.
High-Precision Chuck: The 260-type chuck features a square hole design, offering strong adaptability and a wide clamping range. It adopts eight-cylinder clamping for strong clamping force, rack-and-pinion interconnection for high clamping and positioning precision, and a fully enclosed design for good sealing performance.
Centering and Clamping Device: The centering and clamping device cooperates with the follow-up flat support to assist in automatic blanking, prevent workpiece swinging, reduce manual intervention and ensure operational safety.
Servo Support: Controlled by 3 sets of independent motors, the servo follow-up support can effectively reduce vibration and errors to meet high-precision cutting needs. It has good follow-up performance, is suitable for both small and large pipes, and cooperates with the system for intelligent loading and unloading.
Side-Mounted Machine Bed: The 2-chuck side-mounted laser pipe cutting machine of ACME'S TF-series adopts a side-mounted structure, which has a low center of gravity and enables more stable processing.
