I.Introduction

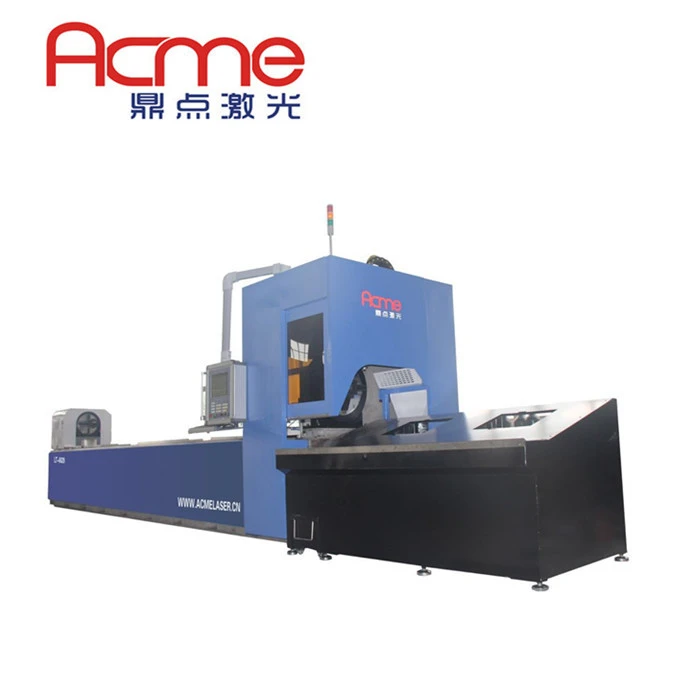

Laser tube cutting machines Acme Laser Tube Cutting machines are designed to cut any hole on tubes of different sections, in a fully programmed automatic cycle, thus eliminating all traditional sawing, deburring, drilling, lining-up and removal operations carried out on conventional machines. |
|
II. Laser Cutting Pipe Type
| Round Tubes and Hollow Section Cutting Capacity Min: 16mm Ø Max: 273mm Ø |
| Square Tubes and Box Cutting Capacity Min: 16mm x 16mm Max: 200mm x 200mm |
| Rectangular Tubes Cutting Capacity Min: 20mm x 15mm Max: 250mm x 150mm |
| Oval/Elliptical Tubes Cutting Capacity Min: 32mm x 17mm Max: 250mm x 125mm |
III. Cutting Thickness Limit
Material | Cutting Thickness Limit |
Carbon steel | 15mm |
Stainless steel | 10mm |
Aluminum | 8mm |
Brass | 5mm |
Copper | 5mm |
IV. Speed Chart
Thickness | Carbon Steel | Stainless Steel | Aluminum |
O2 | Air | Air | |
1.0mm | 450mm/s | 400-450mm/s | 300mm/s |
2.0mm | 120mm/s | 200-220mm/s | 130-150mm/s |
3.0mm | 80mm/s | 100-110mm/s | 90mm/s |
4.5mm | 40-60mm/s | ||
5mm | 30-35mm/s | ||
6.0mm | 35-38mm/s | 14-20mm/s | |
8.0mm | 25-30mm/s | 8-10mm/s | |
12mm | 15mm/s | ||
14mm | 10-12mm/s | ||
16mm | 8-10mm/s |
V. Main Parts
Article Name | Remark |
Fiber laser resonator | 2000W (IPG) |
Servo motor and driver | YASKAWA (Japan) |
Ball screw rod | HIWIN (Taiwan) |
Gear rack | CHINESE |
Laser head | RAYTOOLS (Switzerland) |
Chiller | TONG FEI (China) |
Control system | PA8000 (GERMANY) |
Liner guide | HIWIN (Taiwan) |
Gas Proportional valve | SMC (Japan) or AIRTAG |
Reduction gear box | MOTOVARIO (France) |

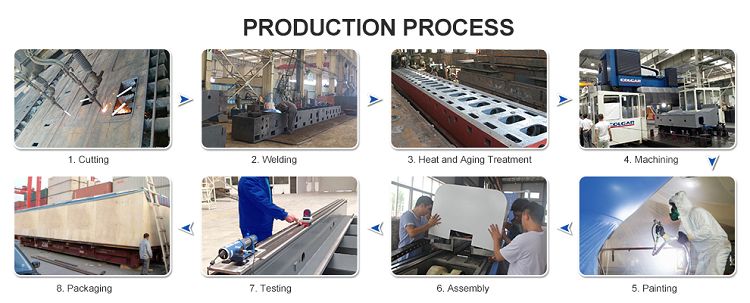

Machine metal body | 16-25MM BED MADE FROM WHOLE SHEET WITH HEAT AND RELEASE TREATMENT |

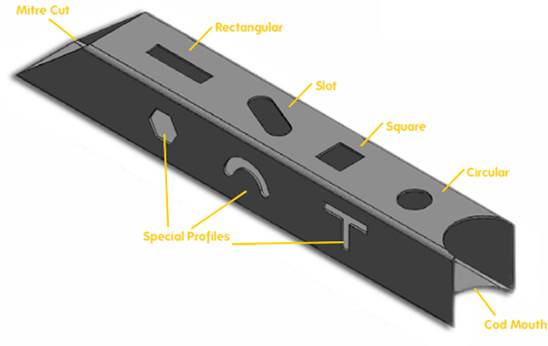

VI.SAMPLES
VII. Quality manufacturing

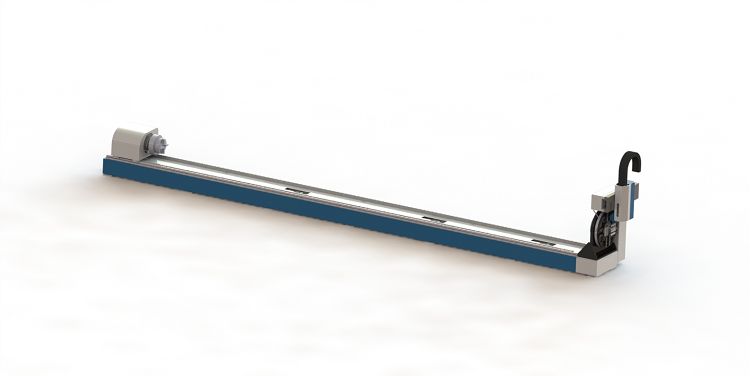

VIII. Other options of tube laser
