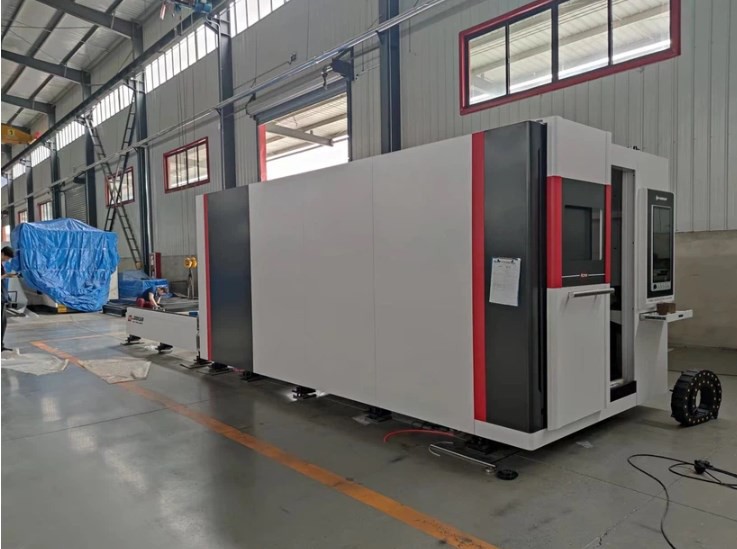

3000w sheet laser cutter
1. Working Area 1500*3000mm
2. Movement: X.Y axis : 3050*1530mm, Z axis: 250mm
3. Laser Power： 3000W Max brand
4. Positioning accuracy: +/-0.03mm
5. Repositioning accruacy: +/-0.02mm
6. X/Y axis -max. movement: 120m/min
7. Max. acceleration: 1.5G
8. Raytools Laser Head BM111 autofocs
9. Control Unit: CypCut; Software: FSCUT 4000E
10. Gear and rack: YYC
11. Taiwan HIWIN Linear Rails (X axis:25mm/ Y axis:30mm)
12. Lubrication method:X/Y/Z automatic
13. Gantry:Cast Aluminum Gantry
14.Servo System, Japan Panasonic EtherCAT motors
1500W*2 sets(Y1,Y2), 1000W*1 set(X), 400W*1 set(Z)
15. 3 separate gas control: O2, N2, Air
16.Proportional Valve:SMC O2 ITV2050 / SMC N2 ITVX2030
17.Electromagnetic valve:SMC O2 / SMC N2
18.One way valve:SMC
19.Indenpent Electrical cabinet with cooling
20. Max. Loading weight: 800kg
21. Protective cover: Rubber curtain on back cover,Safety switch on the front doors,Side doors on cover
22.Exhaust Smoke System :7.5kw Fan+300mm hole diameter
23.Segmented ventilation integrated in machine bed&clamps
24. Chiller: Hanli for 3000W use
25. 2 cameras, Monitoring screen
26.Voltage stabilizer: excluded for now
27. Machine dimensions and weight:8730*2260*2510mm ,6300kg
