Realize the full benefits of fiber laser cutting with ACME, our top-of-the-line system that offers ultra-high-speed processing and high flexibility. Designed to cut as fast as the thermal process allows and is able to process a wide range of ferrous and non-ferrous metals. Touch screen control and user interface make the system easy to set up and operate.
I Introduce & Feature
ACME LP1530FD metal profile cutting machine
1.Double working table, load/unload during cutting , double improve working efficiency.
2.High-performance laser source and stable operating system.
3.The machine owns perfect cooling system, lubrication system and dust removal system, which make sure the machine can operate stable, efficient and durable.
4.Has automatic height adjustment, which keeps the focal length constant, stable cutting quality.
5.Cutting a variety of metal, excellent and stable cutting effect.
II Technical parameters
Laser Source | Germany IPG or Raycus Fiber laser source |
XYZ Working area | 1500*3000 mm*150mm |
Laser wavelength | 1070nm |
Minimum line width | ≤0.1mm |
Location precision | ≤±0.05mm |
Re-location precision | ±0.02mm |
Max. moving speed | 100m/min |
Supporting Format | PLT, DXF, BMP, AI |
Power demand | 380V/50Hz |
Cooling Way | Water Cooling |
Worktable max. load | 1000KGS |
Transmission Method | Ball Screw Transmission |
Table-driven system | Japanese Imported Servo Motor & Driving System |
Focus Method | Following and Automatic Adjust Focus |

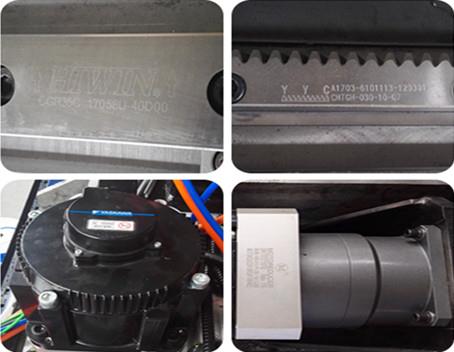

III Machine parts & Cutting sample
Ⅳ ACME Factory
20000 SQUARE METER FACTORY
ADVANCED HIGH PRECISION MILLING CENTER FOR ESSENTIAL PARTS
