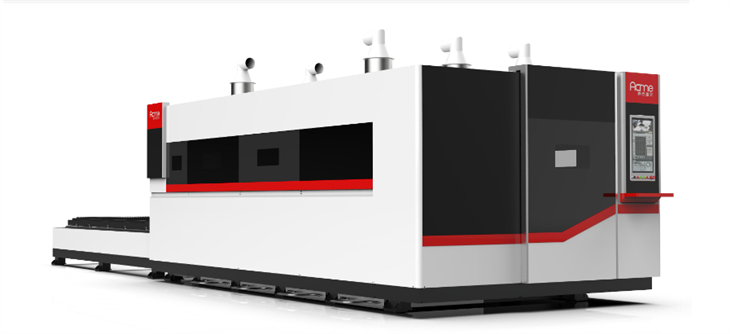

Product Introduction of Sheet Laser Cutting Machine
1. High and low exchange platforms, fast exchange;
2. Large screen split display, capable of real-time monitoring of production processes;
3. Comprehensive protective cover design, safe and environmentally friendly;
4. High power cutting, high efficiency;
5. Efficient dust removal system
Specification of sheet laser cutting machine
| Item | Performance | Parameter |
| 1 | Model | LP3015D |
| 2 | Laser power | 1kw to 30kw |
| 3 | Cutting area | 3000x1500mm |
| 4 | Y axis stroke | 3050mm |
| 5 | X axis stroke | 1550mm |
| 6 | Z axis stroke | 250mm |
| 7 | Position accuracy | ±0.03mm |
| 8 | Repeat position accuracy | ±0.02mm |
| 9 | Table weight loading | 1200kg |
| 10 | Power supply | AC 380V/50HZ |
| 11 | Control system | FSCUT4000E |
| 12 | Auxiliary Gas | Oxygen, Air, Nitrogen |
Advantages of sheet laser cutting machine
01 Bus cutting system
The FSCUT4000E medium power laser cutting system is a highly cost-effective bus laser cutting control system. Easy installation and adjustment
Easy to test, excellent performance, and complete solutions. Using the CypCut interface design, it is simple and easy to use. "Traceless micro connection", "Senseless perforation"
Advanced functions such as these can greatly improve processing efficiency.
02 Medium Power Process Database
Support three-level perforation, segmented or progressive arbitrary combination; Supports flight cutting, frog jumping, compensation, guide wire, micro connection, pre perforation,
Basic processes such as film cutting; Supports capacitor edge finding, manual edge finding, electric focusing, dual exchange workbench, automatic layout, circular tube
Advanced functions such as cutting, power outage memory, QR code, wire cutting, maintenance, etc; Supports advanced features such as cooling points, sharp corner cutting, and release angles
workmanship Support early gas opening and gas flushing;
Support knife lifting, knife retraction, and fine cutting processes; Support air movement and obstacle avoidance, and intelligent judgment of frog jumping; Supports simple scheduling, virtual multi workstation
Automated applications such as scanning code maps.
03 Intelligent Control System
Open loop control system, motion control algorithm; Supports dual drive error detection function
04 Monitoring and Remote Diagnosis System
During the machining process, each blind spot area can be monitored at any time to control the cutting process;
High definition intelligent monitoring system, remote alarm operation
Work without danger;
Remote service is worry free, with professional engineers available at any time;
05 Widely usage
Widely used in sheet metal parts, kitchenware, lighting fixtures, cabinets, sports equipment, elevators, transportation, aluminum alloys, power facilities, etc Industry.
06 The bed is sturdy and durable
The bed bodies used in the company's products are independently developed and processed as a whole. Application of Structural Dynamic Design Principles and Finite Element Method Variations
The bed designed using quantitative analysis technology has excellent dynamic and static characteristics. Made by welding high-quality raw materials and undergoing stress relieving annealing
Rough machining, secondary vibration aging treatment, precision machining of large gantry milling machines, etc. Ensure that the guide rail surface and rack surface are machined in one go
Type, ensuring accuracy. These design and processing methods ensure that the machine tool has excellent seismic resistance, high rigidity, and stability, as well as good toughness
Lightweight, corrosion-resistant, antioxidant, and high processing speed.
 |
 |
 |
 |
 |
 |
|
|
 |
|
|
 |
