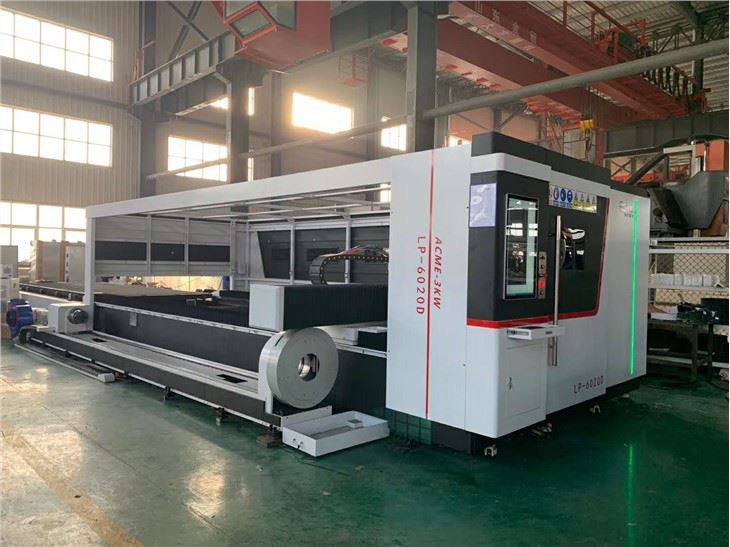

Dual Use CNC Metal Sheet and Tube Fiber Laser Cutting Machine
Laser power: 500W/750W/1000W/1500W/2000W/3000W/4000W/6000W
Tube cutting length: 3000/4000/6000mm, Tube diamter:20-110/170/240mm
Sheet cutting size: 1500*3000/1500*4000/1500*6000/2000*4000/2000*6000(mm*mm)
Machine Features
Open type design for easy loading and unloading.
Single work table or Double exchange work table for metal sheet as option.
Integrated design provides dual cutting functions for metal sheet and tube.
Rotary device auto-centering pneumatic chuck, easy to change tubes due to different diameter.
Gantry double driving structure,cast aluminium beam,good rigidity, high speed and acceleration.
Heavy duty machine structure/body ensure Max. 6000W high power laser soure load.
One machine two use, can both cut metak sheet and tube.
Customized production can be accept, we can do the machine as you required.
Machine Configuration & Technical Parameters
| Laser Source | IPG/RAYCUS/N-LIGHT Fiber Laser Source |
| Cutting Head | Raytools/Precitec Auto-focusing |
| CNC cutting system | CYPCUT |
| Servo Motor | YASKAWA/PANASONIC/FUJI |
| Water Chiller | Hanli/Tongfei |
| Rack and Gear/Guide rail | YYC/Taiwai HIWIN/PMI/T-WIN |
| Reducer/Gearbox | MOTOREDUCER/SHIMPO |
Positioning Accuracy | ±0.03/1000mm |
Repeat Positioning Accuracy | ±0.02 |
Rotary Chuck max rotation speed | 100-120（r/min） |
| Acceleration | Max 1.5G |
| Max.cutting speed | 55 m/min |
Cutting Sample
