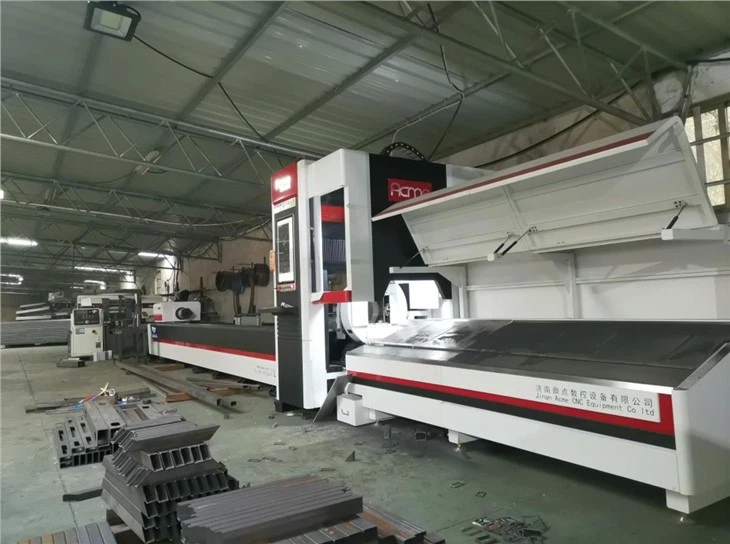

3000W Pipe Laser Cutting Machine

Model

LT-6017ES

POWER SUPPLY

380V, 50HZ±10% (can be customized voltage)

Whole Machine Power

28.8KW

Pipe Cutting Length

Max.6200mm

Pipe Cutting Diameter

16-165mm / 16x16--165*165mm

CHUCK

Type

8 Cylindes Pneumatic chuck* 2pcs, Auto-Centering

MIN. Tail Length（mm）

65mm

Rated Rotation Speed（r/min）

80

MAX. Rotation Speed（r/min）

100

Bearing Capacity（Both）

300kg

X-axis travel

380mm

Y-axis travel

6700mm

Z-axis travel

250mm

X/Y axis positioning accuracy

0.05mm/1000mm

X/Y axis repeat positioning accuracy

0.05mm/1000mm

Pipe Feeding Max. Speed (m/min)

92m/min

X/Y axis maximum cutting speed

60m/min

X/Y axis maximum acceleration

1.2G

SUPPORTED FILE FORMAT

.IGS .SAT

AUXILIARY CUTTING GAS

Oxygen / Nitrogen / Compressed Air

MACHINE DIMENSION

11585x1916x2250MM

G.W.

5000KG

LT-6017ES is designed as professional tube laser cutter.

Cutting tube length 6000mm

Output/receiving platform length 3000mm

Tube diameter 10-240mm

Tube shape: Round, Square, Rectangle, Oval, Angle, Channel steel, H beam and so on.

MAXphotonics 3000W Fiber laser source

2 years warranty time.

More than 100,000 hours life time.

Low Energy Consumption: Save energy and protect environment.

Photoelectric conversion rate is up to 30%

RayTools BM111 Auto-focus

laser cutting head

With Anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system.

Perforation speed is one to two times faster than manual focusing. Perforating speed can shorten the cutting time.

Focusing automatically adjust, can directly import the set parameters in the system, it can be used directly, convenient and quick

Semi-Automatic loading system (optional)

Tube stock and automatic feeding system.

Cutting tube length 6200mm

Tube diameter 10x10-2000x2000mm

Max. Stocking quantity: 15pcs （50x50mm square tube）

Max.Stocking weight: 1400kg

Max.Feeding speed: 38m/min
