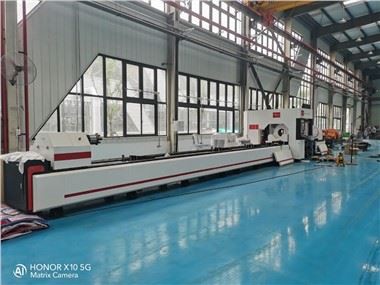

Professional high efficiency metal tube laser cutting machine 4000W LT-12025TF
Special design

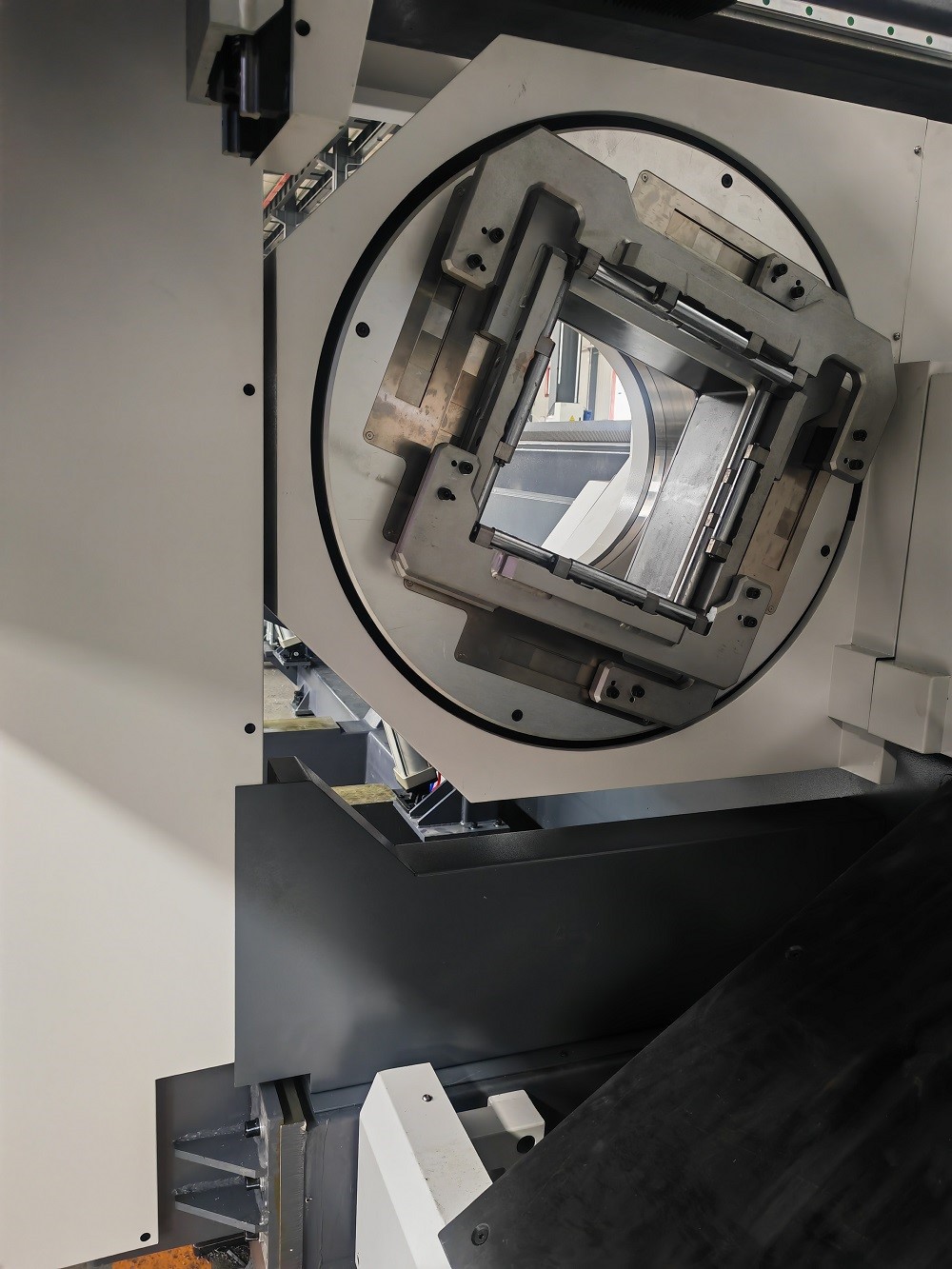

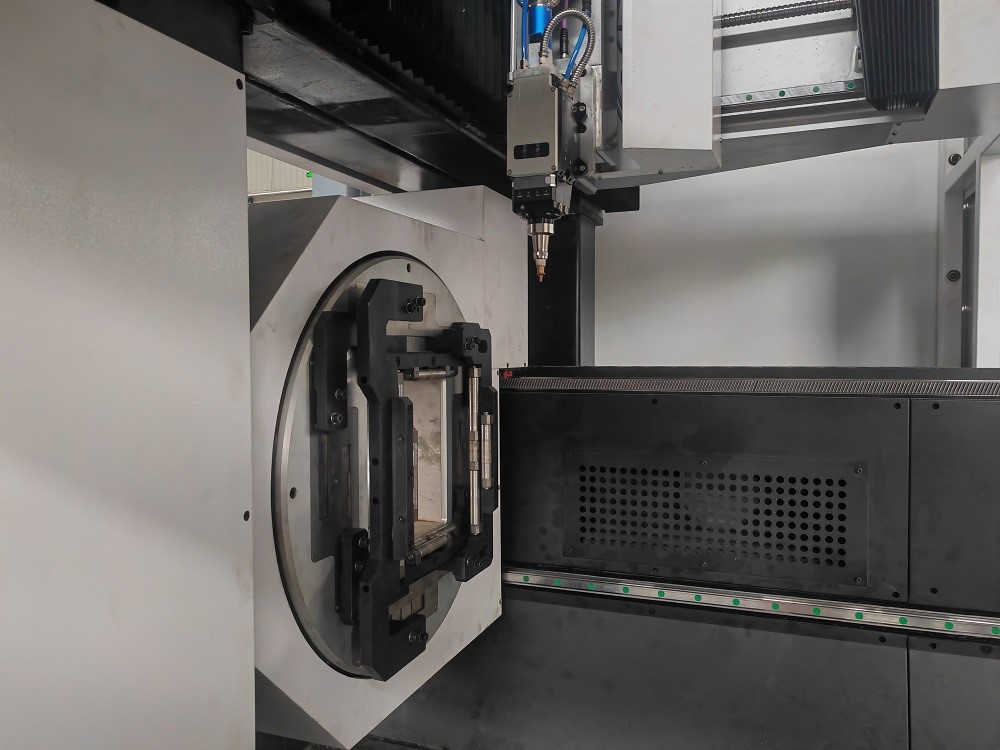

- 2 movable chucks: The front chuck can be moved forward about 850mm-1m length.
Q: What is the advantage for customers?
A: The tube laser cutting machine is with much less materials waste, minimum length of the material can less to 35mm;
The tube laser cutting machine has much higher working precision, especially for long tubes.
The last workpiece can be shorter, improve material utilization rate greatly.
- Chuck on the side of machine frame.
Q: What is the advantage for customers?
A: Machine frame is more steady, more suitable for heavy tubes/profiles cutting processment.
Much easier to load tubes, especially long and heavy tubes/ profiles, suitable for customers from Metal fabrication industry, metal construction industry, etc.

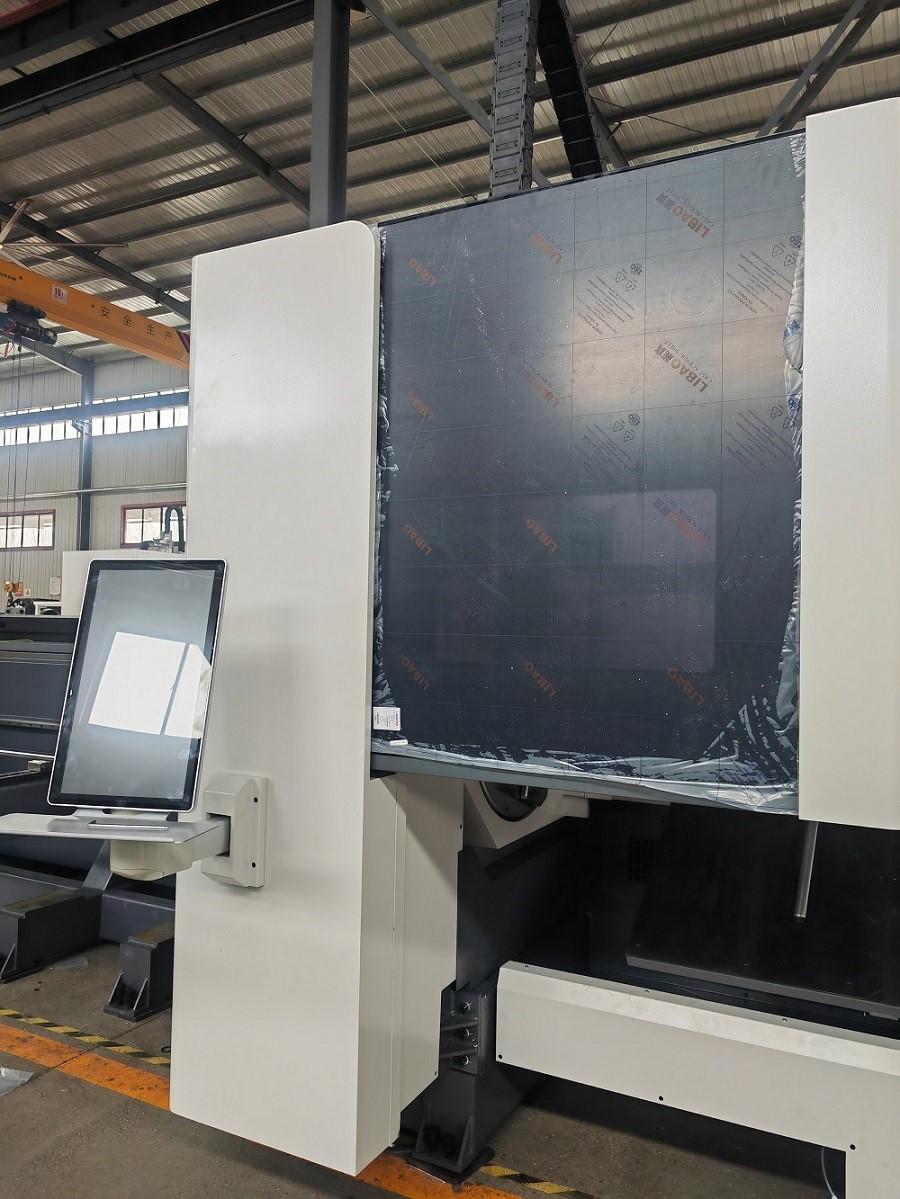

- Big operating screen
Q: What is the advantage for customers?
A: Machine is with the best Chinese control system of laser cutting machines--- FSCUT control system.
Easy to use and learn, humanity design, highly welcomed by customers from all over the world.
- Other parts

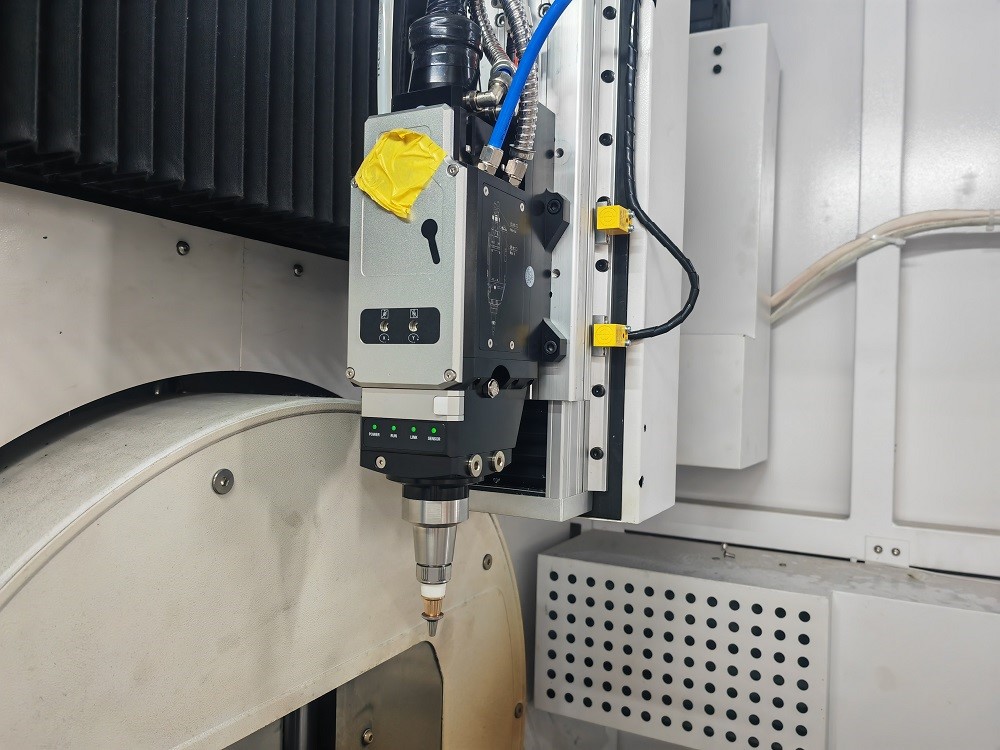

| Laser cutting head- BOCI autofocus | Laser source- MAX/ RAYCUS/ IPG optional |
 |
 |

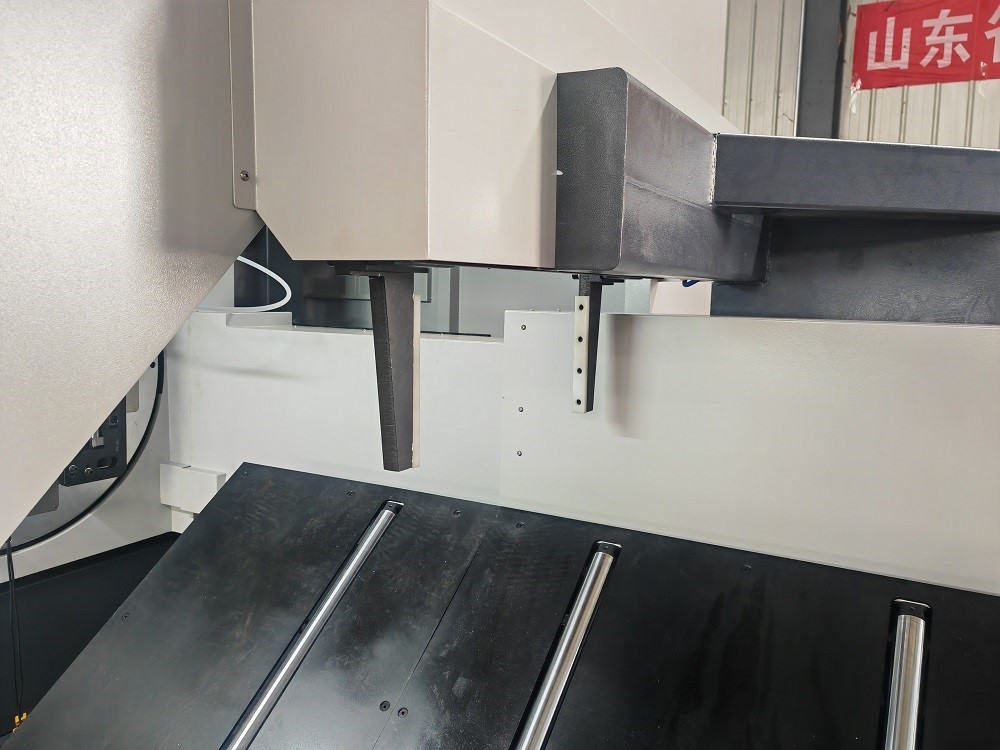

| Front clamping claw for long materials unloading |

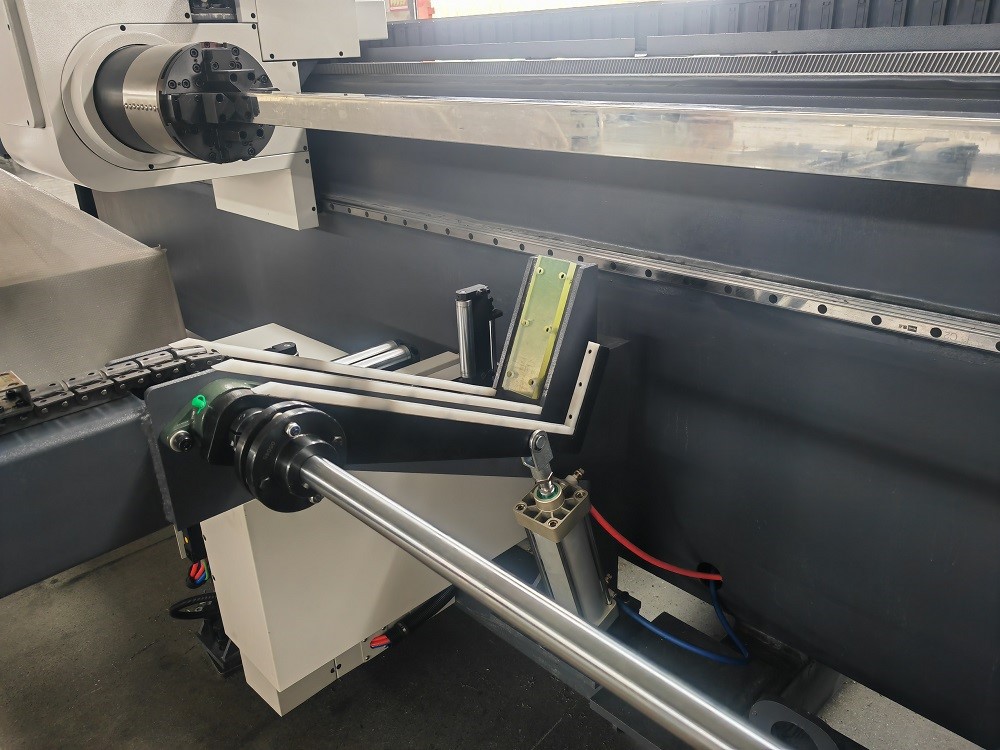

Supporting arm (On automatic loading system, optional part) |
 |
 |
Fiber Laser Tube Cutting vs Plasma Tube Cutting
Fiber laser tube cutting improves production efficiency by integrating multiple processing steps into a single automated workflow, reducing scrap rates and minimizing secondary operations.
Many production companies are upgrading from plasma systems to fiber laser technology to improve output stability, reduce variation in cutting quality, and enhance overall manufacturing efficiency.
1. Cutting Precision
Fiber Laser: High precision, clean edges, minimal burrs
Plasma: Lower precision, wider kerf, more post-processing required
2. Cutting Quality
Fiber Laser: Smooth cutting surface, small heat-affected zone
Plasma: Rougher edge, more heat distortion
3. Efficiency & Automation
Fiber Laser: High-speed cutting with CNC automation and nesting software
Plasma: Lower automation level, more manual finishing often required
4. Operating Cost
Fiber Laser: Lower long-term cost due to reduced waste and secondary processing
Plasma: Lower initial equipment cost but higher post-processing cost
Conclusion
Fiber laser tube cutting has become the leading choice in modern CNC tube processing thanks to its superior accuracy, advanced automation capabilities, and more efficient production performance, whereas plasma cutting is still used in applications where cutting precision is less critical and heavier materials are involved.
