ACME Entry Level Metal Tube Fiber Laser Cutting Machine

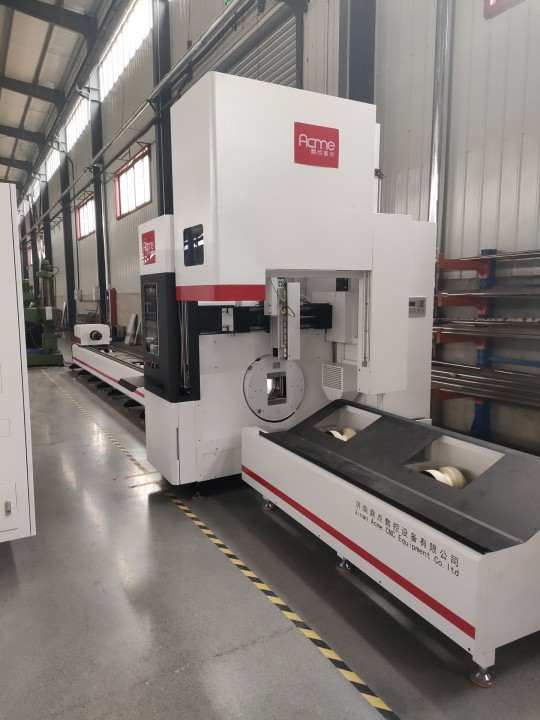

LT-6017D is designed as professional metal tube fiber laser cutting machine
Cutting metal pipe tubes length 6000mm,
Output/receiving platform length 3000mm
Tube diameter 10-165mm
Tube shape:Round, Square, Rectangle, Oval,Angle steel, Channel steel and so on.
Technical Parameters
1 | CONTROL SYSTEM | FSCUT3000S Tube Cutting Control System | ||
2 | SOFTWARE | TubePro Tube cutting software | ||
3 | LASER SOURCE | MAXPHOTONICS 2000W | ||
4 | LASER HEAD | Raytools Swiss Auto-focusing | ||
5 | WATER CHILLER | HANLI China | ||
6 | SERVO MOTOR | Yaskawa Servo Motor, Japan 2000W*1 set (Y) 1500W*1 set (Back Chuck) 3000W*1set (Front Chuck) 750W*1 set(X) 400W*1 set(Z) | ||
7 | REDUCER | SHIMPO Japan/MOTOREDUCER France | ||
8 | GUIDE RAIL | HIWIN TAIWAN | ||
9 | GEAR AND RACK | YYC | ||
10 | TRANSMISSION | HELICAL RACK | ||
11 | ELECTRICAL PARTS | SCHNEIDER France | ||
12 | OIL LUBRICATION SYSTEM | Automatic oil self-lubrication system | ||
13 | DUST EXTRACTION SYSTEM | Exhaust Air Fan | ||
14 | PIPE | CUTTING LENGTH(mm) | 6000 | |
CUTTING DIAMETER(mm) | 10-165mm | |||

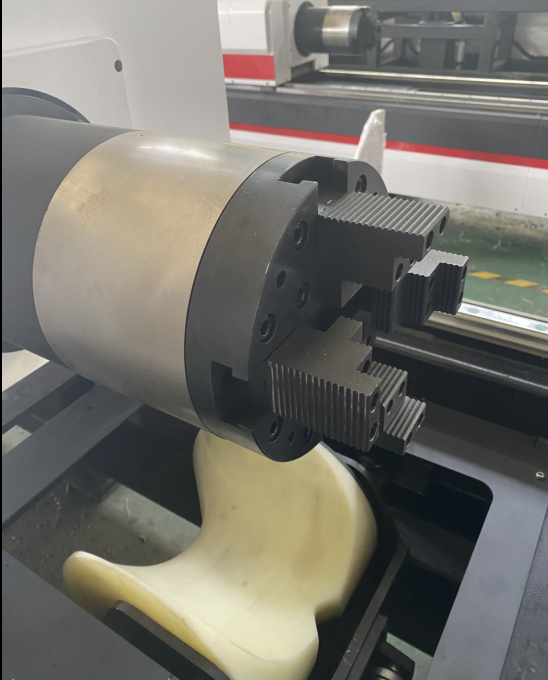

15 | CHUCK | Type | 8 Cylindes Pneumatic chuck* 2pcs, Auto-Centering | |
MIN. Tail Length（mm） | 65mm | |||
Rated Rotation Speed（r/min） | 80 | |||
MAX. Rotation Speed（r/min） | 100 | |||
Bearing Capacity（Both） | 300kg | |||
16 | X-axis | Travel(mm) | 380 | |
No-Load MAX. Speed (m/min) | 90 | |||
17 | Y-axis | Travel(mm) | 6700 | |
No-Load MAX. Speed (m/min) | 90 | |||
18 | Z-axis | Travel(mm) | 250 | |
No-Load MAX. Speed (m/min) | 60 | |||
19 | POSITIONING ACCURACY | ±0.03/1000mm | ||
20 | REPEAT POSITIONING ACCURACY | ±0.02mm | ||
21 | POWER SUPPLY | 380V, 50/60HZ (can be customized voltage) | ||
22 | AUXILIARY CUTTING GAS | Oxygen / Nitrogen / Compressed Air | ||
23 | SUPPORTED FILE FORMAT | .IGS | ||
24 | DIMENSION | Tube cutter: 9965x1450x1720mm Tube cutter with loading system:10868x3275x2133mm | ||
25 | G.W. | 2750KG | ||
Warranty and Installation
Warranty | 24 months for the whole machine (except consumable wearing parts) |
Machine Installation & Training | Method 1: On-line guidance We have professional English speaking engineer team to provide One To One Online Guidance Service for the machine installation, commissioning and operation training. Method 2: Door-door service Our agent can provide the on-door service with the extra charge according to different machine, places and agent standard charges.Normally 7 days can finish. |
After-sale service | Machine installation and Training operators English Speaking Engineers available for oversea services. Consumable parts supply. Life-long free technical support. |
Shipping | 1x40’HQ container |
HS Code | 84561100.90 |
Different Laser Power Cutting Capacity Table
Machine Running Cost
2000W Metal Tube Fiber laser Cutting Machine using cost | ||||
Assisted Gas
Consumption | Option 1: Use compressed clean air cutting | Option 2: Using O2 cutting | Option 3: Using N2 cutting | |
Power Consumption | Laser Module | 6kw | 6kw | 6kw |
Water Chiller Group | 3.3kw | 3.3kw | 3.3kw | |
Host Machine | 8kw | 8kw | 8kw | |
Dust Exhausting Equipment | 3kw | 3kw | 3kw | |
Consumable Part | 2.5RMB/h | 2.5RMB/h | 2.5RMB/h | |
Gas Consumption | 5.5kw | About 6.7RMB/h | About 64RMB/h | |
Total Power | 25.8kw | 20.3kw | 20.3kw | |
AveragePower Consumption （Take 60% ) | 25.8*60%=15.48kw | 20.3*60%=12.18kw | 20.3*60%=12.18kw | |
All Running Cost （Use 1RMB/h) | 15.48+2.5=17.98RMB/h | 12.18+2.5+6.7=21.38RMB/h | 12.18+2.5+64=78.68RMB/h | |
