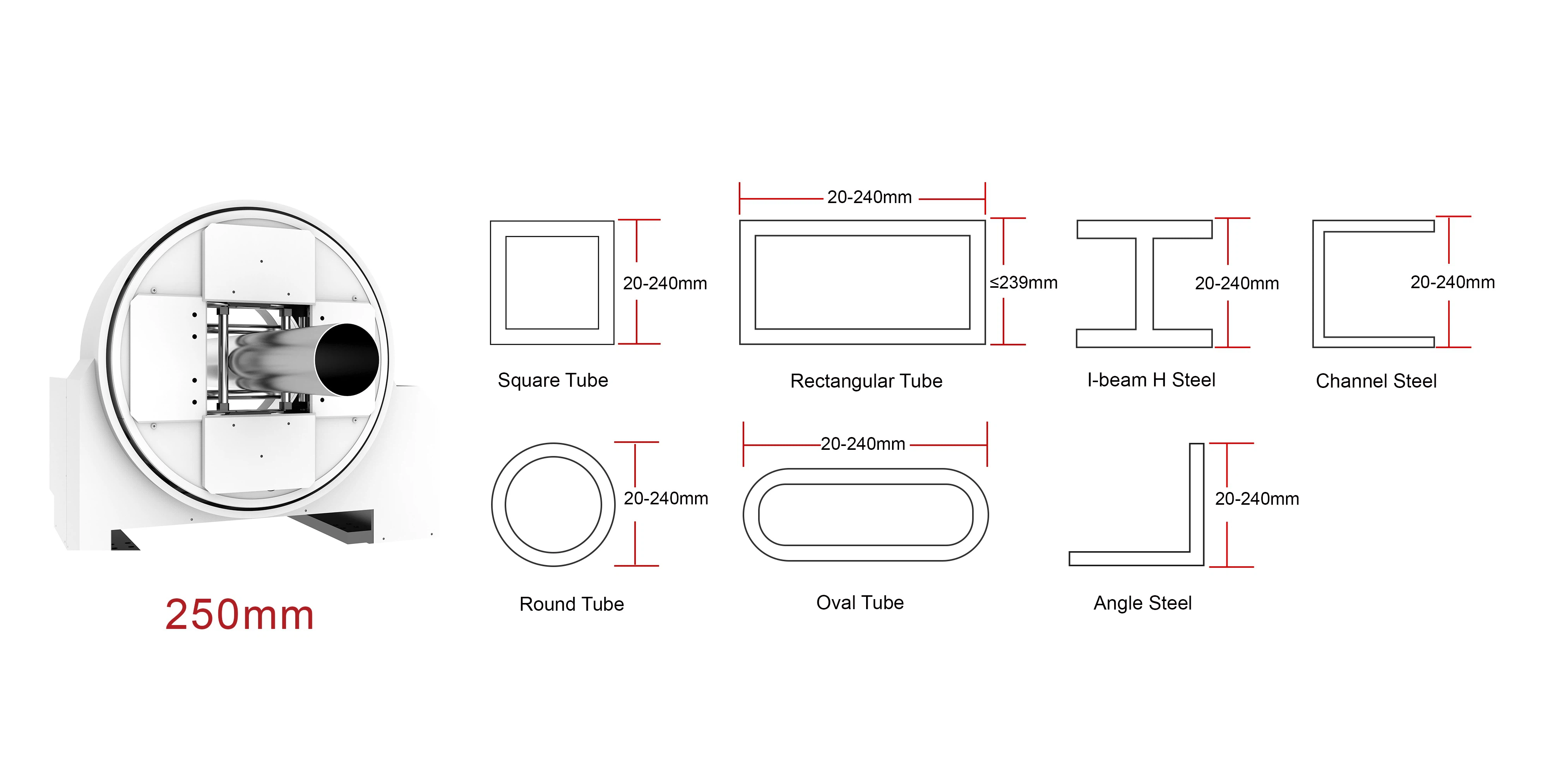

Equipped with 250mm Paneumatic Chuck, which is suitable to process 20-240mm tubes. Chuck Bearing Weight: 350KG. Equipped with Adjustable Wheel Tube Support. Process Tube Types: Round, Square, Rectangular, Oval, Channel Steel, Angle Steel, H Beam etc.
Send Inquiry
Description
Technical Parameters
Laser Tube Cutting Machine
Video for Laser Tube Cutting Machine
Pictures for Laser Tube Cutting Machine
Technical Parameters
No.
Performance
Parameter
Performance
Parameter
1
Item No.
LT-6025E
Repeat Position Accuracy
±0.05mm/1000mm
2
Max. Cutting Tube Length
6300mm
Max. Rotating Speed
85r/min
3
Cutting Tailing
≥0mm
Max. Acceleration
1.0G
4
X Axis Travelling
800mm
Chuck Bearing Weight
350KG
5
Y Axis Travelling
7300m
Max. Feeding Speed
60m/min
6
Z Axis Travelling
400m
Auxiliary Gas
Oxygen, Nitrogen, Air
7
Position Accuracy
±0.05mm/1000mm
Power Supply
380v50Hz±10%
Main Configurations
China CypCut FSCUT3000S Cutting Control
System
Support real-time deviation compensation of the tube
core, reduce the clamping requirements of the tube,
and greatly improve the perforation accuracy.
Support angle steel, channel steel cutting.
Support to set up a separate corner process to
improve the cutting quality of pipe corners.
Support automatic loading and unloading and
cyclic processing, support standard automatic
feeding action.
OSPRI LC40 Laser Head
Compatible with standard QBH.
All-optical and body water cooling.
Three protective mirrors are strictly dust-proof.
Applicable power 3000W.
Light weight, small size, cost-effective.
Raycus Laser Source
Excellent beam quality.
High power stability.
Power continuously adjustable.
Maintenance-free operation.
High electro-optical conversion efficiency.
ACME 250mm Pneumatic Chuck
Square hole design, stronger passing ability.
The clamping range of full stroke, without
manual adjustment.
With an eight-cylinder structure, the clamping
force is twice that of ordinary chucks.
The highest level of dustproof, stronger stability.
The lengthened design of the rear chuck allows the front chuck to achieve "zero tailing" cutting with two chucks.
It can effectively clamp various shapes of profiles, such as: square, round, rectangular, oval,
channel steel, H steel, angle steel etc.
Adjustable Wheel Tube Support
Equipped with a adjustable wheet tube support
mechanism with multiple rotatable wheels. The lifting
mechanism can realize pneumatic control and
automatic lifting. When the processed pipe changes,
